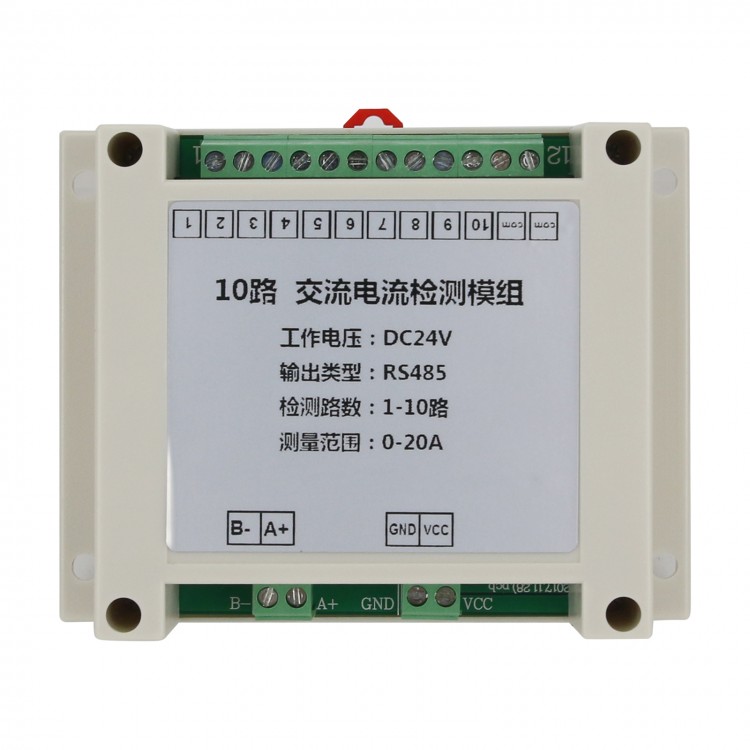

Multichannel AC Current Transmitter RS485 Acquisition Module 10 Channels Current Detection Module 10A

Multichannel AC Current Transmitter RS485 Acquisition Module 10 Channels Current Detection Module 10A

Specification:
Power supply: 24VDC ±10%
Current consumption: <60mA (at 24V power supply)
Power loss: <1.5W (at 24V power supply)
Signal input: transformer signal input (please specify if different ranges are required)
Acquisition instructions: recommended use of less than 500 V, 50 Hz frequency AC
Detection accuracy: ±2.5% (MAX)
Temperature drift: ±0.02%/℃
Response time: data response time <0.05s
Data refresh: the time to complete a data refresh is 0.1 seconds
Communication distance: <1000 meters
Communication format: 9600, 8, n, 1
Working environment temperature: 0~65℃
Appearance size: length 115 × width 90 × height 40 (mm)
Shell material: top cover ABS, bottom shell ABS, snap POM
Device address: 1~247, the default is 1, 0xfa is a general address
Installation method: rail installation

Communication Description:
Due to precision and data requirements, the registers here use floating-point types. (Floating-point data is 32 bits, which takes up four bytes altogether)

According to the ModBus-RTU protocol, each terminal has an address, which is modified by the 06 function code of modbus-RTU. The default address is 1, and the modified address range is 1~247, where 0xfa is the general query address (read unknown address data), modify unknown address data, bear in mind that this address can only be used in a single operation, forbid online reading data and modifying address).

Package List:
-1 x Current Detection Module
-10 x Transformer

Note: The RS485 communication line must not be connected to VCC and GND. Although RS485 can shield the instantaneous high voltage electromotive force, if the A+ and B- sections of RS485 are misconnected to VCC and GND, the 485 chip will be burned! Please connect first, and then check the connection is correct, and then power the module.
