Multifunction Timegrapher NO.5000 Watch Timing Machine Calibration Tools

Multifunction Timegrapher NO.5000 Watch Timing Machine Calibration Tools

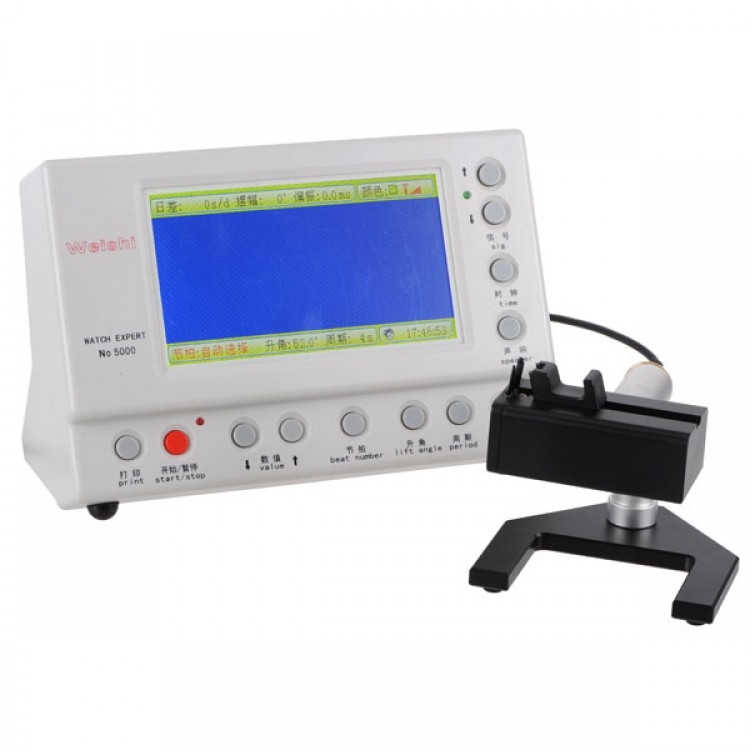

The WEI SHI WATCH EXPERT NO.5000 is a precise mechanical watches test instrument, It is used for multi-testing by watch manufacturers and watch technician.The frequency diagram of watch can be displayed in the LCD screen, and the color can be selected in five kinds of model. The instrument will automatically calculate the rate, amplitude, beat error, and display them by data in the screen.The sampling period can selected by two seconds,four seconds, six seconds, eight seconds, 10 seconds, 20 seconds, 30 seconds, 60 seconds, and the average of corresponding period will be regard as the precise value of the watch.Six kinds of test position can be set,the simulation sound can be set to audio or mute. Equipment also has its own clock display, used to facilitate checking the time of watches.

This timing machine will automatically calculate in real time for the following:
- Beat rate
- Amplitude
- Beat error
- Beat number

Power supply voltage is 100V-240V.

Automatic selection are available for the most common beat: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200
Manual selection are available for the following beat: 3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

Specifications:
- Measuring possibilities: Rate deviation,amplitude,beat error of mechanical watches and diagram recording of the beat noise.
- Beat number: Automatic determination of all common beat number,Manual selection for less common beat number.
- Rate deviation measurement: the range of deviation is  ± 999 sec / day,precision 1.0 sec/day.
- Amplitude measurement: Numerical display in degrees,resolution is 1°,measuring range: 100°to 360° (the lift angle can affect the amplitude,range: 30°to 70°.Under normal circumstances,the amplitude value do not exceed 360°.)
- Measuring  period times for the average numerical results: 2 s, 4s, 8s, 10s, 20s, 30s, 30s, 60s.
- Measruing for the beat error (frequency error):Numerical display in milliseconds.Resolution is  0.1 milliseconds, the measuring range is 0-9.9 ms.
- Lift Angle:the measuring range is 30 ° to 70 °, the factory set it to 52 °.
- Supply voltage: single-phase AC 100 V～240V ± 10% two-line.
- Measuring  position: 1 to 6 position.
- Color graphic: blue, white, yellow, green and black five kinds of color.
- Use of the environment: 0 ℃ to 50 ℃, relative humidity:0 to 80% RH
- Shell: light grey plastic
- Dimensions: 260×11×168mm
- Weight: 900g
