Multifunctional JTAG HS2 FPGA Downloader with Micro-AB USB2 Interface Debugger Programmer 410-249 for Digilent/Xilinx

Multifunctional JTAG HS2 FPGA Downloader with Micro-AB USB2 Interface Debugger Programmer 410-249 for Digilent/Xilinx

Description:

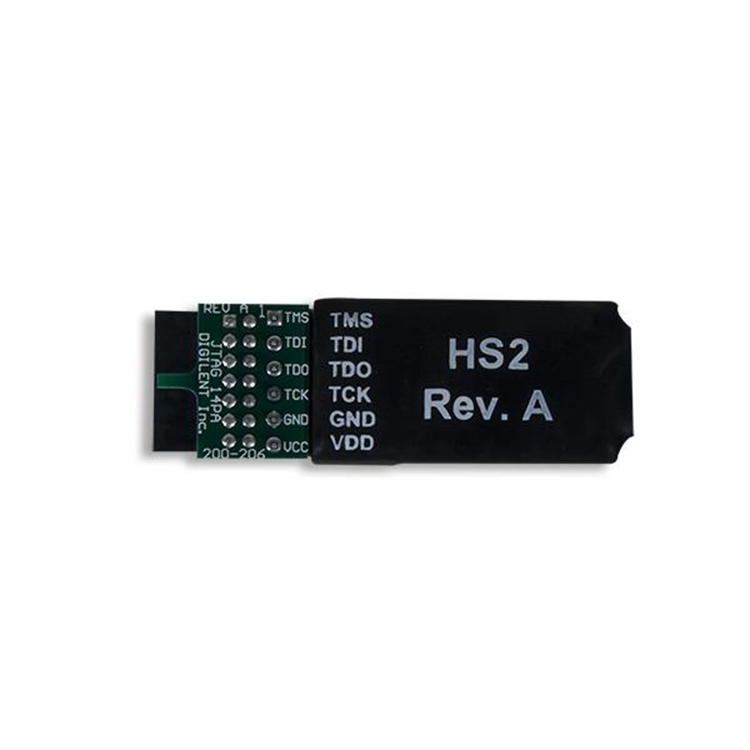

- JTAG-HS2 programming wire is a high-speed programming solution designed for Xilinx FPGA. The wire is fully compatible with all tools for Xilinx and can be driven seamlessly by software for iMPACT, ChipScope and EDK. The JTAG-HS2 programming wire can be connected to the target board in the following two ways:
  For Digilent's 6-pin, 100mm spacing programming connector.

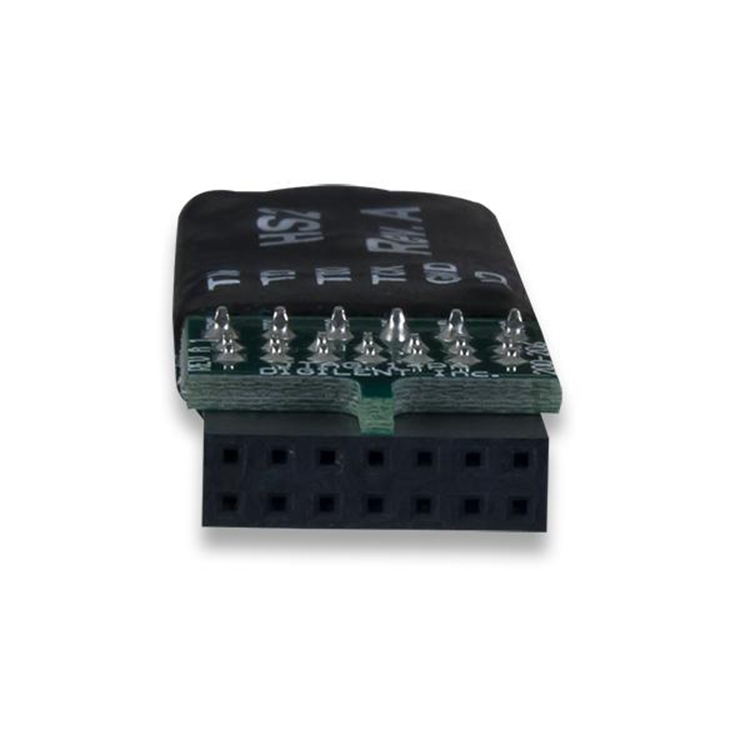

  For Xilinx 2X7, 2mm connector with attached adapter.

- The PC powers the JTAG-HS2 through a USB port. When the JTAG-HS2 is connected to a PC, the PC will automatically recognize it as a Digilent programming wire, even if the wire is not connected to the target board. JTAG-HS2 has a separate VDD pin to provide JTAG signal buffering. All JTAG signals use 24 ma high-speed tri-state buffers, supporting signal voltages from 1.8V to 5V and bus speeds of up to 30 megabits/SEC. To ensure proper operation, the VDD pin voltage of the JTAG-HS2 must be consistent with the voltage driving the JTAG port on the FPGA.

- When a JTAG signal is available at high electrical impedance, the JTAG bus can be shared with other devices (unless the JTAG bus is actively driven during programming). The JTAG-HS2 product comes with A Type-A to micro-USB cable that can be connected to the module end on the opposite side of the motherboard connector to ensure that the small and light JTAG-HS2 can be securely connected to the motherboard connector.

Precaution:
- Due to the built-in functionality of this module on all Digilent FPGA development boards, it is not necessary for Digilent FPGA development boards to use this module.

Product Data:
- Processor/IC: for Analog Devices ADP123AUJZ Linear voltage regulator
- Connector: USB2 Micro-AB
- Programming: support all programming tools for Xilinx. It is fully compatible with Digilent Adept software and Adept SDK

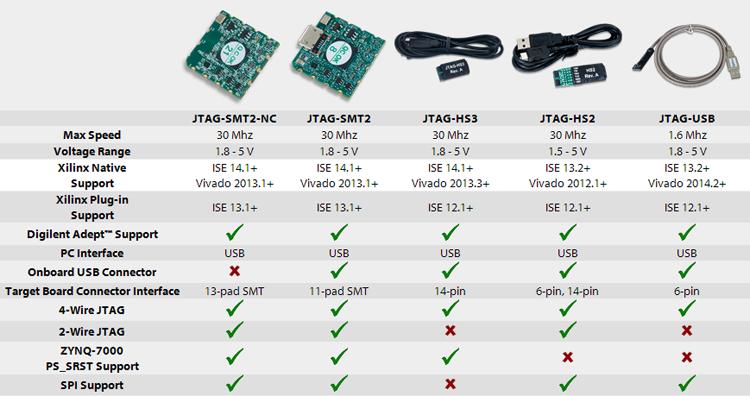

Product Features:
- Analog Devices ADP123AUJZ Linear voltage regulator
- For Xilinx FPGA JTAG programming/debugging solution with small size, complete function and multifunctional integration
- Compatible with all tools for Xilinx
- Compatible with IEEE 1149.7-2009 Class T0-Class T4 (including 2-wire JTAG)
- Independent reference voltage to drive JTAG signal voltage; The reference voltage can be between 1.8V and 5V
- High-speed USB2 interface that can drive the JTAG/SPI bus at up to 30Mbit/SEC
- The JTAG/SPI frequency can be set by the user
- The Micro-AB USB2 interface is used
- SPI programming solution (up to 30Mbit/ SEC after classes in modes 0 and 2, up to 2Mbit/ SEC in modes 1 and 3)
- Fully compatible with Digilent Adept software and Adept SDK to create custom JTAG/SPI applications

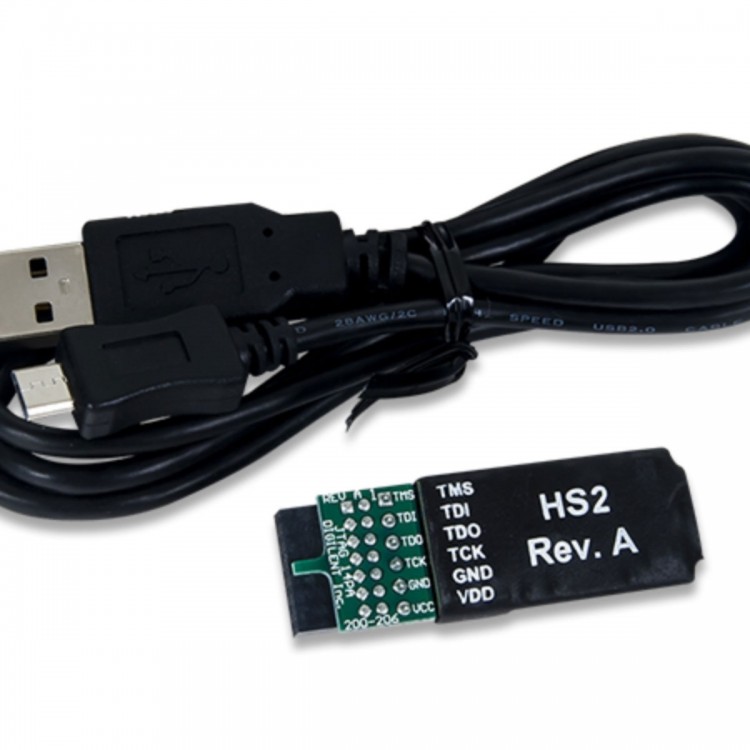

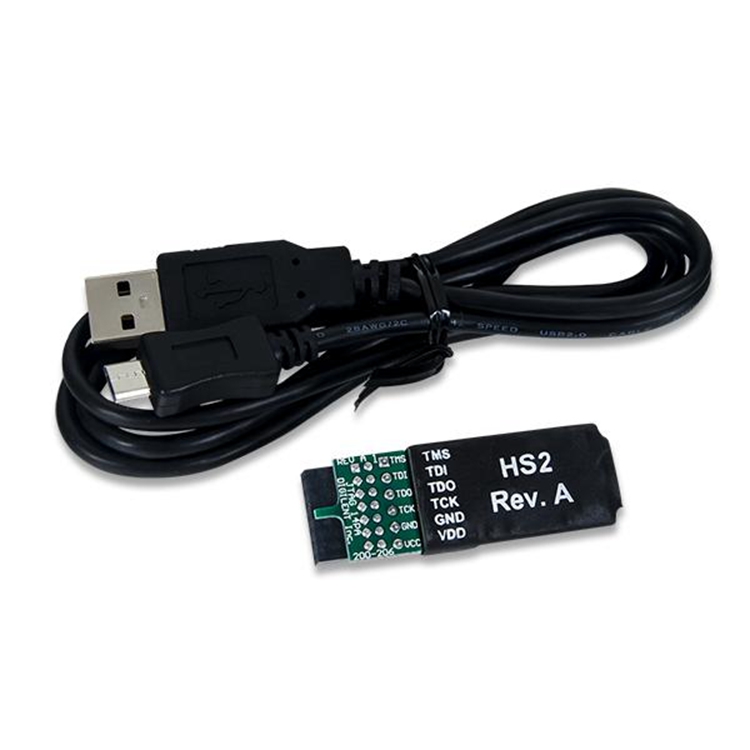

Package Included:
- 1 x Debugger Module
- 1 x USB Cable
