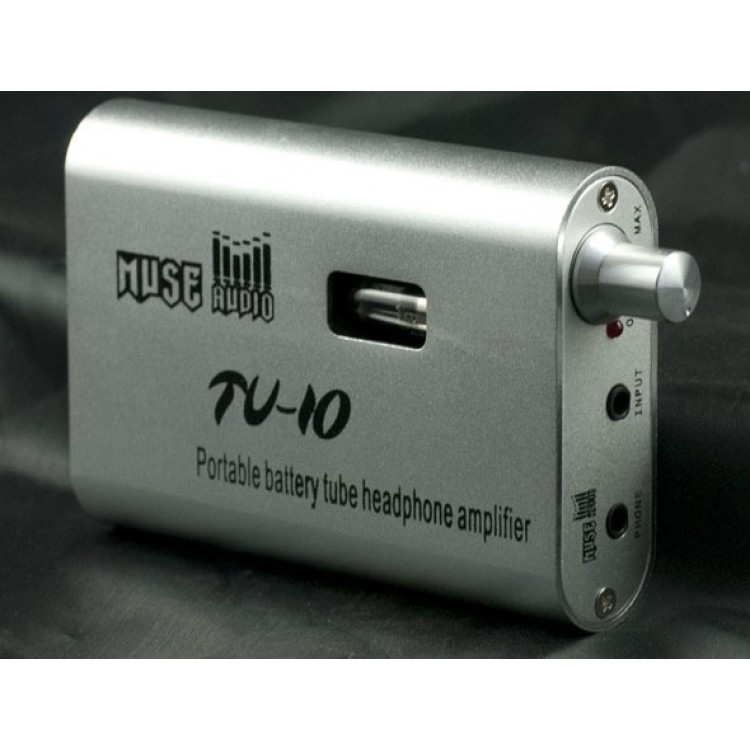

Muse TU-10 Portable Battery Tube Headphone Amplifier Pre-amplifier/Built-in Lithium Battery/Tiny Tube Headphone Amplifier

- Muse New bravery product!!!
- Portable tube headphone amplifier, the demision is only 10cm X7cm X2.3cm (Length XWidth X Depth)(The measurement doesn't include the knob size.),including the battery which contains large capacity polymer it is only 190g in weight!
- Super low voltage work:safe & reliable, don't worry that you might get an electric shock
- Lithium batteries:enough power supply.
- 3 hours cruising,the Actual situation with machine: clear voice,High resolving power,details performance skillfully,high frequency sounds mellow,neither too high or too boring.medium frequency sounds pure.Low frequency sounds good-nature,resistance to listen to but not turbid. The whole voice sounds pure, Ryan and Sharpay.Symphony performances well,the sound of each instruments can be reconised clearly.
- Internal adopts miniature American tube 6111 or 6021.
- Suitable for LOW ESR earphones(performs well with 600 ohm( DT990 in test.)

Application:
- Connect MP3:Headphone socket:3.5mm socket Input socket:3.5mm socket: Easy to connect to MP3 directly
- Connect CD:when you connect to CD,you could use 3.5mm to RCA socket connection cable.
- Use as Pre-amp:Cane be used as pre-amplifier:connect the power amplifier from the headphone input socket.

Materials in selection:
- Gold-plated input/output socket
- NE5532 amplifier
- Nichicon electrolytic capacitor
- Precision rings resistance.
TU-10 is a tube headphone amplifier, the sound feels warmer than transistor products. it has built-in battery protection circuit. It powers off after is is fully charged automatically, Can realize the use of human intelligence.

Direction for use:
- CD/MP/MD:connect the LINE OUT/PHONE OUT signals to TU-10 INPUT socket by RCA to 3.5 audio cable.
- Switch & volume control share the same knob:Please rotate the VOL Knob to the left,then plug in your Headset/earplugs to HEADPHONE socket.
- Turn on your media player, and tune VOL knob from left to right till the volume is suitable.
- Turn off: When you do not want to listen, please take off the headphone,turn down the volune till the machine is powered off.

Buyer's Notes:
- Please charge it only when it's power off. Or it will affect the Charge balancing of the 2 Lithium battery so that you might be unable to charge it.
Please pulled out the power supply while using it!
- Storage: Please keep it  fully charged before storage if you do not use it for a long period. Be sure to charge it every 3-6months,Empty electricity stored isforbidden!
- If it is ran out of electrisity, the volume will become smaller, please charge it in time.
It's better to avoid charging it till it's completely ran out of electrisity!
- Power supply indicator:The indicator light is red during charging, it turns green while the machine is well charged. The average charging time is 1-3 hours.

Performance parameters:
- Frequency response range:0-100K-0.1dB
- Output power:500mW
- SNR:99dB
- Suggest load impedance :16-600 ohm
- Size:100*69*23 mm1(Length XWidth X Depth)(The measurement doesn't include the knob size.)
Reference data for 6111:
(A type Amplified state)
- Heater voltage:6.3V
- Heater current:300mA
- Anode Voltage: 100V
- Cathode resistor: 220ohm
- power amplification factor:20
- Anode essential resistance:4000 ohm
- Transconductance:5000um/s
- Anode circuit:8.5mA
- Grid voltage:-9V
(Absolute rating):
- Anode voltage:150V
- Negative grid voltage:55V
- Anode dissipation power:0.95W
- Anode circuit:22mA
- Grid circuit:5.5mA
- Peak voltage between Heater and cathode:200V
- Grid-leak resistance:1.1M ohm
- Bulb temerature:220°c

Package included:
- 1 X TU-10 Muse portable tube headphone amplifier
- 1 X 12V power supply(AU/EU/UK/US optional)
- 1 X 3.5mm Male to Male cable(Free for gift)
