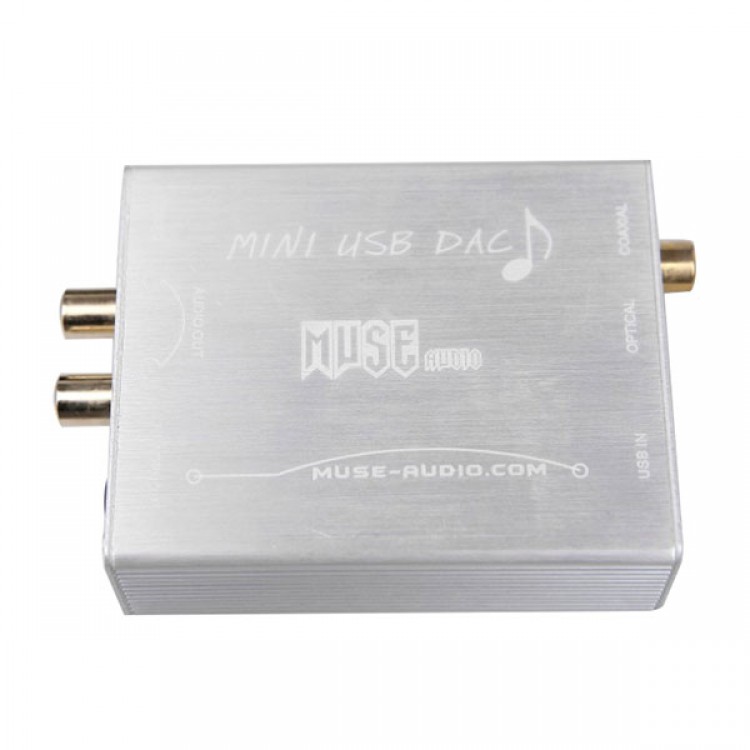

MUSE Z5 HIFI USB to S/PDIF Converter USB DAC PCM2704 Sound Card Optical Coaxial Silver

MUSE Z5 HIFI USB to S/PDIF Converter USB DAC PCM2704 Sound Card Optical Coaxial Silver

Features:
- Compact, easy to carry, including input and output jacks size only: 100 * 66 * 27mm!
- All functions, with analog outputs, coaxial / optical digital output, headphone output, you can output to headphones, directly as a USB sound card, can also be output to the amplifier, computer integrated sound card as an upgrade product, you can connect a decoder, the sound is sent back to the optimum level.
- Using a fever circles acclaimed USB chip PCM2704.
- coaxial and optical signal IC shaping high-speed data, the output signal is more stable, pure
- The digital output signal through a digital isolation transformers fever DV709 filtering, another sound more pure.
- All components are audiophile grade components production, resistance to Japan KOA colored ring precision resistors, electrolytic capacitors are ELNA audio-specific fever capacitor capacitance Promise Siemens MKT series, analog output and coaxial output with gold interface, optical head using protection with automatic door model, the use of more convenient.
- Use secure USB B-type, send high-quality USB cable, without power, plug and play.
- Surface font using expensive laser engraving, never fade

Specific:
- Supply voltage: 5 V (USB powered),
- Distortion: THD + N: 0.006% (RL> 10 kΩ)
- Distortion: THD + N: 0.025% (RL = 32 Ω)
- SNR: 98 dB
- Dynamic range: 98 dB
- Headphone Output Power: 12 mW (RL = 32 Ω)
- Supports sampling rates: 16Bit 32k, 44.1k, 48k
