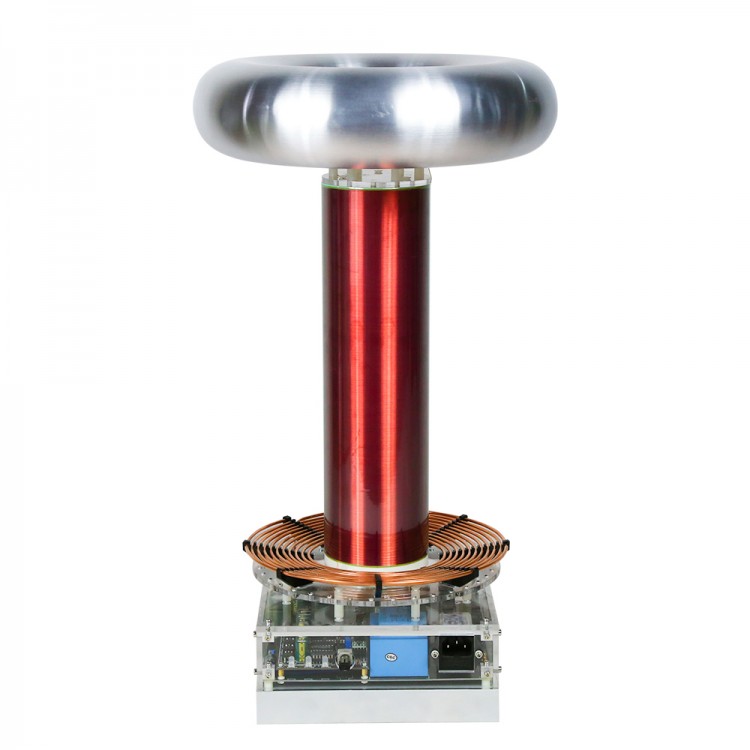

Music Tesla Coil Integrated Full-Bridge DRSSTC Tesla Coil DIY High-Tech Toys Artificial Lightning

Music Tesla Coil Integrated Full-Bridge DRSSTC Tesla Coil DIY High-Tech Toys Artificial Lightning

Product Information:
- Item name: integrated full bridge DRSSTC
- Voltage: 220v, discharge voltage above 500kv
- Current: 2-5A
- Size: 20*20*54cm
- Product weight: 8kg

Precautions:
1. The power supply voltage and power of the product cannot be changed privately;
2. It is strictly forbidden to connect wires without authorization;
3. Please operate carefully according to the requirements.

Original Design Intention:
- It is the first Tesla coil in our shop using a full bridge, with higher power and better viewing effects. At the same time, we reduce operating steps, making operation simple and convenient, and it can be used without professional skills. This product does not require a grounding wire, eliminating inconvenient grounding.
- Adopts original dual-totem phase-shifting drive, which boasts low delay and high efficiency, effectively preventing the explosion of tubes.
- Coil diameter and length are accurately calculated. Not only is visually beautiful and has excellent texture, the resonance frequency is also accurately fixed to 200khz. Use 0.2mm oxygen-free copper enameled wire to reduce resistance and heat generation. It can be used for a long time.
- Arc extinguishing module has its own battery, no need to connect to a charger or usb power supply, the volume is the size of 2pcs 18650, the operation is simple and convenient.

Technical Key Points:
- Dual totem phase-shifting driver board, low delay, high efficiency, protect igbt
- Full bridge power circuit
- Optical fiber signal transmission, long distance, anti-interference
- Drive arc extinguishing isolation design, safe to use and simple to operate
- No ground wire, small size, strong structure, easy to carry
- 220v power supply
- 70cm arc discharge distance
- 3.5mm audio interface

Read Before Purchasing:
- For transportation safety, we will remove the coil and equalizing ring when shipping. After receiving the product, please assemble it according to the instructions, otherwise all damages will be borne by the buyer. (The installation is very simple, but it must be operated as required)
- Please not directly touch the coil or equalizing ring at any time after the product is powered on.
- The product safety distance is at least 2-3m. Patients with heart disease or with cardiac pacemakers should keep a distance of more than 8m.
- It is recommended to pause for a while to wait for the product to cool down when it works about 10 minutes with high power. If it is not used with high power, the time of each use can be extended.
- Please not place any conductive objects within 50cm of the coil! Avoid arc hitting the secondary coil and cause damage.
- It must be ensured that the arc extinguishing potentiometer is at position 0 when turns on/off.

Use Method:
- First assemble the coil and equalizing ring according to the instructions, and tighten a few nuts.
- Fix the discharge needle on the top of the equalizing ring.
- Connect the arc extinguishing module and the main body of the product with an optical fiber cable.
- Turn on the arc extinguishing module and check whether it works normally. If it works normally, turn the knob counterclockwise to the end, and then turn off the arc extinguishing.
- After connecting the 220v power supply to the main body, it can be used. The safety distance of the equipment is more than 2-3m. Patients with heart disease or with cardiac pacemakers should keep a distance of more than 8m.
- Adjust frequency and knob to get a required arc length.

Package Included:
- 1 x Set of Tesla Coil
