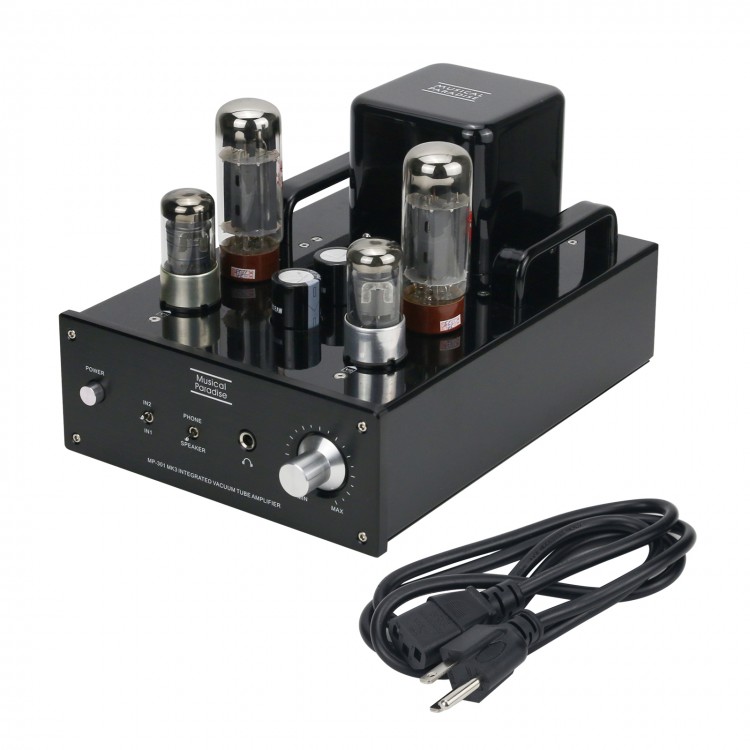

Musical Paradise MP-301 MK3 Integrated Vacuum Tube Amplifier Headphone Amplifier EL34 + 6J8P Tubes

Musical Paradise MP-301 MK3 Integrated Vacuum Tube Amplifier Headphone Amplifier EL34 + 6J8P Tubes

Features:
Circuit Configuration
Single-ended Class A, zero negative feedback, self-biased design, and the tubes are plug and play.

Power Supply
It adopts imported Z11 EI iron core power transformer, high-quality filter capacitors for Nikon and for Rubycon, and high-quality filter inductor to ensure pure power supply.

Output Transformer
Imported Z11 EI iron core, oxygen-free copper enameled wire is wound in multiple layers.

Electron Tube
The pre-amplifier tube adopts 6J8P (6SJ7) pentode tube for audio amplification. Optional EL34/KT88 power tubes provides 7W (RMS) output power per channel.

PCB Circuit Board
Adopt advanced full-line immersion gold process FR4 glass fiber board to ensure excellent current transmission performance and oxidation resistance.

Components
Adopt high-quality American resistors for DALE, Swedish coupling capacitors for RIFA, for Dutch Philips, for Japanese Nikon, for Rubycon filter capacitors, and Japanese volume potentiometers for ALPS.

Headphone Output
Provide 55 ohm 1W, 300 ohm 200mW, 600 ohm 100mW Class A output power. Headphones for AKG 701, 702, 712, 812 are recommended. Headphones for Sennheiser HD600, 650, 700, 800 are recommended. For Beyerdynamic DT880, DT990, T90, T1, HIFIMAN HE560, HE6, Audeze LCD-2, LCD-3 and other high-impedance headphones can be used.

Speaker Output
Support 4-8 ohm speakers, support 6L6, 5881, (807+ conversion base) power tube (provide 6.5W per channel), support KT66, KT77, EL34, KT88 power tube (provide 7W per channel), gold-plated output terminal , Support banana plug, Y plug, and direct twisting.

Appearance
The box body is made of high-strength steel plate, and the panel and knobs are made of solid aluminum alloy material CNC. The simple panel design allows you to learn how to use it in just a few minutes without pre-reading the manual. Volume: 20x26x16cm/7.9x10.2x6.3" (WxDxH). Weight: 10KG.

Sound Characteristics
The sound is vivid and natural, smooth and delicate, hard to hear without burrs. The sound field is wide and the three-dimensional effect is strong. The low frequency is flexible enough, the middle frequency is sweet and moist, and the high frequency is slender and smooth.

Frequency Response, THD
20-20Khz, <1%.

Recommended Matching Loudspeaker Boxes
For KEF Q100, Q300. Musical Paradise MP-S1 MK2. For PSB Alpha B1, Imagine Mini. For JBL 4412M. For Focal 7 series and others with sensitivity above 87DB.

Package Included:
- 1 x Set of Tube Amp

Note:
- It is assembled and ready to use.
