Description:

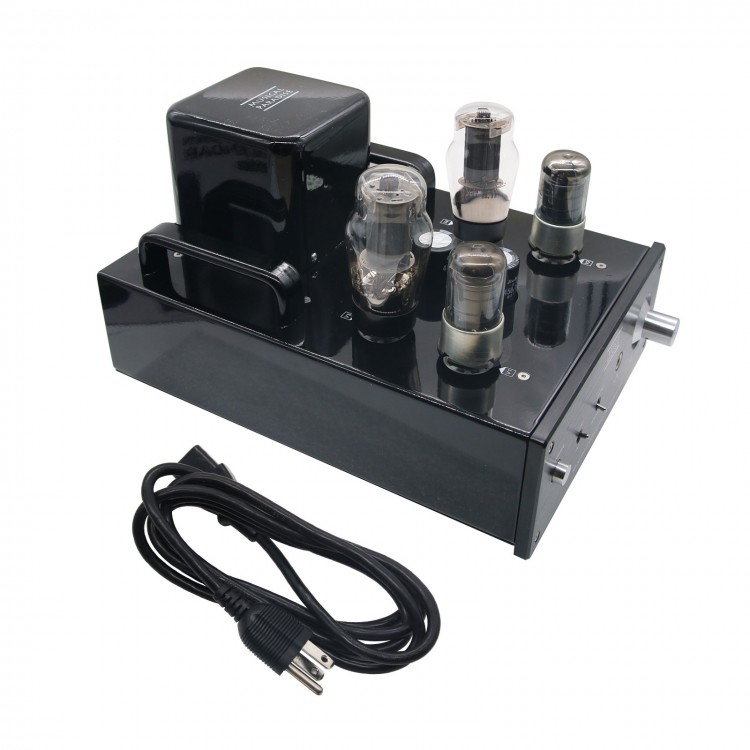

- Musical Paradise MP-301 is one of the most popular tube amps online which was first released in 2008. Now, the latest MP-301 MK3 Deluxe, the forth generation of MP-301 is here to bring you a natural and vivid musical journey.
Features:
- Global Voltages Support: 110V, 120V, 220V, 240V
- Fully Gold Plated PCB Boards Auto Biasing Design
- Eliminates Complex Manual Adjustment
- Single Ended Class A
- Zero Negative Feedback
- High Grade Genuine Parts From Vishay, RIFA, Rubycon, Philips, Nichicon and ALPS 24K
- Gold Plated Terminals OFC & Japanese Z11/M6 Grade EI Transformers
Specifications:
- Model :MP-301 MK3
- Option1 (Default) : Tubes6P3P (6L6) x 2, 6J8P x 2 Option 2: EL34+6J8P Option 3:KT88+6J8P
- Tubes (User Changeable)
- Power Tubes (V3 and V4): KT66, 5881, EL34, 6CA7, KT77, KT88, 6550
- Preamp Tubes (V1 and V2): 6SJ7, 5693, 717A, 713A, 6SH7, 6SD7, 6J8P, 6*8
- Topology:Class-A Single Ended
- Output Power (RMS)
6.5W x 2 (Speaker)
2W x 2 (Headphone)
- Output impedance :4R- 8R(Speaker), 32R-600R(Headphone)
- Frequency Response:15Hz - 30Khz
- T.H.D:Less Than 1% (1Khz)
- S.N.R :88db
- AC Input 100-120V / 220-240V 50-60Hz Worldwide Use
- Shipping Weight: 10KG
- Dimension (W 20CM x L 26CM x H 16CM)
- Warranty :1 Year Limited (One month for tubes)
