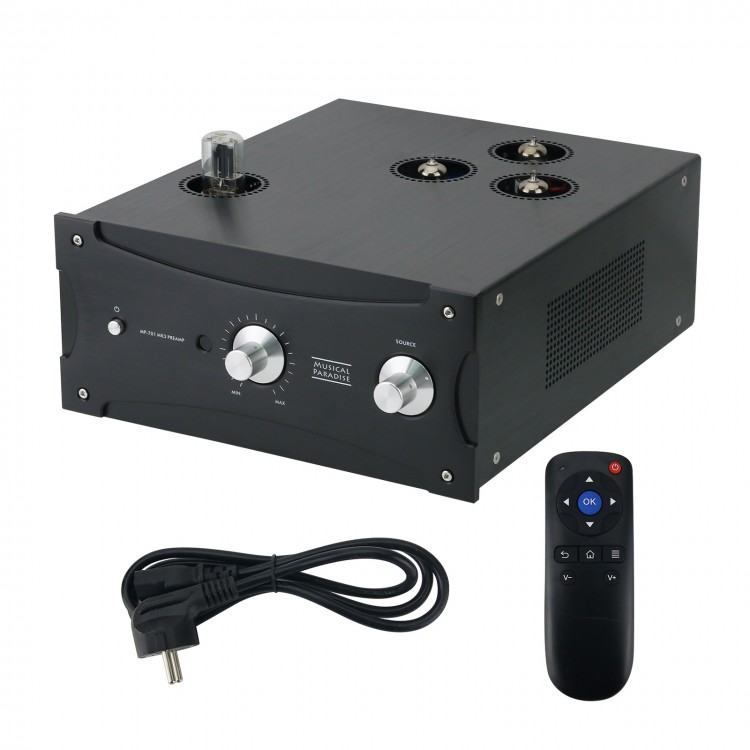

Musical Paradise MP-701-MK3 Electronic Tube Amplifier Filament Voltage Stabilizing Preamplifier 110V/220V
Highlights:
- It upgraded the filtering inductor on the basis of MK2 and added a filament stabilization circuit. The background is darker and the sound quality is higher.
- The onboard filament voltage switch can support 6.3V and 5V rectifier tubes, as well as 6.3V and 12.6V signal tubes.
- On board DIP output gain adjustment switch, users can choose four different levels of output gain to support downstream devices with different input sensitivities.
- The zero negative feedback circuit provides the most natural sound.
- The oversized 150W ring transformer can provide sufficient redundant electrical flow. It is placed in the electromagnetic shielding compartment under the motherboard.
- Quick installation capacitor design allows users to freely replace output coupling capacitors and power filtering bypass capacitors to further improve or customize different characteristics of sound, without the need for welding and easy replacement.
- The entire machine adopts original genuine HiFi grade components, for Vishay military grade resistors, for Rybycon and Nichicon low ESR power filter capacitors, Obbligato Gold coupling capacitors, Bennic XPP power bypass capacitors, ALPS volume control and power switches, and genuine gold-plated terminals.
- All aluminum alloy chassis, solid aluminum alloy shock absorber cone feet and button knobs.
- Equipped with remote volume control function.
Specification:
- Output voltage: 20V (maximum value), depending on the DIP gain switch setting and the type of signal transistor used.
- Output impedance: >=10Kohm
- Frequency response: DC to 50kHz
- Input: RCA x 3, XLR x 1
- Output: RCA x 2, XLR x 1
- Active subwoofer support: can
- Dimensions: 31cm x 39cm x 14.5cm
- Weight: about 10 KG
- Input voltage: 110-120V/220-240V (optional)
Electronic Tube:
- 6.3V filament rectifier tube: 6Z5P, 6X5.
- 5V filament rectifier tubes: 5R4, 5U4G, 5AR4, GZ33, GZ34274B, 5Y3, 5Z3P.
- 6.3V signal tubes: 6N11, 6N1P, E88CC, E188CC, CCA, 6922, 6H23, 6H6, 6H30, (6SN7 requires 6SN7 to 6922 adapter).
- 12.6V signal tube: 12AU7, 12BH7, E80CC, (12SN7 requires 6SN7 to 6922 conversion socket).
- When using 6.3V filament rectifier tubes, the onboard S2 switch must be set to the 6X5 position. - When using 5V filament rectifier tubes, the onboard S2 switch must be set to the 5AR4 position.
- When using a 6.3V filament signal tube, the onboard S1 switch must be set to the 6.3V position. - When using a 12.6V filament signal tube, the onboard S1 switch must be set to the 12.6V position.
Replaceable Capacitor:
- The standard coupling capacitor for Obbligato Gold is 630V 2.2UF. The capacity can be between 1.5UF and 4.7UF. The voltage must be >= 350V, without polarity.
- The standard power filter bypass capacitor for Bennic is 350V 6.8UF. The capacitance can be between 0.1UF and 10UF. The voltage must be >= 350V, without polarity.
Package Included:
- 1 x Preamplifier
