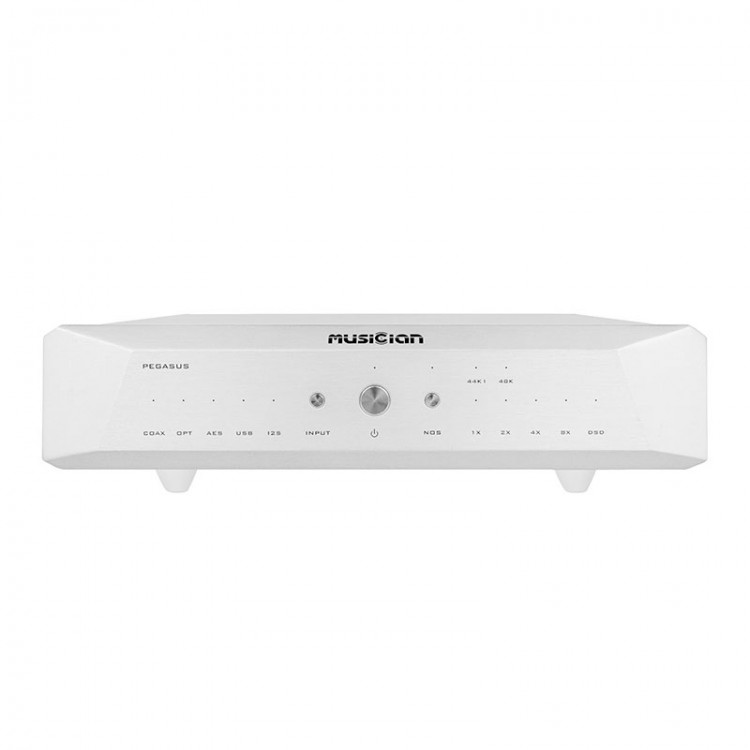

MUSICIAN PEGASUS 32Bit/1536kHz 24Bit R2R Decoder DAC 6BIT DSD Balanced Resistance DAC Support DSD1024 SPDIF -Silver

MUSICIAN PEGASUS 32Bit/1536kHz 24Bit R2R DAC Decoder 6BIT DSD Balanced Resistance DAC Support DSD1024 SPDIF Receiving Scheme R2R Decoder

Description:
- Pegasus has it's own upscaling function in the internal, which supports up to 16 times.
- The burn-in time of PEGASUS DACs is one week: Standby or Powered on 24/7 (300 hours), you will get the best performance after the enough aging hours
- Connecting RCA or XLR output simultaneously is not recommended, it will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will still be transmitted to the input stage of the downstream device.
If possible, please use the XLR output. As a ture balanced DAC, the XLR output of PEGASUS will be more superior.

MUSICIAN PEGASUS 32Bit/1536kHz 24Bit R2R + 6BIT DSD Balanced Resistance DAC Support DSD1024 SPDIF Receiving Scheme

Test review by famous reviewer&founder from Soundnes--Sandu Vitalie
Youtube:https://youtu.be/IX6A2MCXc3o
Article:https://soundnews.net/sources/dacs/musician-audio-pegasus-r2r-dac-review/
Article:https://soundex.ru/en/obzory/sources-obzory/musician-pegasus/


Specification:
- Proprietary R2R + DSD Architecture
- True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
- Low Noise Power Supply
- FIFO Buffer
- Digital Signal Processing via FPGA
- DSD1024, PCM1536 Supports On USB & I2S Input (the audio source needs to be compatible with the native interface)
- Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
- Licensed Thesycon USB Driver For Windows Platform
- Driverless On Mac & Linux
- DSD
- DSD64-DoP On All Input
- DSD1024 On USB & I2S Input
- PCM
- 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
- 1536kHz On USB & I2S Input
- Sampling Mode: Non-Oversampling NOS / Oversampling OS
- Digital Input
- Coaxial*1 via RCA
- Optical *1
- USB*1
- AES/EBU x 1
- I2S via HDMI LVDS *1


Technical parameters
- Frequency Response: 10Hz~60KHz
- Resistance accuracy: 0.005%
- THD+N: 0.002%
- S/N Ratio: 123dB(A-weighted)
- Dynamic Range: >120dB
- AC Power Requirement: 110-240VAC, 50/60Hz (Worldwide Voltage)
- Power Consumption: ≤20W
- Dimension: 280 x 250x 50 mm
- Package Dim: 375 x 330 x 115 mm
- Package Content: DAC only. No power cord & remote control.
- Weight:3.9 Kg
- Color: Silver / Black (optional)

i2s Pin Configuration
There is no industry standard of I2S connection.  Please confirm the IIS interface compatibility before purchasing.
MUSICIAN Pegasus is trying to compatable with most of device by the following mode setting method if you are using standard HDMI cable:
1. Select the sound source input to I2S;
2. Press and hold the NOS button for 3 seconds until the I2S light flashes;
3. Press the NOS button during the flashing process to cycle through the phase modes (there are total 8 modes, 1X, 2X, 4X indicator lights are binary mode Display);
4. Stop the operation when you selected the satisfied sound, the machine automatically exits the mode setting function.

Different brand/product has different I2S line order. We could not guarantee the I2S connection workability with your Interface/Turntable/Player. If it can not playing properly(such as hiss sound) by the above setting. This shall not be considered as a defective product, but just a matching failed.  The suggested solution is to use a customized HDMI cable.

List of verfified and tested Interface/Turntable/Player:
Jay's Audio CDT MK2
Matrix SPDIF 2 USB
SOUNDAWARE D280
Gustard U16
Singxer SDA-1
