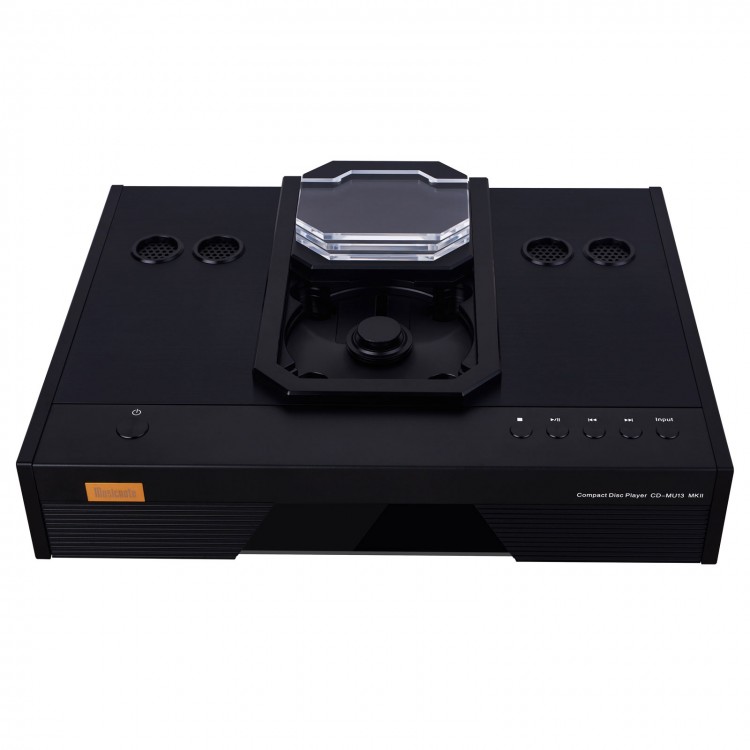

Musicnote CD-MU13 Pro Compact Disc Player Hifi Portable CD Player Designed with USB Input Port
Description:
Appearance
CD-MU13 Pro uses a large aluminum alloy panel, high-gloss acrylic and transparent crystal material, making the machine look stable and elegant.
Top Push Cover
The top push cover has a sliding structure with a sliding shaft, which has a good feel, stability, and smooth movement, improving the effect by one level compared to the non sliding shaft structure. The thick three-layer transparent crystal sliding cover adds more luxury and nobility.
CD Mechanism
New original CD mechanism for Sony is used, enabling faster and more stable disc reading speed, with better details. There are multi-stage shock absorption: spring and bakelite material for shock absorption. The shock absorber made of bakelite material can prevent the shock of the shock suspension system during the movement, and the shock absorption effect is quite obvious.
Transformers
It is powered by two transformers. The digital circuit and the analog circuit are powered by independent transformers respectively, which effectively reduces the interference of the digital circuit to the analog circuit. The transformers are made from high-quality iron core and high-purity copper wire. The high-efficiency power supply provides sufficient energy for the CD player, so that the sound of the CD player is full, and the low-frequency sound is deeper and more elastic. The transformers are all potted with resin, which effectively reduces the vibration of the transformers and makes the machine run quieter. The transformers are equipped with shielding covers, which effectively prevent the interference of the transformers and make the details of the machine perform better.
USB Input Port
The digital signals of computers and mobile phones can enter the ES9038 through the USB port for decoding and output, so that you can get more music resources.
Coaxial Input Port
The coaxial port can be connected to the digital output of the turntable, and the CD player can be used as a high-end decoder, which is quite good.
Servo
CD servo system (SAA7824) for Philips is used: the CD servo system can only read CD format discs, different from the DVD system which is compatible with MP3 format discs.
Premium Components
It uses dual ES9038Q2M decoding chip. The resolution of the chips is quite good. The machine adopts high-quality OPA2604 op amp, and the effect of OPA2604 op amp is better than that of OPA2134, LME49720 and the like. Capacitors for Nichicon are used. In addition, the transparency of high frequency, the diving of low frequency, and the fullness of medium frequency are all well expressed, which is not what ordinary industrial capacitors can do. The amplified output stage adopts the GE6189 tube of the United States, which makes the charm of the machine better, more durable, and more intoxicating for you to revel in the music.
More Details
Round aluminum buttons provide good hand feel. The shell is designed with holes for the heat dissipation of the tubes. There are quality gold-plated terminals and transparent protective sleeves for the terminals.
Technical Parameters:
- System: Laser disc digital audio system
- Optional power supply: 110V or 220V
- Power consumption: 35W (for user reference only)
- Dimensions: 430 x 110 x 330 mm/ 16.9 x 4.3 x 13 inch
- Net weight: 13kg/28.7lb
- Operating temperature: +5 to +35°C
- Operating humidity: 5-90% (no condensation)
- Output level: 2.0V
- Reading time: ≤5 seconds
- Digital coaxial output characteristics: S/PDIF compliant
- Frequency response: 20HZ-20KHZ, ±0.5dB
- Signal-to-noise ratio: 110dB
- Dynamic range: 110dB
- Total harmonic distortion: 0.0025%
- Output port:
* A set of analog balance
* A set of analog RCA
* A set of digital coaxial
* A set of digital optical fiber
- Input port:
* A set of digital coaxial
* A set of USB or Bluetooth interfaces (USB and Bluetooth are optional)
Package Included:
- 1 x CD player
Packaging Details:
- G.W.: 15kg
