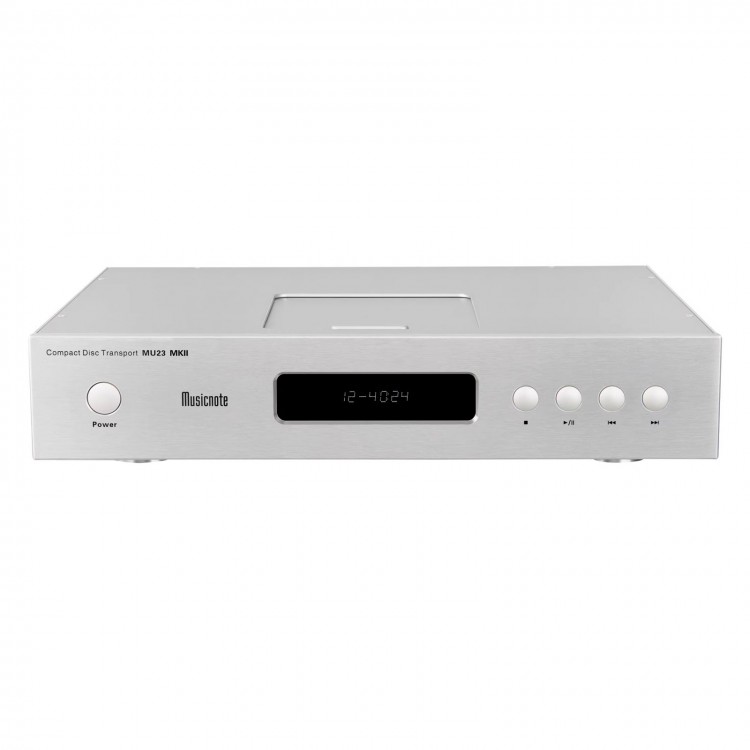

Musicnote MU23 MKII Compact Disc Player Hifi Turntable Portable CD Player (Silver) with IIS Output

Musicnote MU23 MKII Compact Disc Player Hifi Turntable Portable CD Player (Silver) with IIS Output

Features:
- This high-end turntable is designed with new original CD mechanism.
- Imported audio dedicated digital output isolation transformer (for MURATA) ensures the integrity of digital signal transmission. Gold-plated TCXO makes the clock more stable and accurate. American resistors for DALE have lower thermal noise. Red German capacitors for WIMA have a better audio effect. Gold and green high-end audio capacitors for Nichicon have lower loss angles, higher stability and filtering effect. Servo system adopts SAA7824 for Philips. It is a real CD servo system, superior to non-DVD systems. Compatible discs include CD, CD-R and CD-RW.
- There is an IIS output interface. It can directly connect with a decoder for PCM signal to achieve better results.
- Used with Musicnote MU22 MKII decoder, this turntable is compatible with 384KHz transmission via coaxial, AES, and IIS. The sound extension of high and low frequencies is better. When you are listening to the symphony, the dynamics are loud, the vocals are full and sweet, with a rich analog sound.
- More details: Original CD mechanism, stable aluminum mechanism tray, metal CD stabilizer, high-end gold-plated temperature-compensated clock, imported digital output isolation transformer for MURAIA, imported electrical isolation components for DALE, imported capacitors for WIMA and Nichicon (golden and green ones).
- Dual transformer: The transformers are wound from high-purity copper wire. Its internal resistance is small, so that the sound quality is dynamic and the details are good. Resin potting greatly reduces the vibration and noise of the transformer. The metal shield greatly reduces high-frequency interference and electromagnetic interference, greatly improving the high-frequency details of the sound quality and the stability of the machine.

Interface Introduction:
1. Coaxial output:
Use a standard 75-ohm coaxial digital cable to connect the coaxial digital output port of the machine with the coaxial digital input of a DAC. When connected to other decoders, it supports 192KHz. When connected with Musicnote MU22 MKII, it is compatible with 384KHz.

2. Optical output
Connect the optical output port of the MU23 MKII to the optical input port of a decoder with an optical fiber cable, which supports 192KHz.

3. Digital balanced output
Connect the AES output port of the MU23 MKII to the AES input port of a decoder using a standard 110-ohm AES cable. When connected to other decoders, it supports 192KHz. When connected with MU22 MKII, it is compatible with 384KHz.

4. HDMI-compatible IIS output
- Note that the transmitted signal is IIS, not a conventional HDMI-compatible audio and video signal.
- The IIS output port can be connected to Musicnote MU22 MKII decoder via an HDMI-compatible cable.
- When connected to other decoders, it can support 192KHz. When connected with MU22 MKII, it is compatible with 384KHz.

5. Socket
Connect the power cord to the power supply input port of the CD player, and then plug the power cord to the power outlet.

Package Included:
- 1 x Main unit
- 1 x Remote control

Packaging Details:
- G.W.: 10kg
