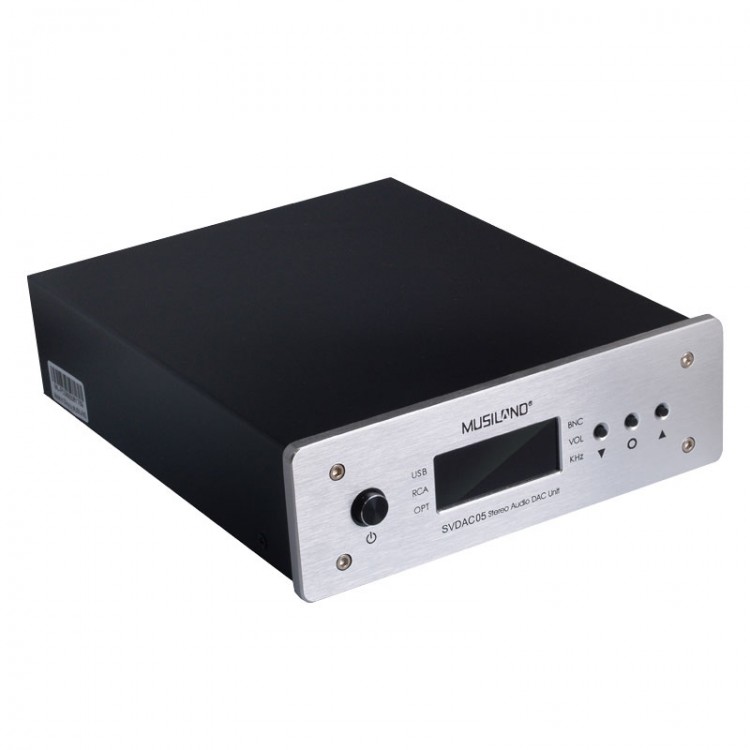

MUSILAND SV DAC05 DAC Digital Stereo Decoder HIFI Audio External USB Sound Card

Availability: In stock, usually dispatched in 1 business day

  • Price:$124.38
  • Price in reward points: 1244 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $121.89 $119.40 $115.67 $110.70 Contact US
Quantity:

MUSILAND SV DAC05 DAC Digital Stereo Decoder HIFI Audio External USB Sound Card

Description:

SVDAC05 is Musiland's high performance stereo audio decoder products.It is launched to face the computer multimedia applications and high -fidelity music users,possessing many excellent features.

Electronic control interface
SVDAC05 used advanced microcomputer control technology, providing the users with hunmanized push-button operation interface and digital display interface, can real-time display the input signal sampling frequency and the current output volume, can choose the input methods conveniently, adjust output volume,all user settings can automatically save.

High quality high specification characteristics
- SVDAC05 used CIRRUS's top digital/analog concersion chip CS4398, its up to 120dB SNR and dynamic range parameter provides extremely high decoding performance and perfectly support up to 24 bit/192 KHz high specifications decoding.
- Analog output used Musiland's original balanced simulation filter circuit,which possess both  HI-FI output features and good Musicality.
- The built-in high-performance headphone amplifier circuit,can promote low impedance and high  sensitivity headphones.

Variety of input and output ports
- SVDAC05 has optical ,RCA coaxial,BNC coaxial input port, which can connect digital audio equipment more flexible.
- Special disigned USB input port can connect computer system as an independent USB sound card equipment.
- Analog output with RCA lines and 3.5 mm headphone output port can easily connect amplifier and headphones system.

Specifications:
- Dynamic range:  120dB
- Signal-to-noise ratio (A weigh):  120dB
- Total harmonic distortion : 0.0005%
- Frequency response (20Hz ~ 20KHz)  : + - 0.5 dB
- Output level : 3V RMS
- Output impedance:  10KOhm
- Headphone output power:  500mW/RL = 100 Ohm, 200mW/RL = 32Ohm
- AC power input specification:  220V, 50/60Hz
- Power consumption:  <=15W
- Color: Black
- Dimension: 210*160*50mm
- Weight: About 1.5kg

Interface:
- 1* Optocal input interface
- 1* RCA coaxial input interface
- 1* BNC coaxial input interface
- 1* B type USB input interface
- 1 sets of RCA line output interface
- 1* 3.5mm headphone output interface

Main characteristics
- Stereo analog output
- Support S/PDIF input format: PCM
- Maximum support for digital input format: 24Bit/192KHz (USB:16Bit/48KHz)
- Digital display interface
- Electronic volume control
- Input manual selection
- USB1.1 transport protocol
- USB input, the system comes with a variety of drivers:Windows Me/2000/ XP/Server 2003/VISTA/7,
  Apple Computer Mac OS. 9.1 or later,Linux (kernel9 or later) ;32/64Bit

Packing list:
- Decoder  x 1
- Power line x 1
- Optical cable x 1
- USB cable  x 1
- Manual  x 1
