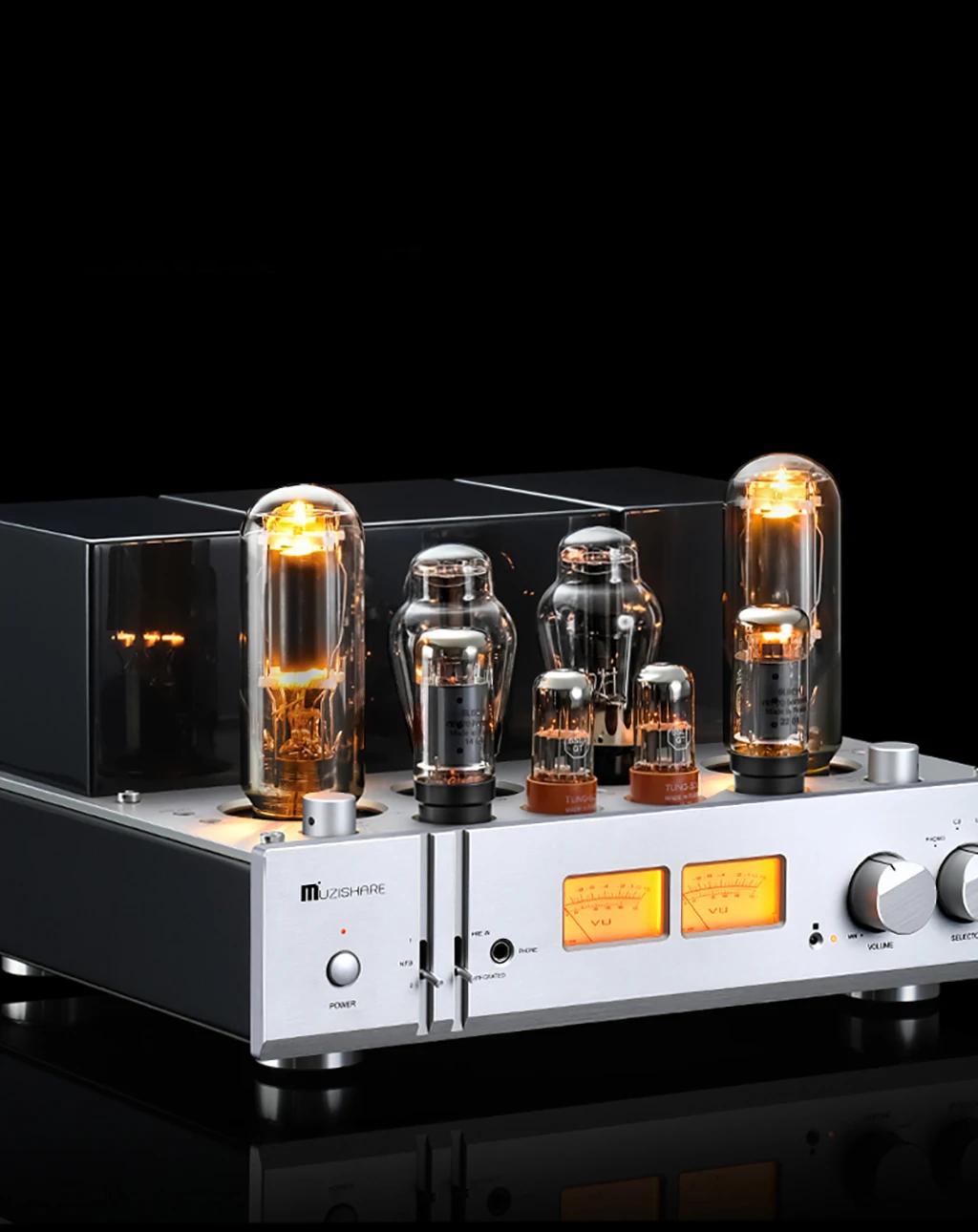

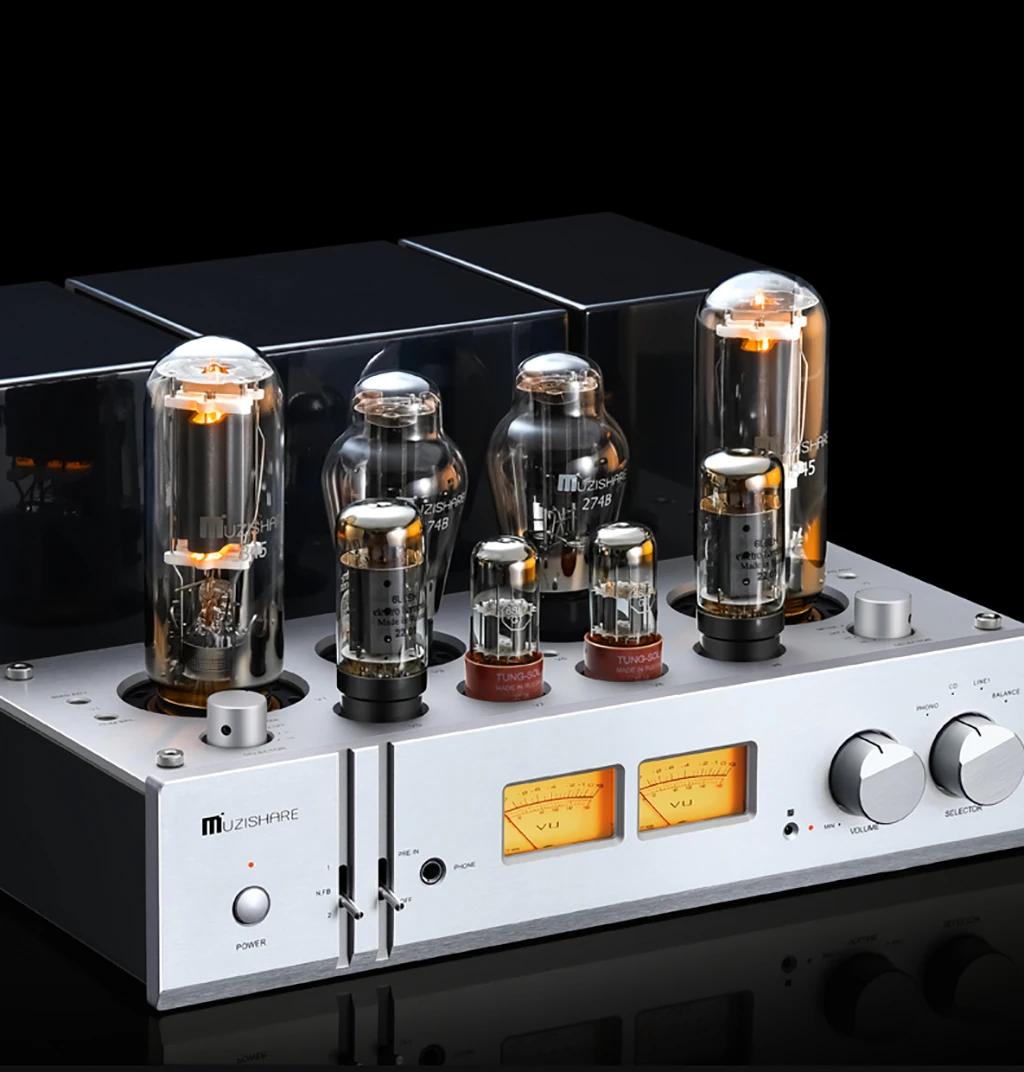

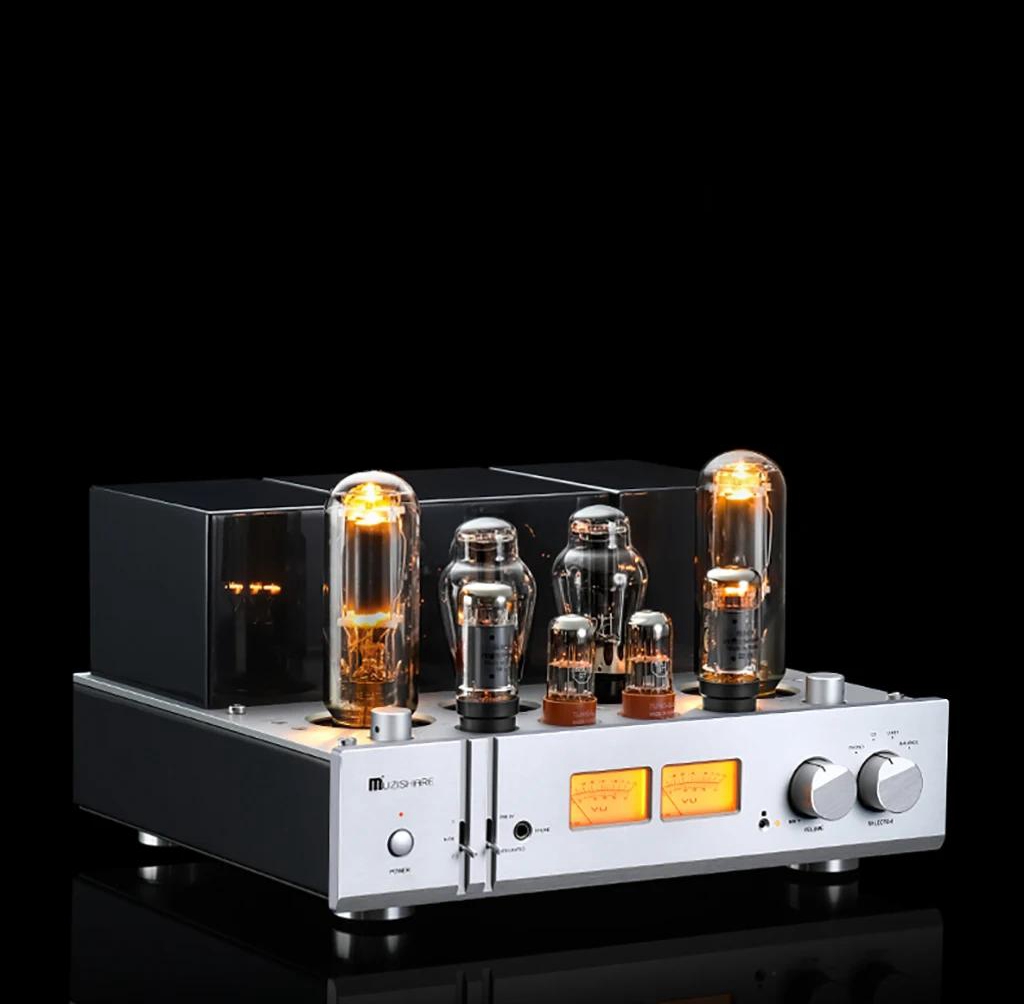

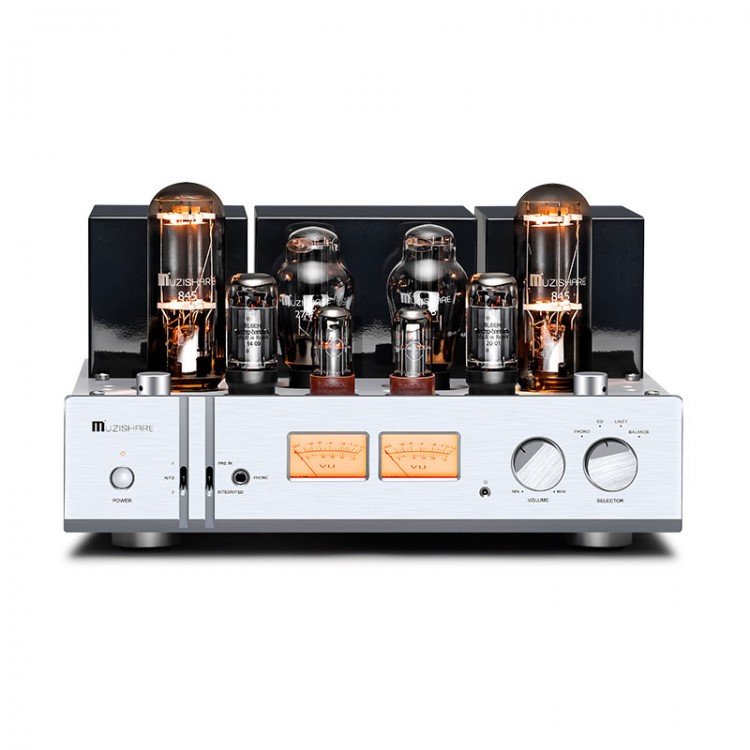

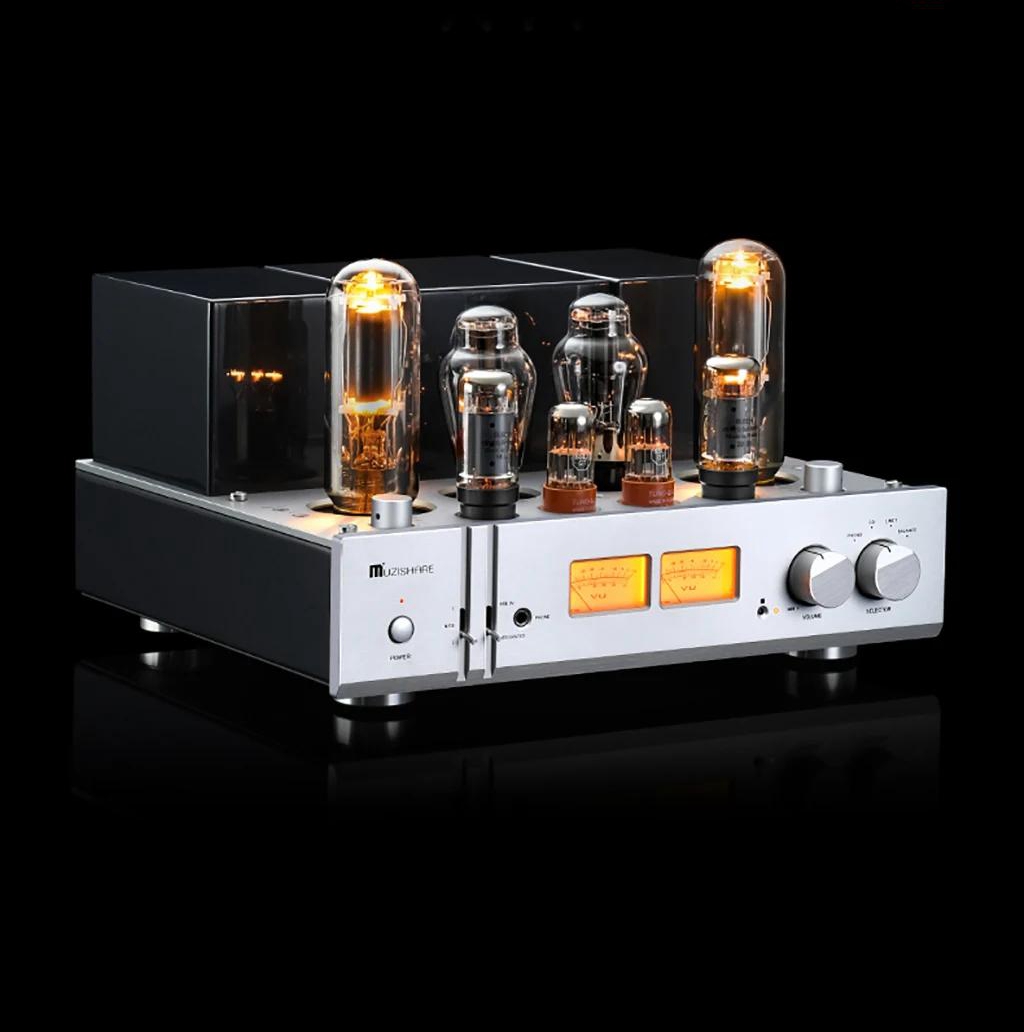

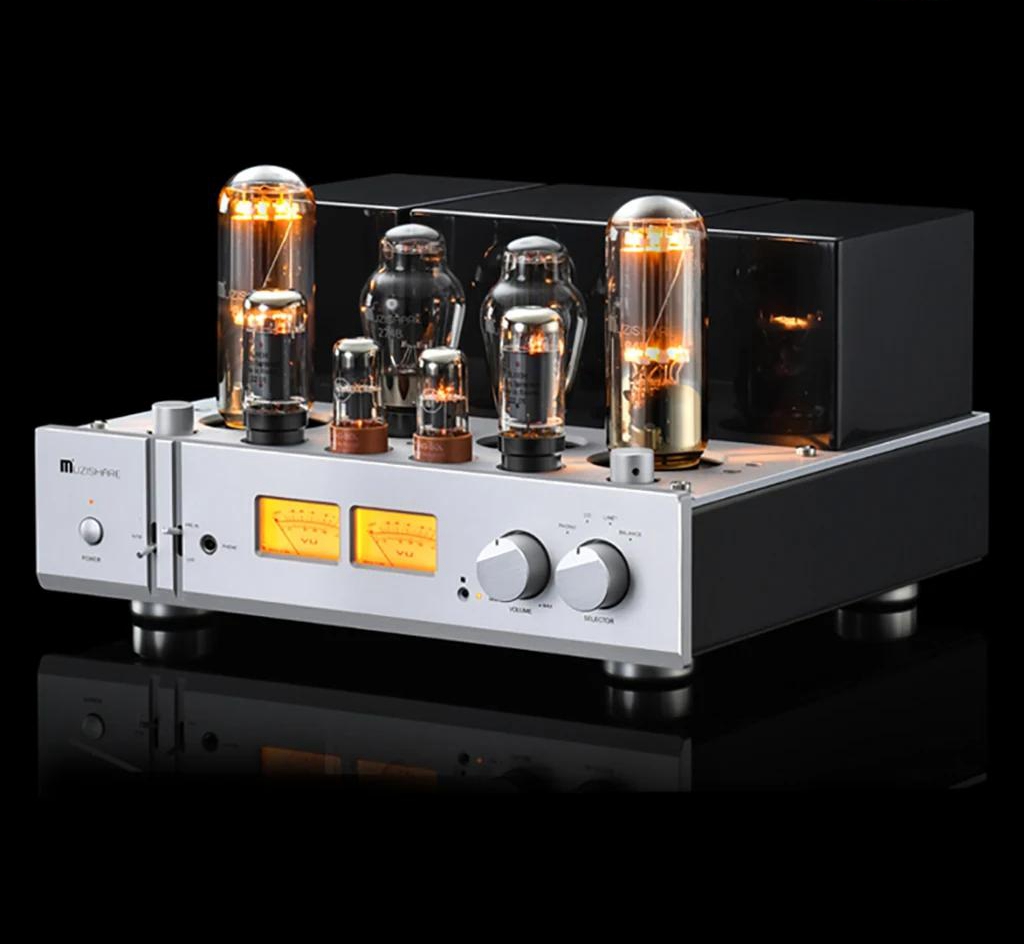

MUZISHARE X11 6L6 Push 845 Class A HiFi Vacuum Tube Power Amplifier 28W+28W MM PHONO Amplifier

Description:

- X11 is a product that combines the essence of the X series, featuring a classic circuit framework, superior sound performance, comfortable listening experience, outstanding audio quality and craftsmanship, and a spirit of continuous innovation, making it a standout in the audio field.

Key Features:

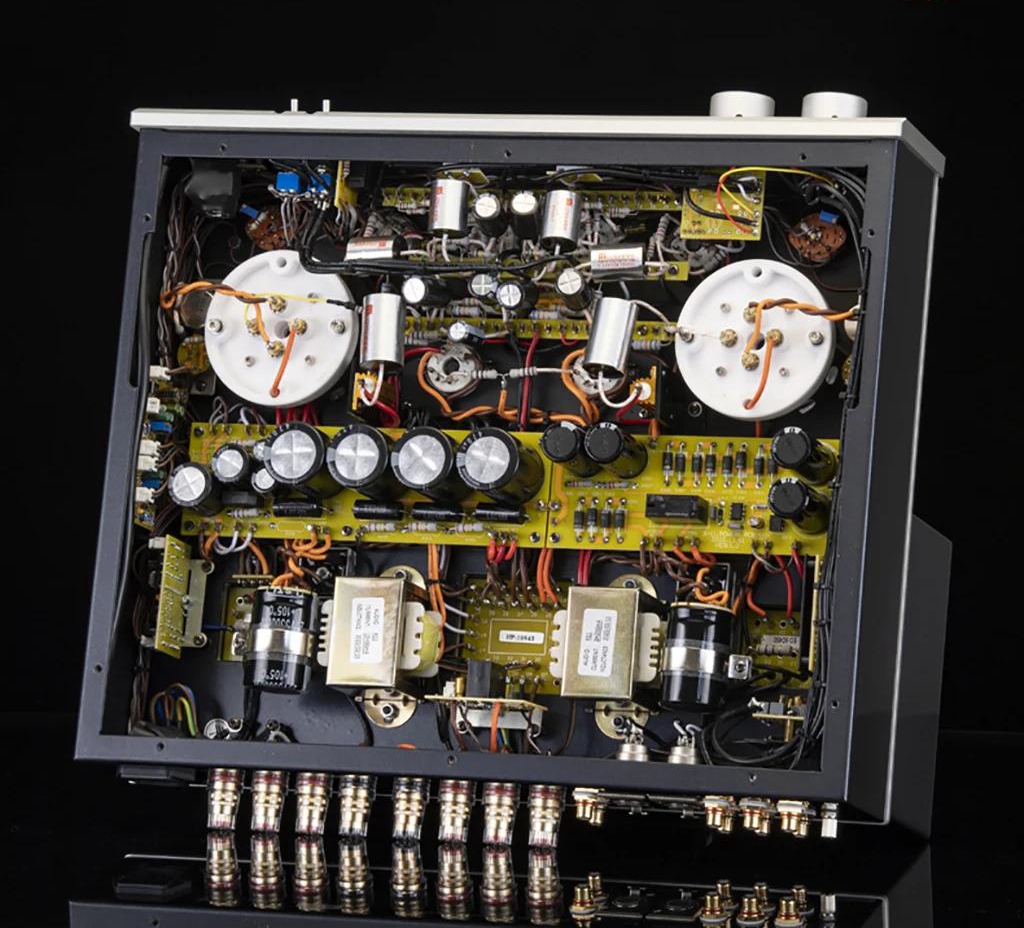

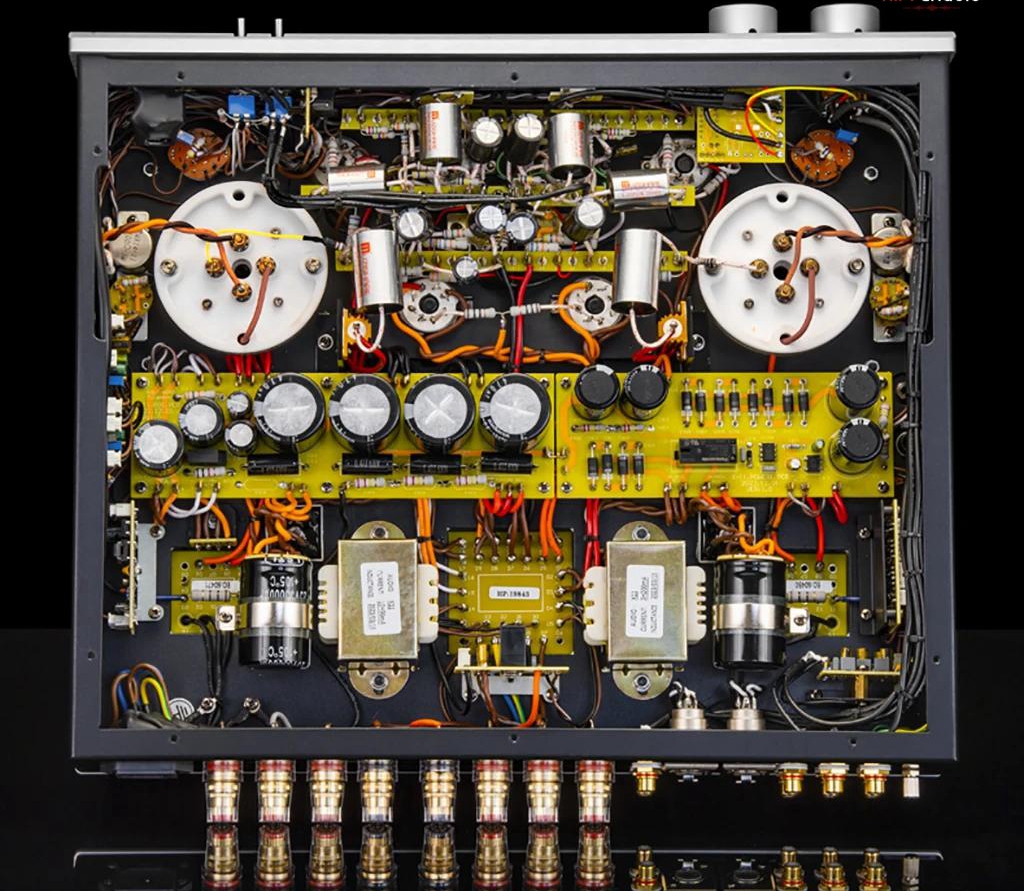

- Handcrafted Construction: The entire unit is meticulously handcrafted, utilizing scaffolding welding techniques.

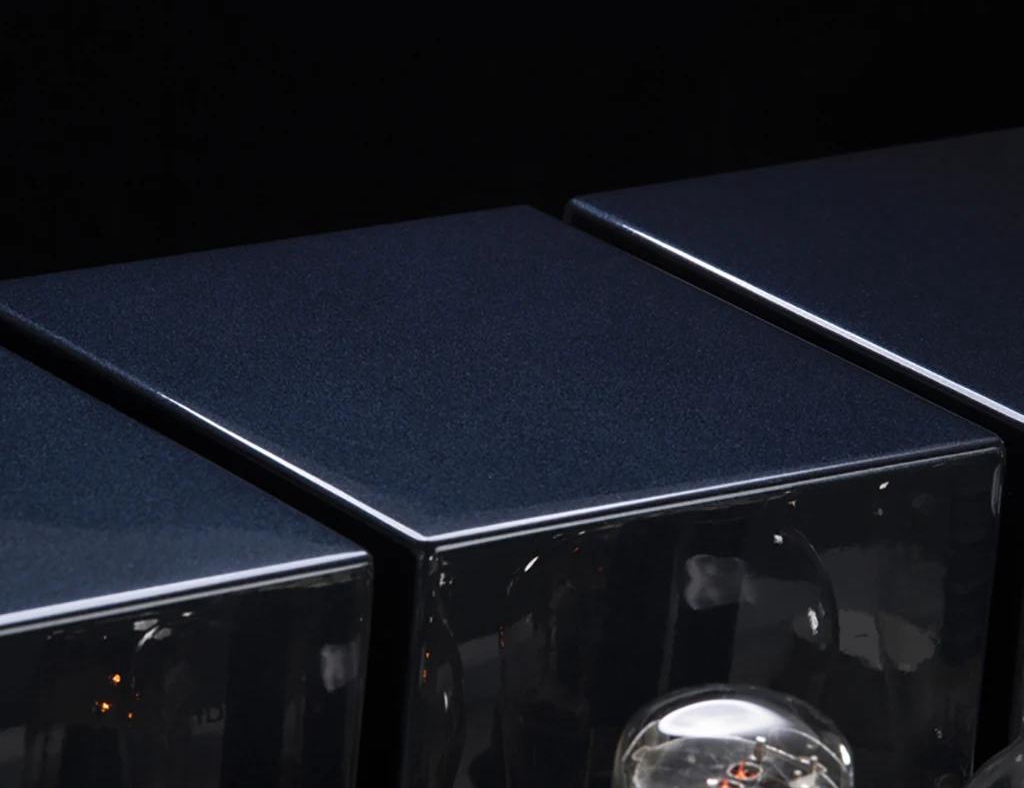

- High-Quality Output Transformers: Two EI type single-ended output transformers made with Z11 iron cores, featuring premium craftsmanship and wide frequency response.
- High-Power Power Transformer: A high-power power transformer made with a Z11 iron core and special materials fusion.
- Rectification Section: Utilizes 2 x 274B rectifier tubes for full-wave rectification.

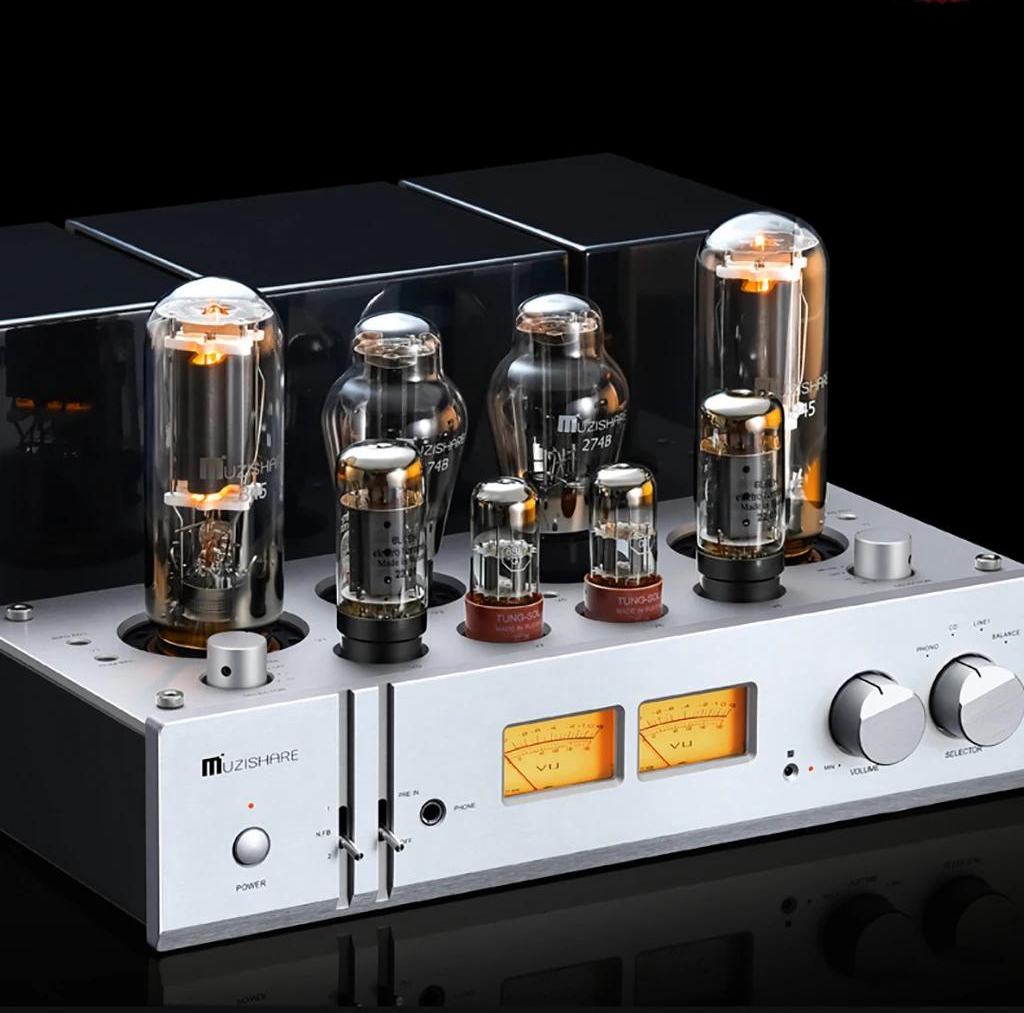

- Tube Configuration: The preamp stage employs two each of Tung-Sol 6SL7 and 6L6EH vacuum tubes, while the power stage utilizes two 845 vacuum tubes for Class A single-ended power amplification.

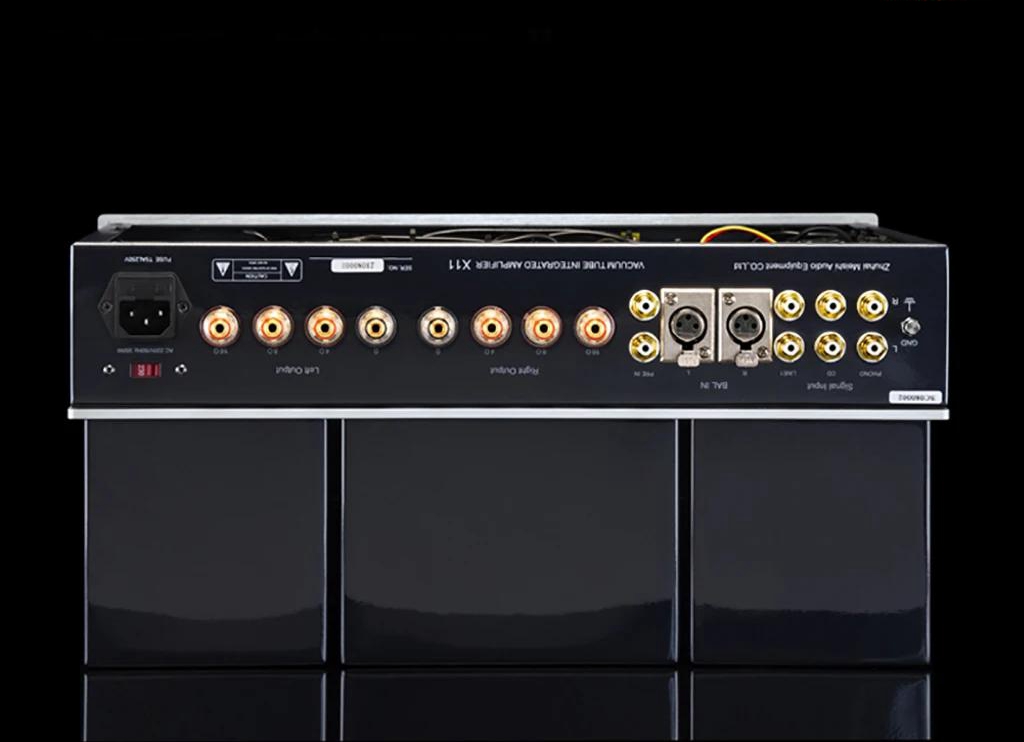

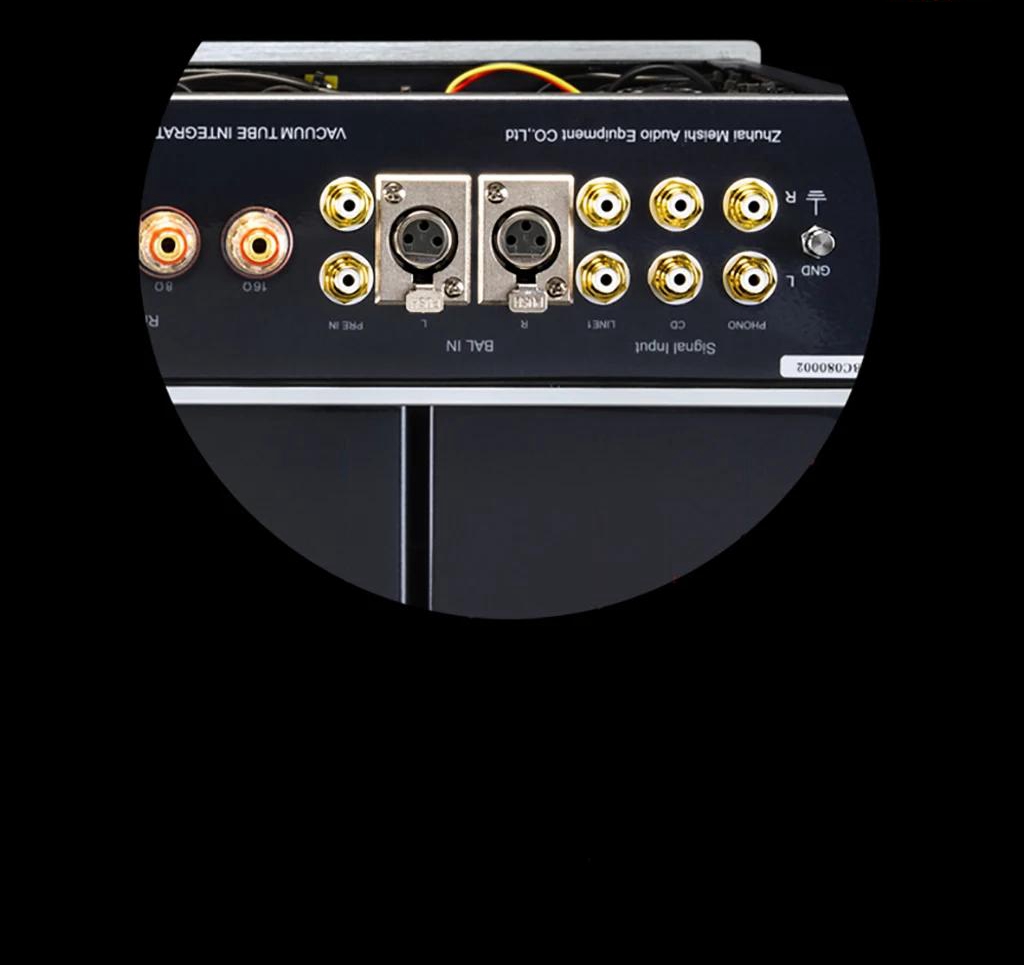

- Versatile Inputs: Features five signal inputs (BALANCE, CD, LINE, PHONO, PRE IN), with additional balanced input and pure post-stage functions.
- High-Quality Components: Incorporates specially developed metalized polypropylene audio coupling capacitors, NICHICON electrolytic capacitors, and Teflon-coated copper-plated gold vacuum tube sockets.

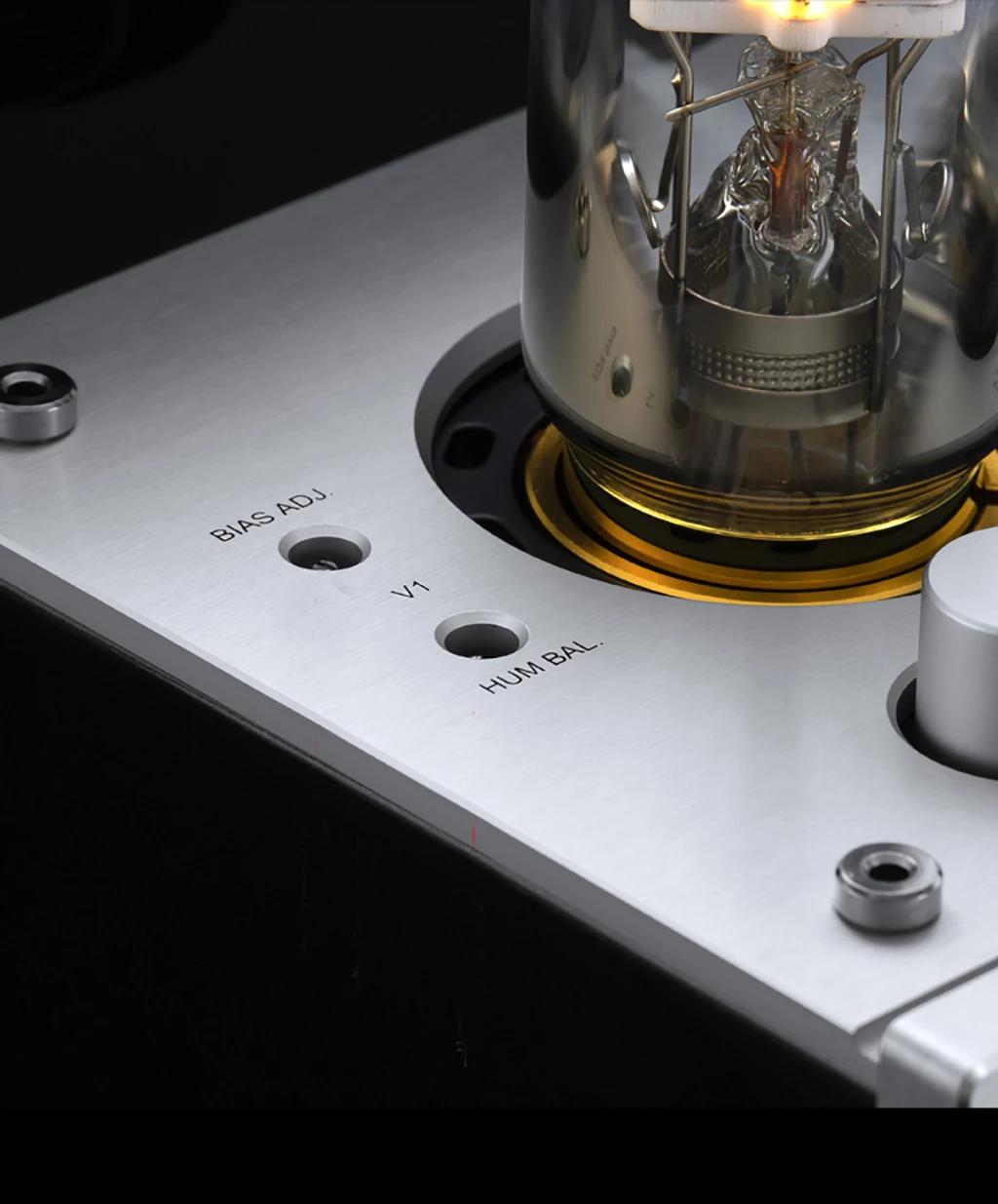

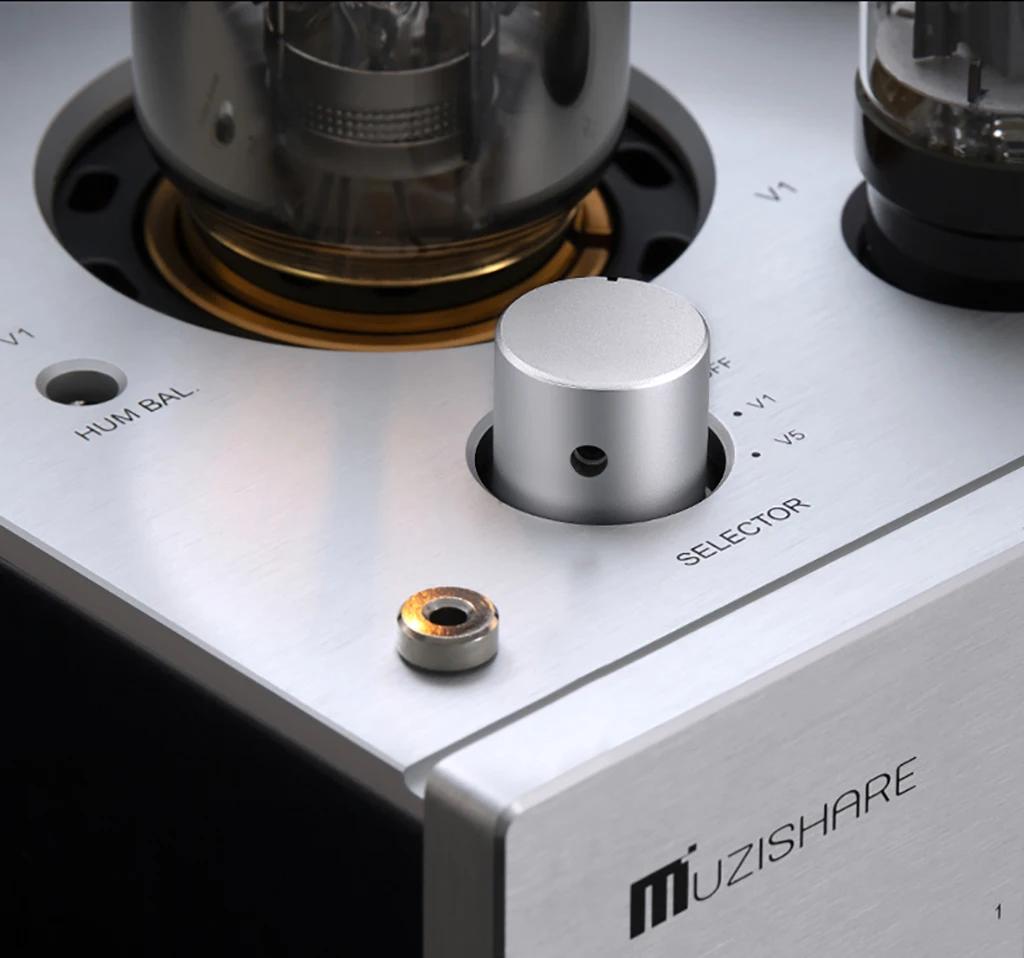

- External Power Tube Current Adjustment Knob and UV Meter: Equipped with an external power tube current adjustment knob and dynamic output level UV meter display.

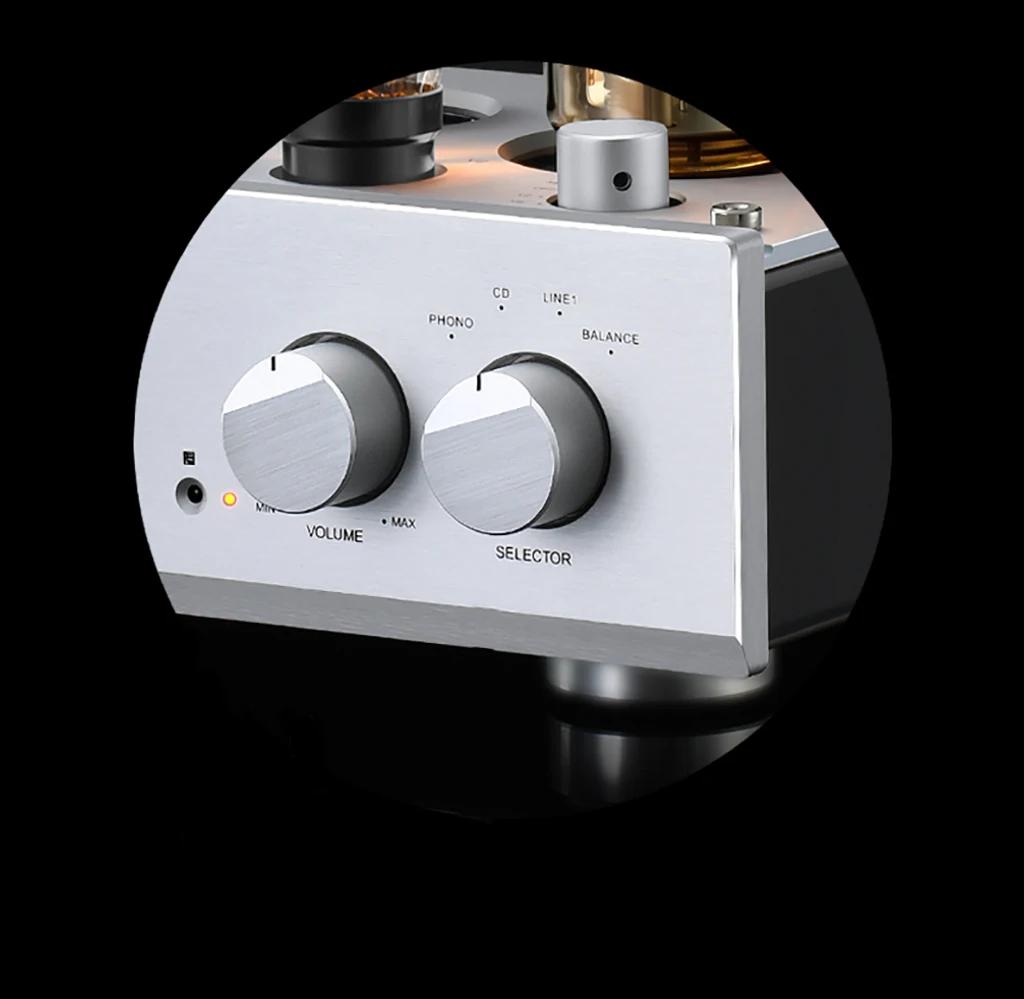

- Premium Controls: Utilizes Japanese ALPS motorized potentiometers and military-grade T STL filter capacitors for high-quality sound reproduction.
- High-Voltage Startup Mute Delay Function: Features a high-voltage startup mute delay function (approximately 30 seconds).
- MM Phono Stage: Includes a MM phono stage for vinyl playback.

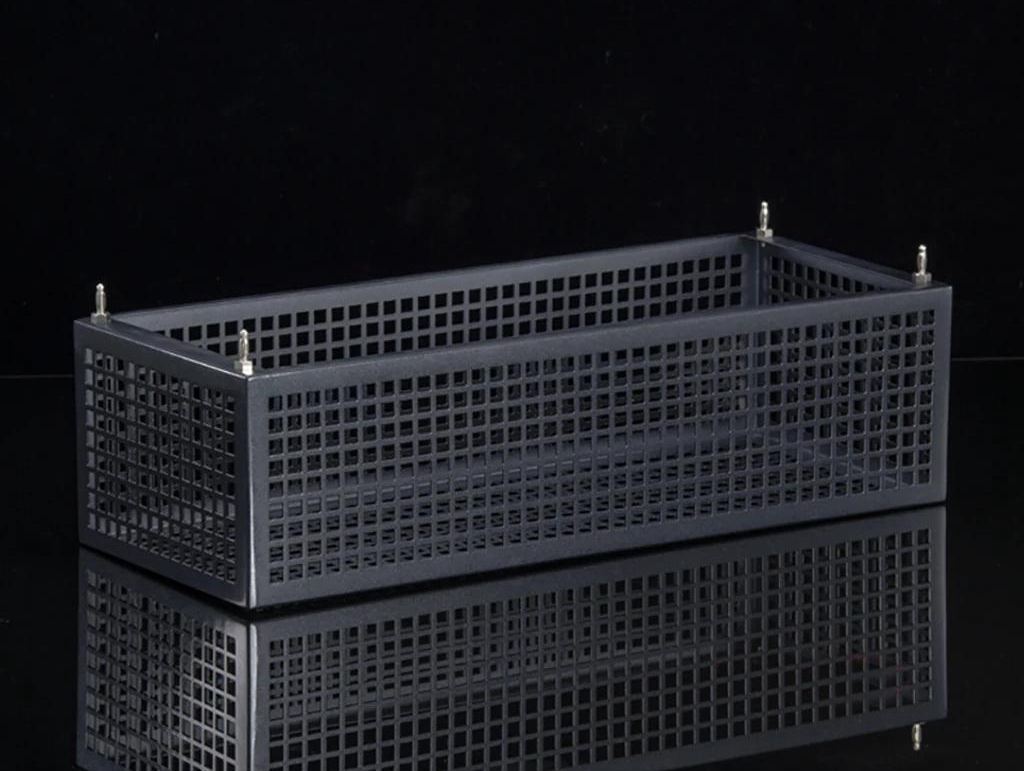

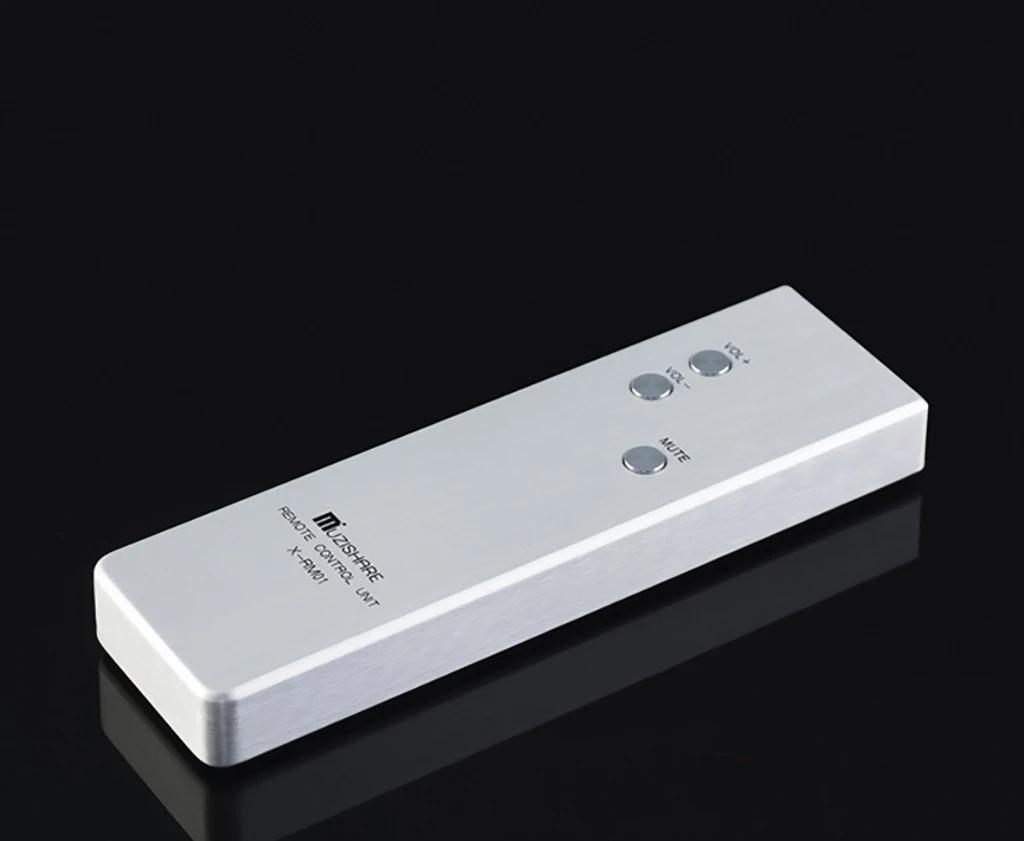

- Infrared Remote Control and Detachable Vacuum Tube Protective Cover: Comes with an infrared remote control and easy-to-install detachable vacuum tube protective cover.

Specification:
- Rated Output Power: 28W + 28W
- Harmonic Distortion: 1% (1kHz)
- Frequency Response: 20Hz to 22kHz (-1.5dB)
- Input Sensitivity: Merged: 160mV, PRE IN: 1200mV
- Signal to Noise Ratio: Approximately 92dB
- Balanced Output: <1dB
- Output Impedance: 4Ω, 8Ω, 16Ω
- Total Power Consumption: 350W
- Input Impedance: RCA: 100K, Balanced: 47K, PRE IN: 100K
- Vacuum Tubes Used: 6SL72, 6L6EH2, 274B2, 8452
- Dimensions: 430 x 408 x 274(mm)
- Power Supply Voltage: ~115V/230V ±5% (50Hz)
- Operating Conditions: Temperature 0°C to 40°C, Humidity 20% to 80%
- Storage Conditions: Temperature -20°C to 70°C, Humidity 20% to 90%
- Weight: 47kg

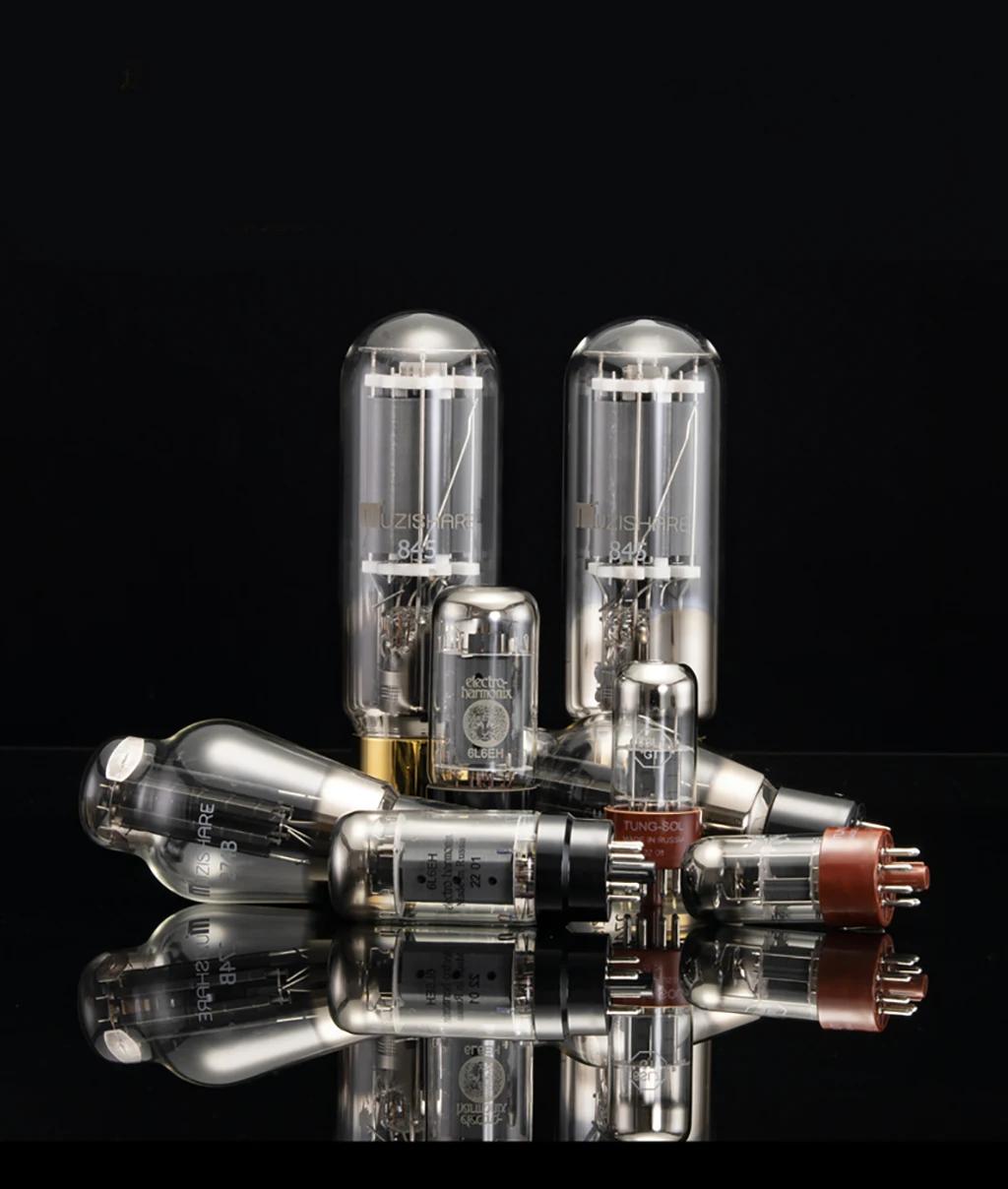

Vacuum Tubes:
- Power Tubes: The X11 employs 2 factory-customized replicas of the Western Electric 845 power tubes.
- Preamp Tubes: Two 6SL7 Tung-Sol vacuum tubes are utilized in the preamp stage.
- Driver Tubes: Two 6L6EH Russian EH vacuum tubes are employed for driving purposes.
- Rectifier Tubes: Two specially customized replicas of the Western Electric 274B rectifier tubes are used for rectification.
- This selection of vacuum tubes ensures optimal sound quality, contributing to the exceptional performance of the X11 amplifier.

Package Included:
- 1 x Tube Amplifier
- 1 x Remote Control
