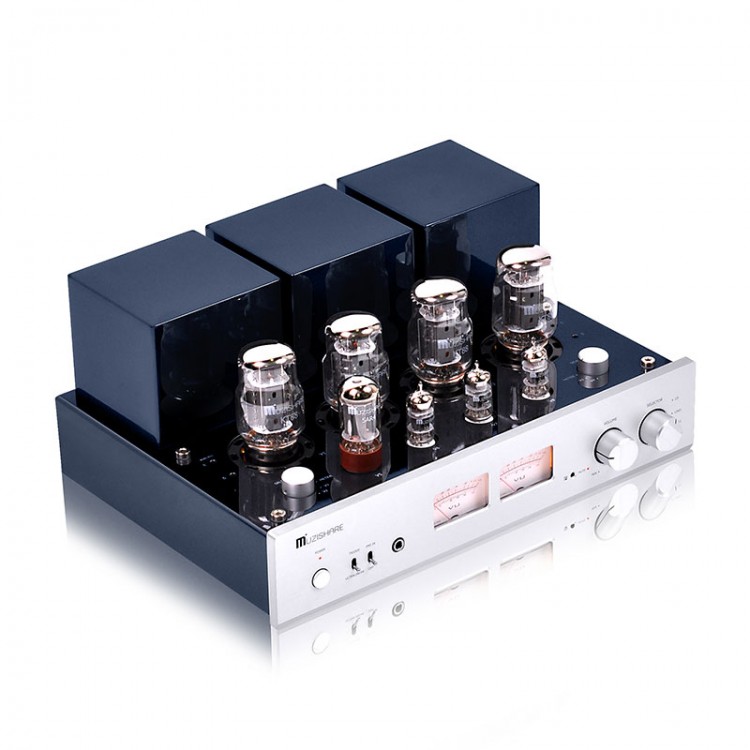

MUZISHARE X7 Hifi Power Amplifier Vacuum Tube Integrate Rectifier 45Wx2 Audio AMP

MUZISHARE X7 Hifi Power Amplifier Vacuum Tube Integrate Rectifier 45Wx2 Audio AMP

Features:
- Pure handmade.
- Using two high-quality broadband sound quality Japanese EI type output transformer
- High-power Z11 core toroidal power transformer
- The voltage amplification and promote stage adopt 5AR4 as rectifier power supply
- Use 12AX7 and 12AU7 vacuum tube as voltage amplification and inverted push, using KT88 tubes do AB1 type Push pull power amplifier; provide triode and ultra-linear
- Triode way to workvoice soft, pure and smooth, suitable for people to enjoy the sound of the strings music and other types of music;
super-linear to worksound open, bold, imposing good for viewing large scenes, large dynamic and other types of music.
- The peripheral power tube current adjustment knob and the current display table headers
- With multicenter amplifier function, which can be accessed independently pre-signal input
- With phono functionscan be accessed Turntables
- Infra-red remote control function
- Boot quiet time delay function (approximately 30 seconds)
- Japan ALPS motor potentiometer
- Easy to install plug-type vacuum tube shield

Technical Parameters
- Rated output power:
  25W+25W (RMS triode working condition)
  45W+45W (RMS super-linear working condition)
- Harmonic Distortion: 1% (1kHz)
- Frequency response: 15Hz ~ 30kHz (-1.5dB)
- Input Sensitivity: 280mV; 520mV (pre in)
- Input impedance: 100KΩ
- Output Impedance: 4Ω 8Ω
- SNR: 92dB
- The balance of the output: <0.5db
- NW: 22.5kg
- GW: 25kg
- Machine Power consumption: 260W
- Vacuum tube: 12AX7 × 1,12AU7 × 2, KT88 × 4,5AR4 × 1
- Whole volume (W × D × H): 410mm x 335mm x 198mm
- Power supply voltage: 110V~ 220V ± 5% (50Hz)
- Working conditions: temperature: 0 ~ 40 Humidity: 20% ~ 80%
- Storage conditions: Temperature: -20 ~ 70 Humidity: 20% ~ 90%

Packing List:
- 1 *  Amplifier
