MV-20B 0-20MA ±10V Precise Strain Gauge Amplifier Industrial-grade Precise Isolated Bridge Amplifier
Description:
The strain gauge amplifier MV-20B is a high-performance signal conditioner for load cells, force transducers, mass pressure transducers, and similar devices based on strain gauges. The device can be powered from DC supplies, providing excitation for strain gauge bridges with 10V voltage output. The MV-20B provide 1.5KV isolation for excellent noise suppression, and DIN rail mount for easy installation. MV-20B is fully compatible with the previous version of MV-20. MV-20B has lower noise, support for bipolar measurement occasions, new hardware Zero and amplitude modulation function. The application scenarios are wider and more flexible.
Features:
- Sensor supply voltage provided by module, no external power supply required

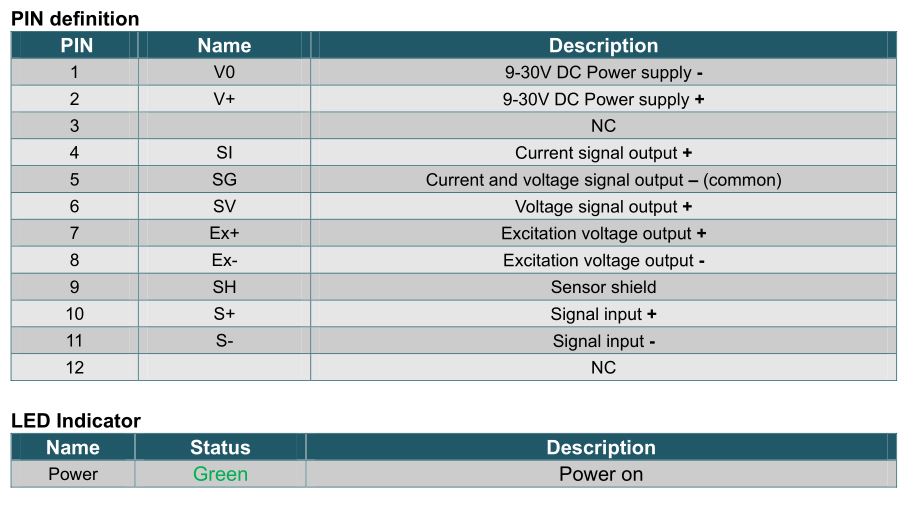

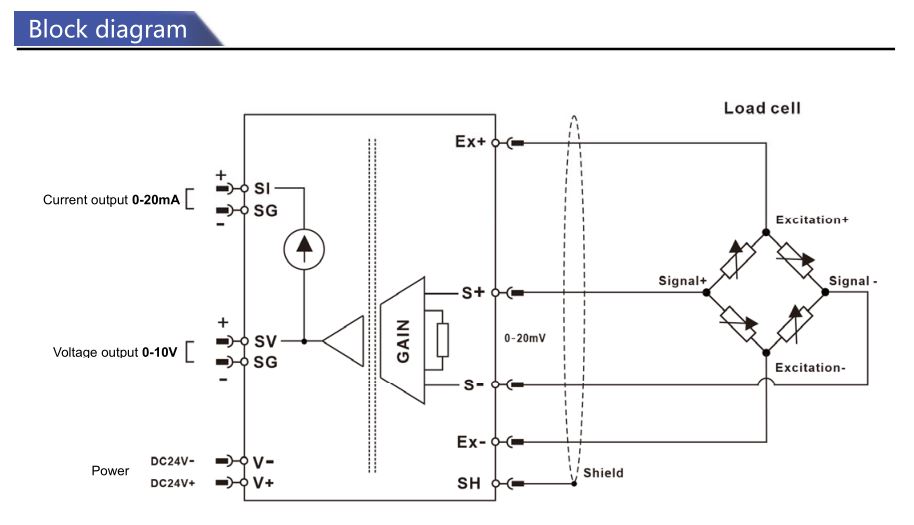

- Connection of the strain gauges with 4-wire technology
- The overall maximum non-linear error is better than 0.01% F.S.
- Suitable for 1mV/V ~ 4mV/V sensitivity sensor

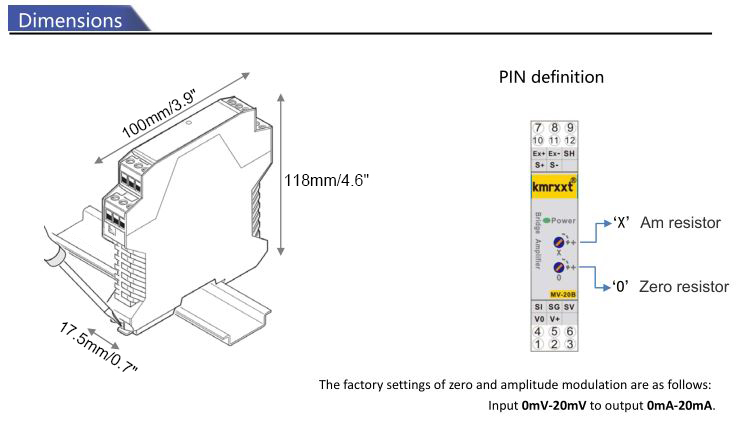

- 35mm/1.4" DIN-rail mounting, space-saving slim 17.5mm/0.7" device
- All connections can be plugged in using a screw terminal block
- Suitable for tension and pressure bipolar measurement occasions
- Adjustable standard signals include 0-20mA/4-20mA, 0-10V and ±10V
Package Included:
- 1 x Amplifier
- 1 x 3P Terminal Block
