MV-E1005S H.265 Full HD Video Encoder HDMI Encoder 1 Way Video Independent Audio

MV-E1005S H.265 Full HD Video Encoder HDMI Encoder 1 Way Video Independent Audio

Product Description:
- MV-E1005s is HDMI interface professional HD audio video encoder.
- Support 1 way HD HDMI audio video and 1 way 3.5mm independent audio acquisition function.
- Encoding output dual code stream H.264/H.265 format.Audio MP3/AAC/G711 format.
- Adjustable encoder code rate,frame rate and output resolution.Support interlacing.
- Support HTTP/HLS/FLV/RTSP/RTP/RTMP/UDP/ONVIF transmission protocol.ES/TS stream freely transfer.
- Widely used in IPTV,OTT,live broadcast,security monitoring areas.

Features:
- Main and secondary stream simultaneous output
- Built-in LINUX
- ONVIF protocol,support NVR,encoder,platform software.
- Multi encoder level:H.264/AVC High profile(the max level 5.1),compatible Main profile & Baseline;
- Encoder control VBR/CVB(optional)
- TS single packet number:3-128;
- Tested support main home video broadcast platform:Mango TV,Mango live,Tencent video......
- Tested support international video broadcast platform:YouTube,UStream,Twitch
- Tested support streaming media service platform/CDN system:Wowza,FMS,RED5,SRS,Xtream Codes,Media Server,Alibaba Cloud Computing, AoDian
- Support image rotation,image cutting,gray-scale pattern special image process
- Support character/image overlay function,coordinate adjustable
- Support no signal source input image customed
- Support interlacing
- Support fast function customized

Specification:

Interface:
- Video input:1x HDMI input
- Audio input:HDMI built-in audio,3.5mm independent audio
- Wire network:1xRJ-45,1000M self-adaption Ethernet

Signal & Format:
- HDMI signal:HDMI 1.3 downward compatible,4K 1.4
- Support video format:
1080p23.98/24/25/29.97/30/1080p50/59.94/60/1080i50/59.94/60/720p/30/50/59.94/60
The resolution <=1920x1200 other video resolution format
- Audio:HDMI audio(stereo),Analog Line-in/Line-out(stereo)

Network support:
- Wire/Ethernet:built-in support
- Media transmission protocol:HTTP/HLS/FLVRTSP/RTP/RTMP/UDP/ONVIF
- Private protocol:independent develop
- Control/manage protocol:Onvif 1.1/2.0,KCP,WindTalk compatible (private) protocol

Encode:
- Video encode:H.265/HEVC High profile (the max level 5.1),compatible Main profile & Baseline
- Video encode: H.264/AVCHigh profile (the max level 5.1),compatible Main profile & Baseline
- Audio encode: AAC/AAC+/AAC++/MP3,G.711(i-Law/a-Law）［other algorithmic scalable］
- Bitstream type:ES/TS (built-in LINUX)
- TS number:3-128,adjustable
- Video frame rate:5-60FPS
- Encode delay:<=67ms self-delay
- Video encode coding rate:32Kbps~32Mbps,adjustable
- Coding rate control:VBR/CBR,optional
- Interlacing process:process two fields,only bottom field,frame transfer
- Audio encode rate:48Mbps~320Mbps,adjustable
- Audio sampling rate:44.1 KHZ,48KHZ
- 64Kbps:G.711 encode

Manage method:
- Manage interface:Web
- Online firmware update:support
- Remote management:support
- Power supply:DC 12V/1A
- Working temperature:-20℃+80℃
- Relative humidity:20~90%RH,no condensation

Working environment:
- Whole power consumption:<5W
- PCB:6 layer board,1.5mm

Dimension & accessories:
- Weight:360g
- Dimension:168x128x28mm
- Power adapter:external DC 12V/1A

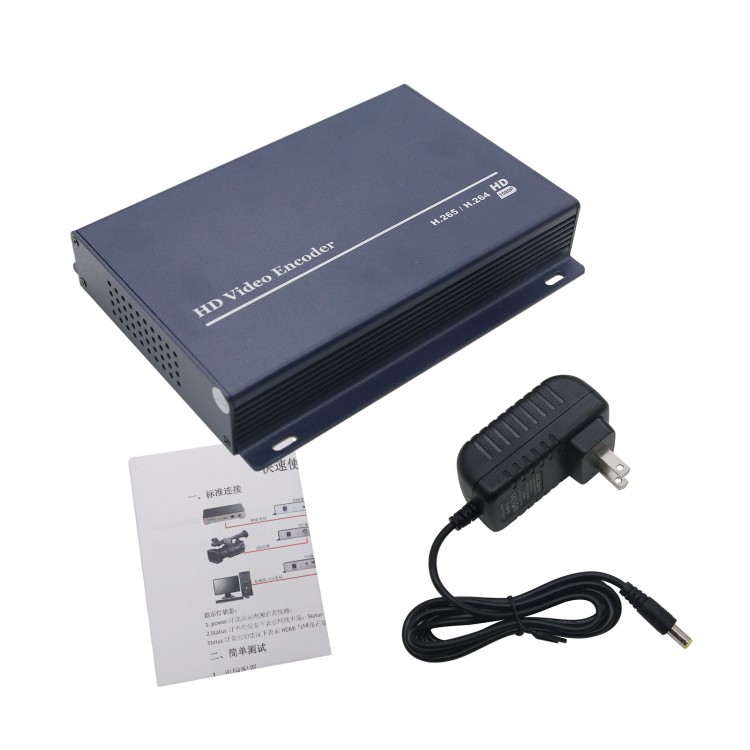

Package List:
- 1 x MV-E1005S H.265 Video Encoder
- 1 x Power adapter
