| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $361.55 | $354.17 | $343.10 | $328.35 | Contact US |

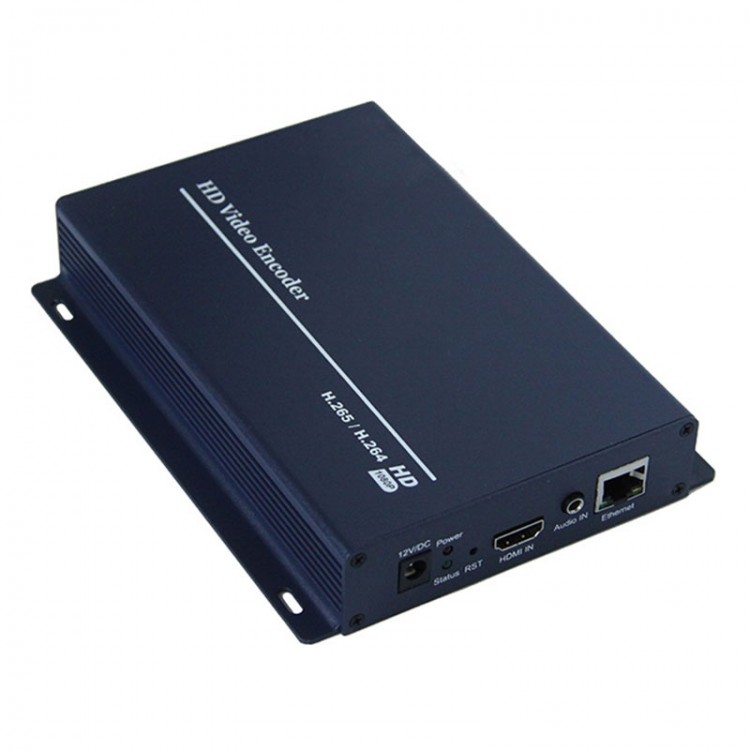

MV-E1005S-HDMI Video Encoder H.265 HDMI Input Hardware Encoding Support H.265 for IPTV
Description:
MINE H.265 encoder adopts newest efficient HEVC Hardware Encoder HD digital video compressed format, which is stable and reliable, with high definition, lower bit rate, and lower latency. The HD HDMI signal input will be encoded and compressed by DSP chip, and will output standard TS streaming. This H.265 HDMI video streaming HEVC encoder modulator can replace the traditional acquisition card, with hard compressing, which make the system more stable. It can be widely used on demands of capturing higher resolution, higher frame rate on HD video, and distributing the videos by IPs and internet. Besides, It can work as live video streaming encoder for different industries conveniently because of powerful extendibility.
Hard compressing ( HEVC Hardware Encoder )
- Support H.265 high efficient video encoding
- H.264 BP/MP/HP
- H.265 Main Profile
- Support AAC G.711 advanced audio encoding format
- CBR/VBR/ABR Bit rate control , 16kbit/s-16Mbit/s
- Support Network interface full-duplex mode 1000M
- Support 1 channel HDMI input, also supports VGA input via HDMI converter
- Support up to 720P, 1080P HD video input
- Support HDCP protocol and HD blue-ray
- Support protocol HTTP, UTP, RTSP, RTMP, ONVIF
- Clean WEB dashboard, Chinese and English are optional.
- Able to access the dashboard remotely by LAN;
- Support the double streaming output, main streaming + second streaming
- The main stream and the second stream can be set by different protocols separately;
- Be able to select different streaming resolution.
- Be able to load text water marks on streaming video with adjustment on fonts and position by X,Y Coordinating
- Support photo watermarks on streaming video
- Support one key to reset
- Compatible with decoding on Set Top Box
- Energy saving
- Support video and audio preview, can find the error at any time.
Applications:
- As HD encoder for IPTV
- Digital HD/SD streaming sever.
- Video conference
- Replace HD Video Card
- Hotel cable TV system
- Live and recording broadcast for operating room.
- Live and recording broadcast for education
- Digital HD live and recording broadcast for courtroom.
- Access to network monitoring platform, support recording broadcast
Package Contents:
- 1 x Encoder
