| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $55.06 | $53.93 | $52.25 | $50.00 | Contact US |

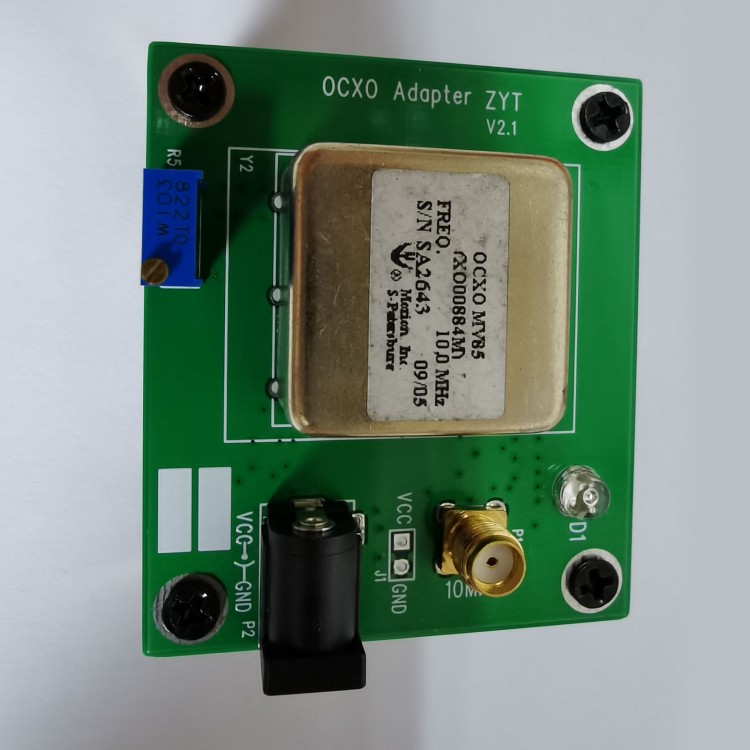

MV85 10MHz OCXO Frequency Standard Oven Controlled Crystal Oscillator Low Phase Noise 5V Sine Wave
Description:
It is a high-precision OCXO. And it is shipped after 7 days of power-on aging. Its accuracy has been adjusted to ±0.001Hz. 53220A for Agilent is used to detect its accuracy, using an atomic clock (reference standard) calibrated by a GPSDO.
Power supply DC5V ≈500mA, 5.5*2.1 power port and output port SMA-KE.
Daily aging data: seven-day average 10E-9; after seven days, the daily aging is 5*10-9.
After 5 minutes of power-on, its accuracy can reach 0.1ppm; after 15 minutes, it can reach 0.01ppm; after 1 hour, it can reach 0.001ppm.
Output 10MHz sine wave, +7±2 dBm and measured impedance 50 ohms.
The frequency standard boasts low phase noise, low noise, and reliable performance. Its small size makes it easy to carry. Therefore, it is a reliable reference source for frequency meters.
Featuring excellent short-term stability and low power consumption, it is stable and fast. Placing it in a metal box can significantly improve its temperature drift.
Package Included:
- 1 x OCXO Frequency Standard
