MVP DMA Board Basic Version General Firmware Direct Memory Access + KMBox Net Network Keyboard and Mouse Controller

MVP DMA Board Basic Version General Firmware Direct Memory Access + KMBox Net Network Keyboard and Mouse Controller

DMA Board Features:
Artix-7 FPGA
The PCIe board for LeetDMA contains a 7 series Artix-7 35T FPGA chip designed for highest performance.

SuperSpeed USB3.0
The device can communicate over USB3.0 up to 160MB/s. The FT600/FT601 is a SuperSpeed USB3.0 to FIFO interface bridge chip that provides up to 5Gbps of bandwidth.

Fully Compatible
It's 100% PCILeech compatible. PCILeech uses the PCIe board for LeetDMA to read and write to the target system memory. It is also usable with any PCILeech compatible software.

User Friendly
With the On-Board JTAG you can flash the board for LeetDMA easily with just an USB connection from the Update Port. You are not forced to use complicated JTAG cables.

Flashing
OpenOCD can be used to easily flash your own firmware to the device.

Customized Firmware
The board for LeetDMA comes pre-flashed with a fully customized firmware so it looks like a usual device for any software on the host system. Just plug it in and start using it without the need of flashing.

The board also has a physical "Kill-Switch" which can be used if you don't want to use the DMA-Board but don't want to remove it from your computer and also a connector for an external Kill-Switch.

KMBox-Net Features:
- Security: its protocol is not publicly available and cannot be characterized. No need to install a driver. Each box has independent IP, port, and hardware encoding.
- Strong stability: no white screen restart when used like serial communication.
- Fast speed: the communication speed of the 100M network is 100 times that of the original B board (compared to 115200 baud rate). The number of calls per second is close to 1000. Originally, Board B only made 300 calls per second. Calling too fast will cause a white screen restart.
- Automatic default manual trajectory without keyboard and mouse data abnormalities, please refer to kmNet_ mouse_ move_ auto function.
- Strong universality: no need to adapt to a mouse.
- The Device side supports modifying all USB parameters and network updates. Everyone has different eigenvalues, which realized true one person one firmware mode.
- Friendly UI mode. It's easy to see where the problem is. Super simple operation.
- Supports all functions of the B board except for onboard scripts.
- Support monitoring of physical keyboard and mouse. Block physical keyboard and mouse functions. Easy to write software.

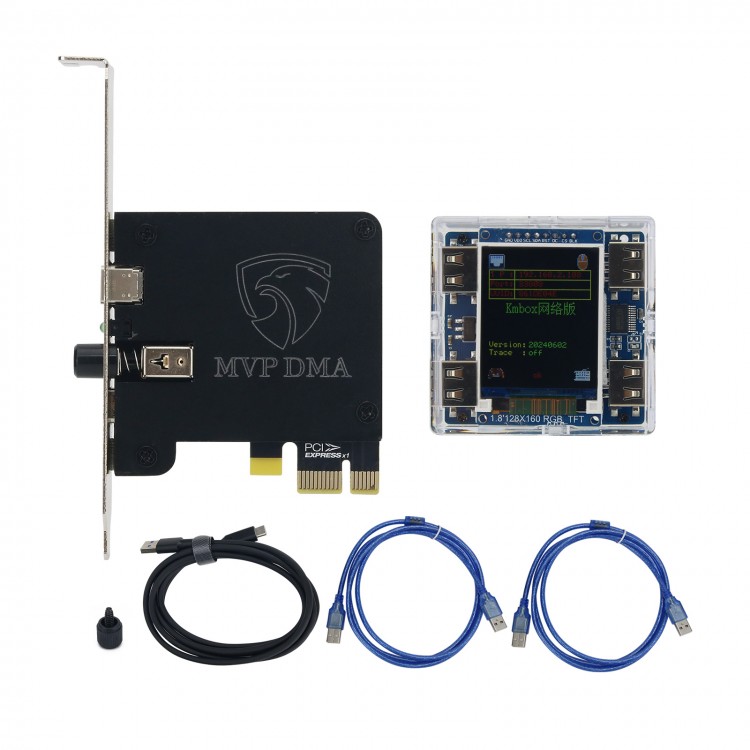

Package Included:
- 1 x MVP DMA Board
- 1 x KMBox-Net
