MVP DMA Board Basic Version General Firmware + Kmbox B+ (Pro) Keyboard Mouse Controller with Screen for LeetDMA

MVP DMA Board Basic Version General Firmware + Kmbox B+ (Pro) Keyboard Mouse Controller with Screen for LeetDMA

DMA Board Features:
Artix-7 FPGA:
- The PCIe board for LeetDMA contains a 7 series Artix-7 35T FPGA chip designed for highest performance.

SuperSpeed USB3.0:
- The device can communicate over USB3.0 up to 160MB/s. The FT600/FT601 is a SuperSpeed USB3.0 to FIFO interface bridge chip that provides up to 5Gbps of bandwidth.

Fully Compatible:
- It's 100% PCILeech compatible. PCILeech uses the PCIe board for LeetDMA to read and write to the target system memory. It is also usable with any PCILeech compatible software.

User Friendly:
- With the On-Board JTAG you can flash the board for LeetDMA easily with just an USB connection from the Update Port. You are not forced to use complicated JTAG cables.

Flashing:
- OpenOCD can be used to easily flash your own firmware to the device.

Customized Firmware:
- The board for LeetDMA comes pre-flashed with a fully customized firmware so it looks like a usual device for any software on the host system. Just plug it in and start using it without the need of flashing.

- The board also has a physical "Kill-Switch" which can be used if you don't want to use the DMA-Board but don't want to remove it from your computer and also a connector for an external Kill-Switch.

Keyboard Mouse Controller Description:
- The B+ version is Pro version. Dual computer means that computer B can control computer A. The software runs on computer B, and no software is running on computer A. The B+ serial port is connected to computer A, which is the same as connection of B version which is a stand-alone mode.

- Where the serial port is inserted, the serial port driver is installed. Install the CH341 drive, or install the drive wizard for automatic installation.

This version is an upgraded version of Kmbox B. The main differences are as follows:
- Separate the communication serial port from the original keyboard and mouse, which can easily realize dual computer control (USB receiving computer A, USB2 is connected to control computer B, USB3/4 is connected to keyboard and mouse, which can realize the function of computer B controlling computer A).

- The usage of the B+ version is consistent with that of the Kmbox B version, and all APIs are compatible. If you need to operate dual computers, you are recommended to buy the B+ version. Serial port is connected to AI analysis computer B. Controlled terminal computer A. Computer B can directly control computer A.

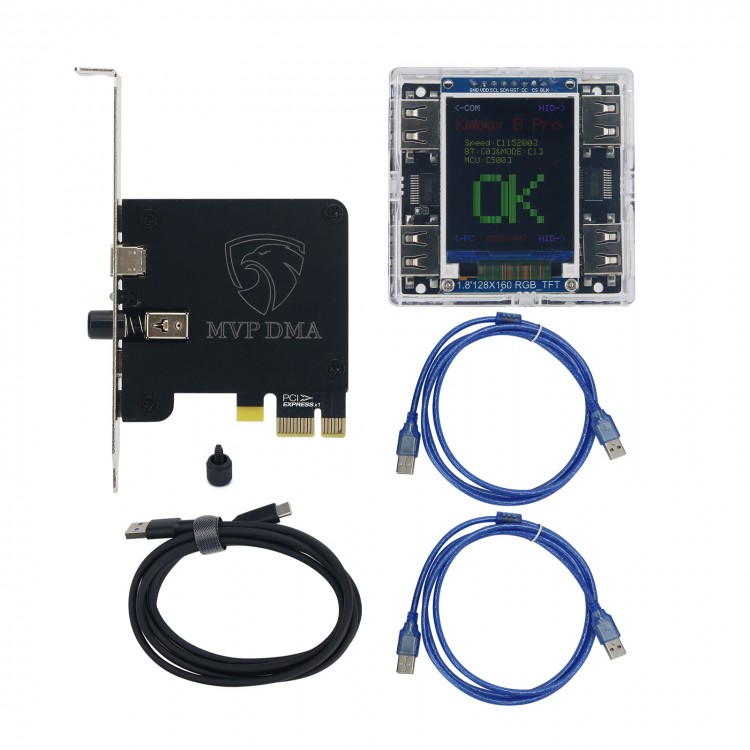

Package Included:
- 1 x MVP DMA Board
- 1 x Kmbox B+ with Screen
