MVR2EB 14M/45.9FT Laser Distance Sensor VCSEL Outdoor Laser Distance Measuring Sensor TOF Module

MVR2EB 14M/45.9FT Laser Distance Sensor VCSEL Outdoor Laser Distance Measuring Sensor TOF Module

Features:
- Low-cost outdoor TOF laser ranging sensor module
- Long distance measurement: 0.3-14M/1-45.9ft
- Measuring speed is adjustable from 1 to 200HZ. Users can enter the command to set the maximum frame rate measured by the module (the maximum frame rate will be affected by the exposure time. For example, set it to 200HZ to measure the frame rate, when the exposure time is 1.6MS, the measurement frequency may be around 100HZ)
- Distance measurement under strong outdoor light. Using 850NM infrared VCSEL light source, easy and accurate distance measurement
- Weight is only 9g/0.02 lb. Suitable for scenarios with strict loading requirements
- Metal nut are stable and reliable. Repeatable loading and unloading, to ensure that the product does not produce displacement during use, more accurate and stable

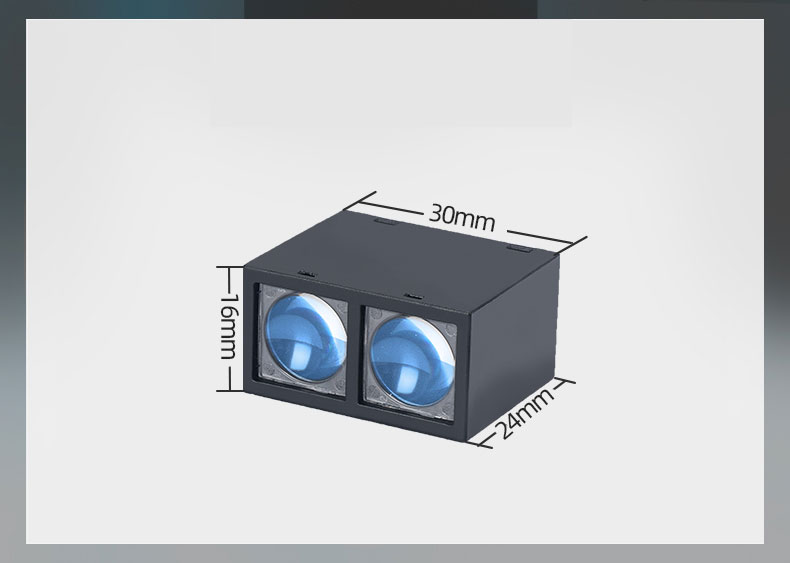

- Compact size (30 x 16 x 24mm/1.2 x 0.6 x 0.9") enables easy installation and integration
- Only 0.4W low power consumption. It is suitable for scenarios with battery power supply or low power consumption requirements. The power will vary according to the actual measured distance
- Good consistency. The ranging module has undergone multi-channel correction calibration and testing before shipment to ensure good performance stability when applied to products in batches on a large scale
- Provides two UART serial output data formats, HEX and ASCII
- Support PC software
- Widely used in intelligent transportation, robots and other fields

Package Included:

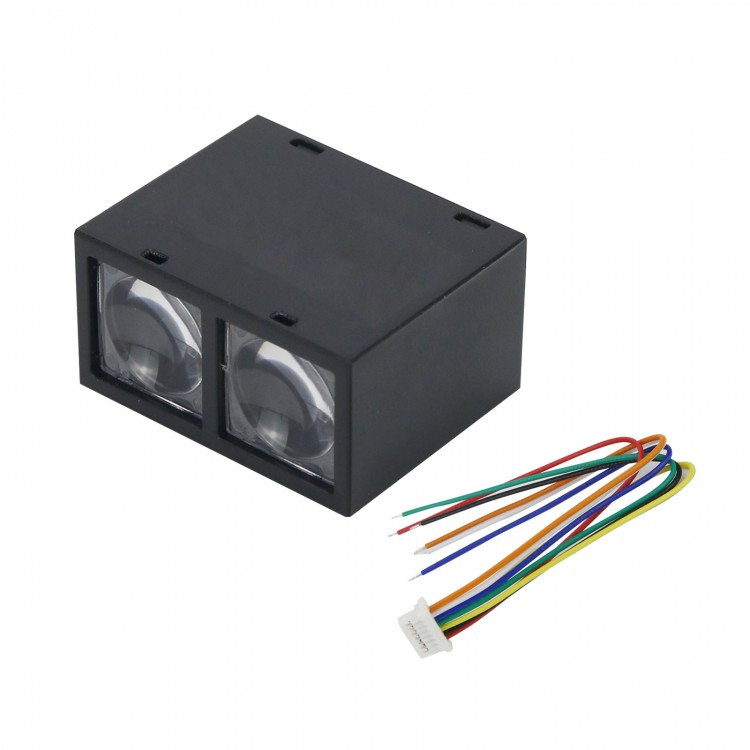

- 1 x Set of Laser Distance Sensor

Note:
- Battery is not included.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
