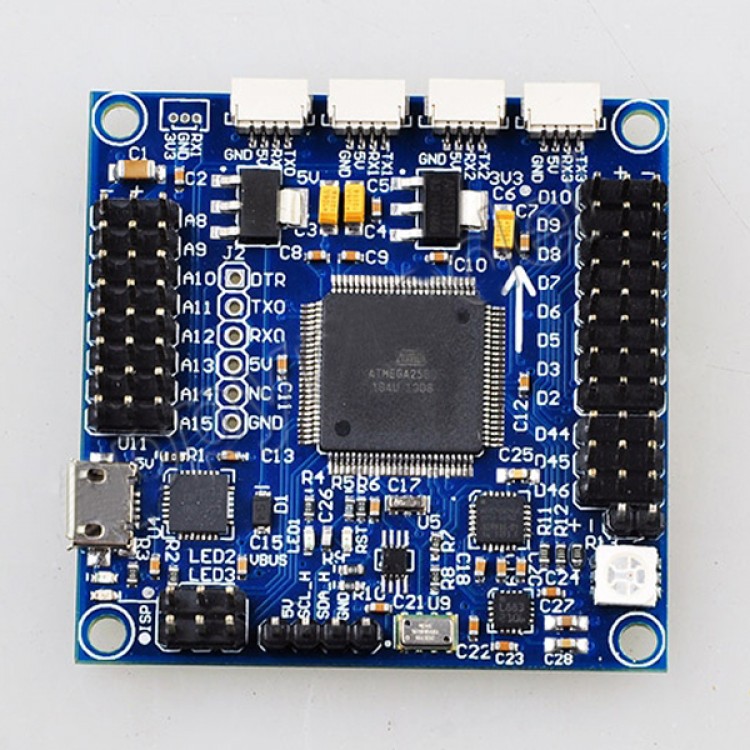

MWC Mega 3.0 MegaPirateNG Flight Control Top Version Multirotor Flight Controller +Happymodel GPS
Features:
- Support MegaPirateNG and MWC firmware
- Up to 8-axis motor output
- 8 input channels for standard receiver
- 4 serial ports for debug/Bluetooth Module/OSD/GPS/telemetry
- 2 servos output for PITCH and ROLL gimbal system
- A servos output to trigger a camera button
- 6 Analog output for extend device
- A I2C and ISP port for extend sensor or device
- Separate 3.3V and 5V LDO voltage regulator
- ATMega 2560 Microcontroller
- MPU6050 6 axis gyro/accel with Motion Processing Unit
- HMC5883L 3-axis digital magnetometer
- MS5611 high precision altimeter
- FT232RQ USB-UART chip and Micro USB receptacle
- On board logic level converter
- Match the standard of RoHS
*Pls note the pins of this version are straight in not bended
- Flight mode for MWC
- One of the following basic mode
- Acro
- Level
- Alt Hold
- Head Lock
- Optional mode
- HeadFree (CareFree)
- GPS Hold (Need GPS receiver or Extend Board)
- GPS Back to home position (Need GPS receiver or Extend Board)
- Flight mode for MegaPirate
- Acro
- Alt Hold
- Simple
- Loiter (uses GPS)
- Guided (uses GPS)
- Position (uses GPS)
- Circle (uses GPS)
- RTL (uses GPS)
- Auto(uses GPS)
- Follow Me(uses GPS)
Input power selection One of the following way
- Connect 5V power cable from ESC or UBEC to the ESC/Servo port, the J1 jumper must be closed.
- Connect 5V~12V power cable to the extend power port, the J1 jumper must be removed.
- When using Extend Board, AIO PRO must be powered from the extend power port.
Package included
- 1 x MWC Mega 3.0 MegaPirateNG Flight Control Top Version
- 1 x GPS(SKU:24925)
