MWC MultiWii Lite Lightweight Version 4-axis Flight Control Board QUADX

MWC MultiWii Lite Lightweight Version 4-axis Flight Control Board QUADX


With the same program for the open source compared to KK or ACM, MWC's more stable flight performance, flight skills required for novice lower debugging process more intuitive. Dedicated MWC GUI program can easily observe the PID parameters, flight control signal input / output status, sensor / switch-state, as well as aircraft attitude and heading sensor signal state of each group, sufficient for the initial configuration of the aircraft easier.
　
MultiWii Lite lightweight version supports the following aircraft models:
GIMBAL -------- PTZ stabilizer independent (non-flight control purposes)
BICOPTER ------ 2-axis aircraft Avatar
Tricopter ----- Y3 (Y-type 3-axis)
QUADP --------- 4-axis + classic mode
QUADX --------- 4-axis × mode
Y4 ------------ Y-type four-axis
Y6 ------------ Y-type 6-axis
HEX6 ---------- 6 axis + mode
HEX6X --------- 6-axis × mode
FLYING WING --- flying wing with a (non-multi-axis machine, the program is in testing phase).

Tool to connect the computer via FTDI, flight mode can be easily converted at any time.

MWC MultiWii Lite lightweight version of the hardware configuration:

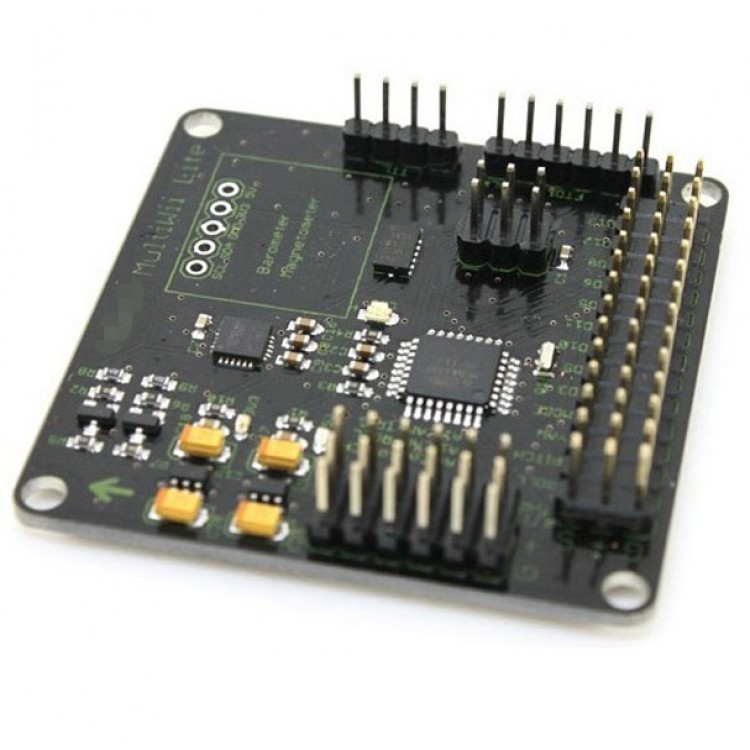

· ATMEGA328P microcontroller
· ITG3205 three-axis digital gyroscope
· ADXL345 three-axis acceleration sensor

MWC above the mainstream hardware platform with a combination of commonly used, which is equivalent to Arduino Pro Mini combined with 6DOF IMU sensors, integrated flight control design makes the work more stable.

MWC Lite in addition to the necessary input / output ports, expansion port also has sensors, magnetoresistive sensors are free to install and pressure sensors. In addition Lite also set aside a variety of expansion interfaces, can be used for OSD module, LCD liquid crystal module, Bluetooth module, the data transmission module, GPS module, satellite receiver, 3-axis head and other devices. With Chris MWC LCD module, outside the field ca

Purchase MWC Lite lightweight version of the flight control of the friends, we will provide detailed electronic manual, guide you to complete the set and enjoy the fun of flying!

MultiWii Lite
This is RTF multiwii controller.

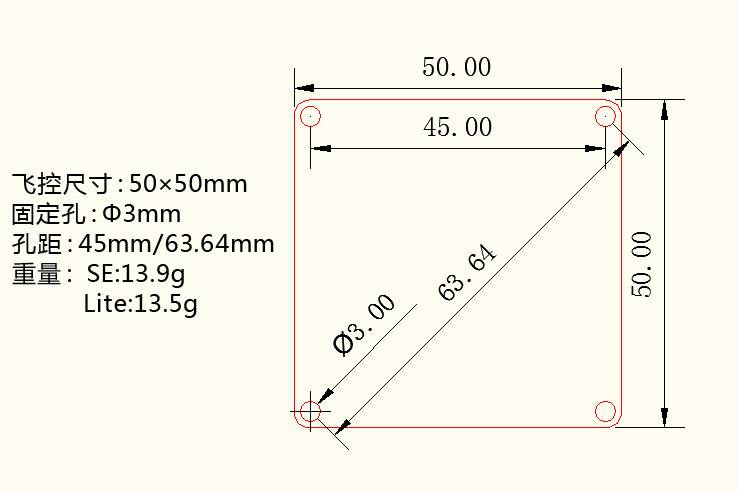

·Dimensions 50 mm X 50 mm
·Standard Mk style mounting holes 45mm X 45mm
·Weigh 13.5g
·SMD component design with atmega328P
·ITG3205 TRIPLE AXIS GYRO, ADXL345 ACCELEROMETER
·Design with servo output for Camera Pitch and Roll
·Separate 3.3v regulated supply for the sensors
·On board logic level converter
·All the out puts are labelled for easy identification.

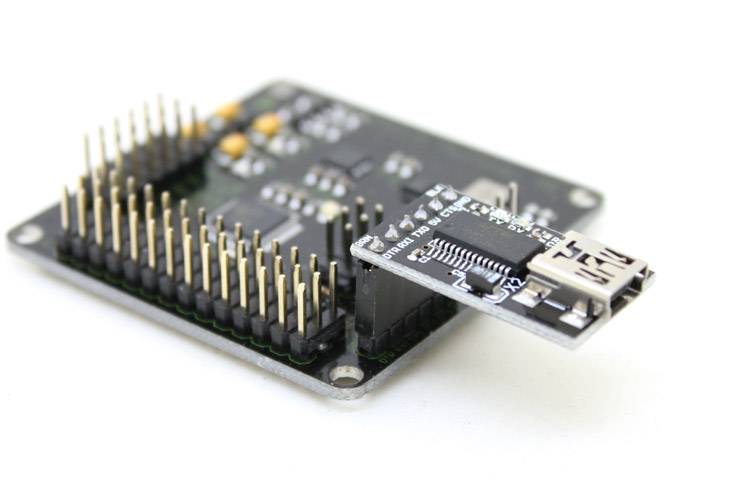

You can use FTDI Basic for easy programming.

Main links & info:

The main website of the owner of the MultiWii project is www.multiwii.com.
The main RC groups thread where all discussions are held can be found here.
Kinderkram & Blue Angel have made excellent build logs! They are available here and here.
Another very good post for initial set-up and basic questions from Shikra can be found here.

The source code can be found on the google code repository here.
You can use FTDI Basic for easy programming.


Tools must be used with FTDI. Please purchase it before you can make changes to the flight control program /upload, and adjust the parameters, Click Here to Buy:

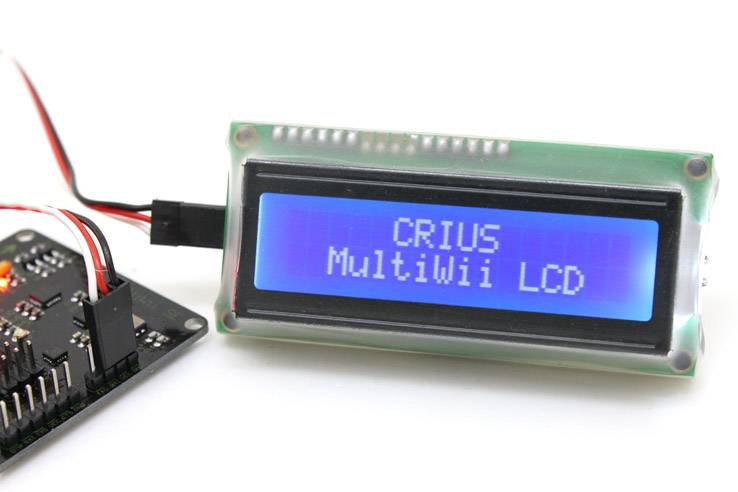

Field of LCD module debugging tools, away from home, we can not go with a computer connected FTDI transfer machine? I use these tools, use the remote control to adjust parameters at the same time, use it to view the parameters,Click Here to Buy:
