MWC MultiWii SE V3.0 Flight Control Board Standard Edition for Mini Aircraft

Availability: Out Of Stock

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$26.74	$26.20	$25.38	$24.29	Contact US

MWC MultiWii SE V3.0 Flight Control Board Standard Edition for Mini Aircraft

SE V3.0 Improvements:

- Optimize layout, signal input/output interface more reasonal

- Better six-axis gyroscope/accelerator sensor

- Special I2C level to IC

- With FTDI protection, avoding conflict between external power supply and USB power supply

- With I2C(5V Level) interface, could connect I2C-GPS navigation board/OLED monitor, etc

- Small size, could mount on mini aircraft, 31mm install pitch

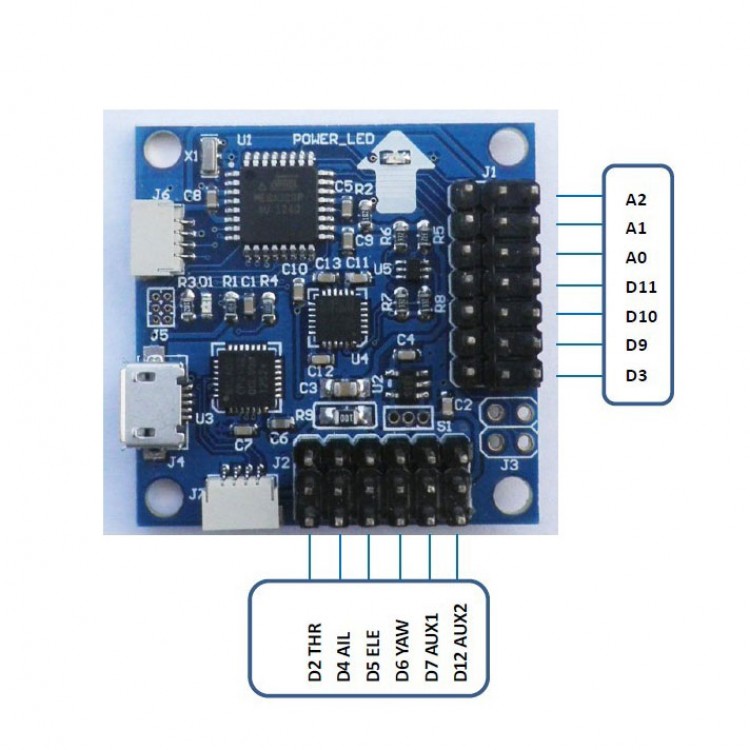

Hardware Features:

- Chip: ATMega328P

- MPU6050 digital three-axis gyroscope and three-axis accelerator

- BMP085 digital barometric sensor

- HMC5883L three-axis magnetoresistive sensor

- Segregate dual channel power regulator, 3.3V/5V Max.current 150mA/500mA

- Dual channel power indicator LED, 3.3V red/5V green

- High brightness status indicator Blue LED

- Special I2C level to IC

- FTDI interface with diode protection and 500mA current limit fuse
