MX-DAC Audiophile Class A Headphone Amplifier DAC Bluetooth 5.0 Digital Upscaling CS43198*2 DSD512

MX-DAC Audiophile Class A Headphone Amplifier DAC Bluetooth 5.0 Digital Upscaling CS43198*2 DSD512

Description:
Digital audio adopts the latest digital upscaling technology to significantly improve the quality of digital signals. It upconverts the traditional CD format to 352KHz or DSD format and then sends it to the DAC chip for processing. This can effectively reduce the signal loss during D/A conversion and make the sound closer to the original analog signal.

Features:

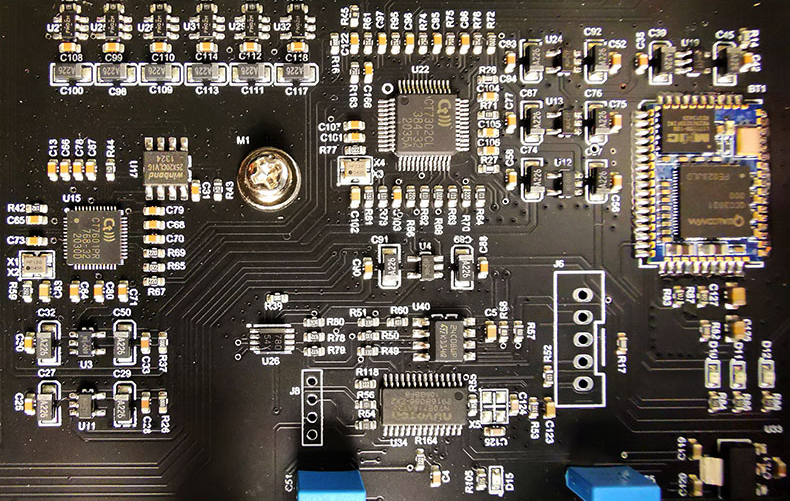

- Professional ASRC (Asynchronous Sample Rate Converter) chip, asynchronous transmission and data reformation technology can avoid jitter in the transmission process, improve SNR & dynamic range (≥190db); sound field and positioning are more precise, with cleaner and clearer sound
- The whole interface supports 5 upscaling modes, PCM/DSD format mutual conversion (reserved pass-through mode); 32Bit/352KHz/384KHz/DSD 64/DSD 128/ DSD256

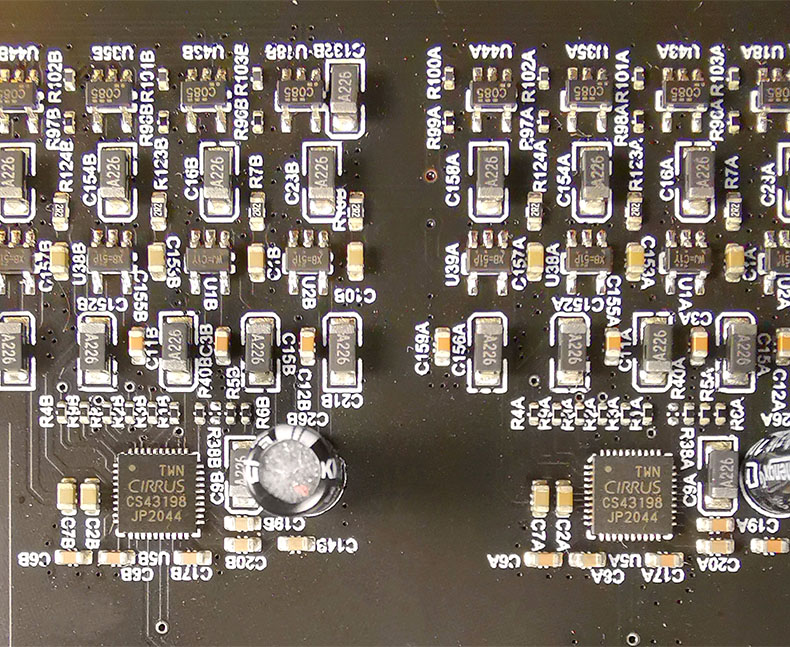

- Dual CS43198 decoding chips with better analog effect

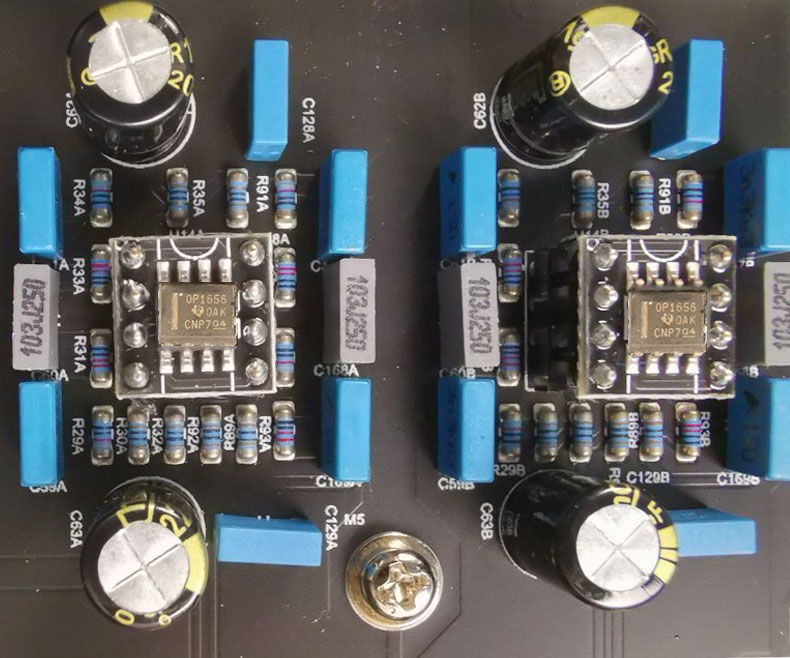

- FET input architecture op amp - OPA1656
- Bluetooth 5.0 for APTX-HD
- Dual I2S input interfaces compatible with various I2S signal decoding

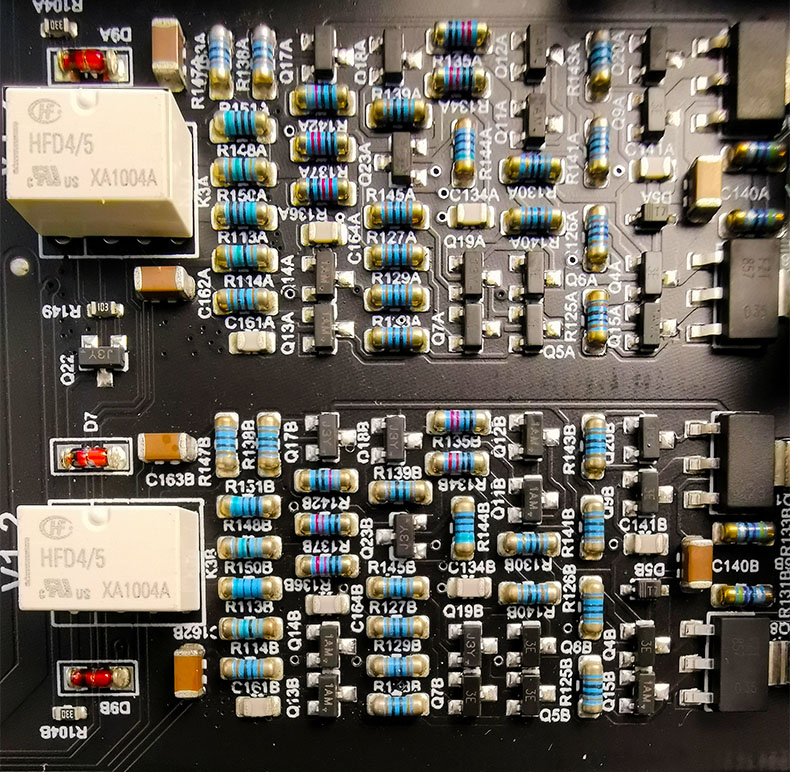

- Balanced input pure class A discrete amp circuit, with power up to 4000mw (2000mw +2000mw)
- Switchable high-impedance/low-impedance headphone mode, better suited for 32Ω-600Ω headphones

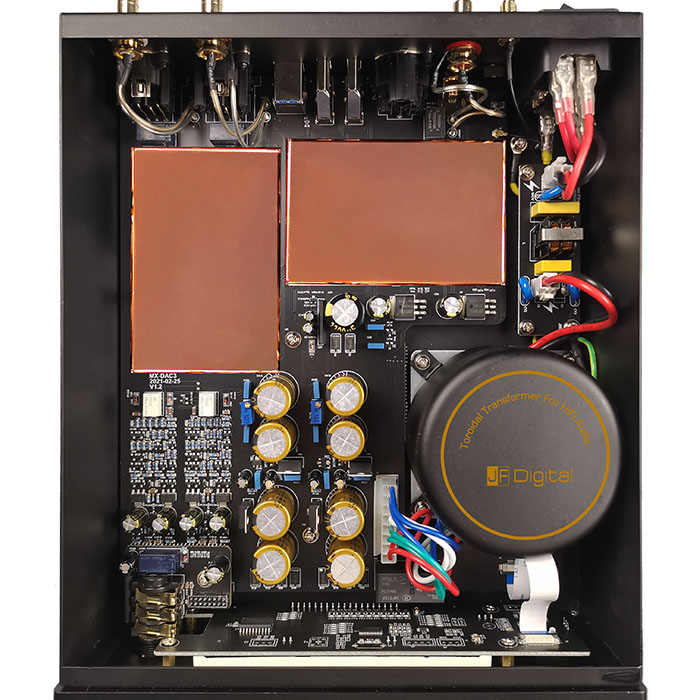

- Digital signal-DAC-power supply: key parts fully shielded to prevent space electromagnetic wave radiation interference
- FW Series audiophile audio capacitors for Nichicon

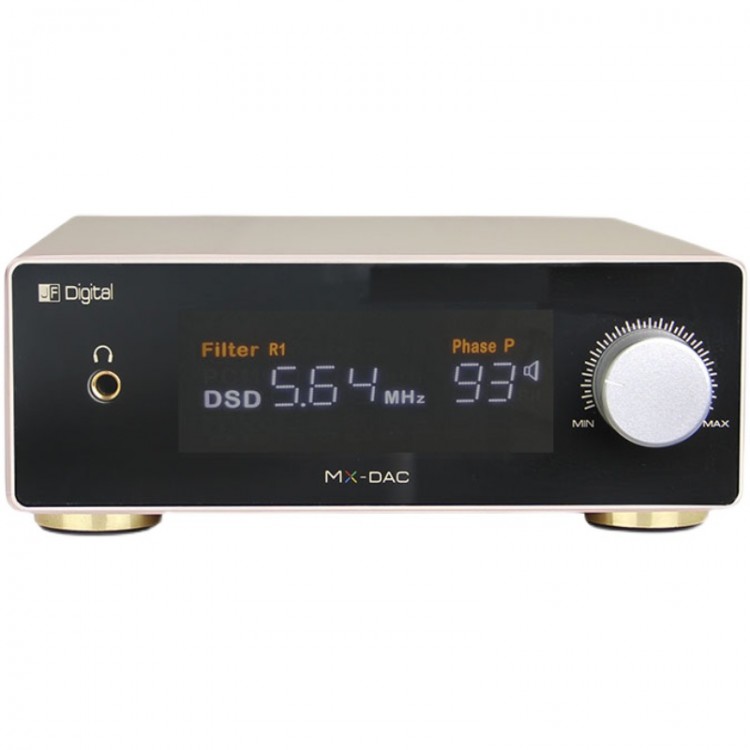

- 5" LED screen displays status information including channel, sample rate, volume and phase

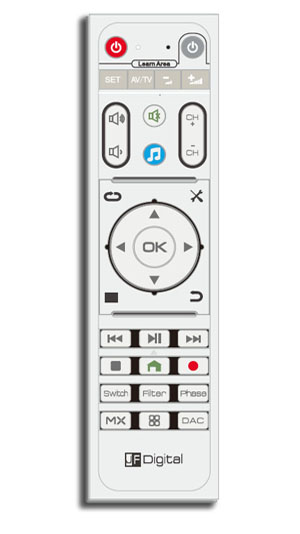

- Support operation via a remote control

Specifications:
Performance Parameters:
- Input format: PCM 32Bit/768KHz + DSD512
- Circuit Architecture: CS43198*2 + CT7302
- Clock: SRC clock circuit
- Screen: 5-inch display

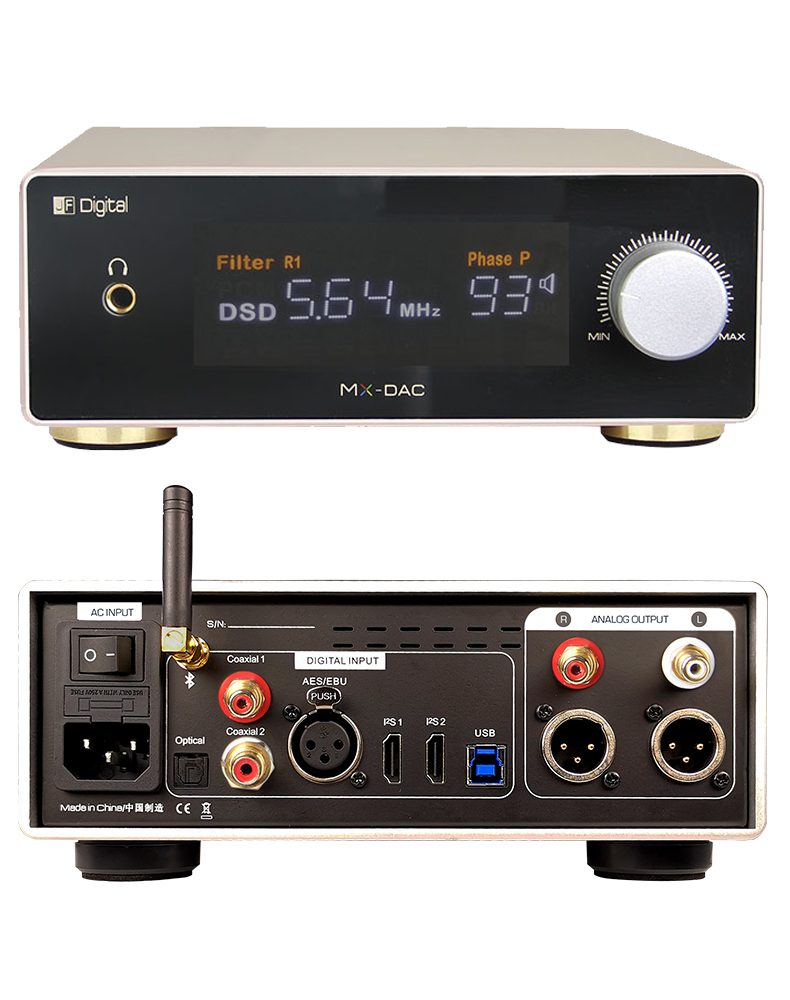

- Input interface: USB 32Bit/384kHz, DSD512 Native Dop128; Coaxial 24Bit/192kHz, Dop64; Optical 24Bit/192kHz, Dop64; I2S 32Bit/768kHz, DSD512 Native Dop128
- Bluetooth 5.0: 24Bit/48kHz for aptx HD

Analog Output:
- RCA output level: 2.8Vrms
- Balanced output level: 5.6Vrms
- Frequency Response: 10Hz~40kHz (±1dB)
- THD+N: ≤0.0005%
- SNR: >125dB (A-weighted)
- Dynamic range: >126db
- Channel isolation: >125db
- Amp output: pure Class A discrete amp (2000mW/32Ω)

Other Parameters:
- Dimensions: 220 x 250 x 76mm/8.7 x 9.8 x 3"
- Weight: 4kg/8.8 lb

Package Included:
- 1 x Set of Headphone Amp DAC

Note:
- Items in black will be delivered by default. Silver and golden are optional. If they are needed, please contact us. Thank you!
- Assembled and ready to use.
