My Flydream FD AAT ATT V5.1 Auto Tracking Gimbal Antenna System FPV ATT 6CH

My Flydream FD AAT ATT V5.1 Auto Tracking Gimbal Antenna System FPV ATT 6CH

Description:
- Gimal weight: 905g
- Dimension: 165*107*40mm
- Input voltage: 12V
- Unload current: 100mA
- Max loading: 1 Kg(no balancing)/ 3KG(with balancing)
- Tilt angle: 0---90degree
- Level rotation: 0-360degree continuous unfinite space
- Tilt speed: 100degree/ sec
- Level speed: 200degree/ sec
- Available signal channel: 3-9

TeleFlyOSD:
- Weight: 8g
- Dimension: 45*25mm
- Input voltage: 6-9V(input range is 8-13V after adding voltage step down module)
- Consumption current: 200mA

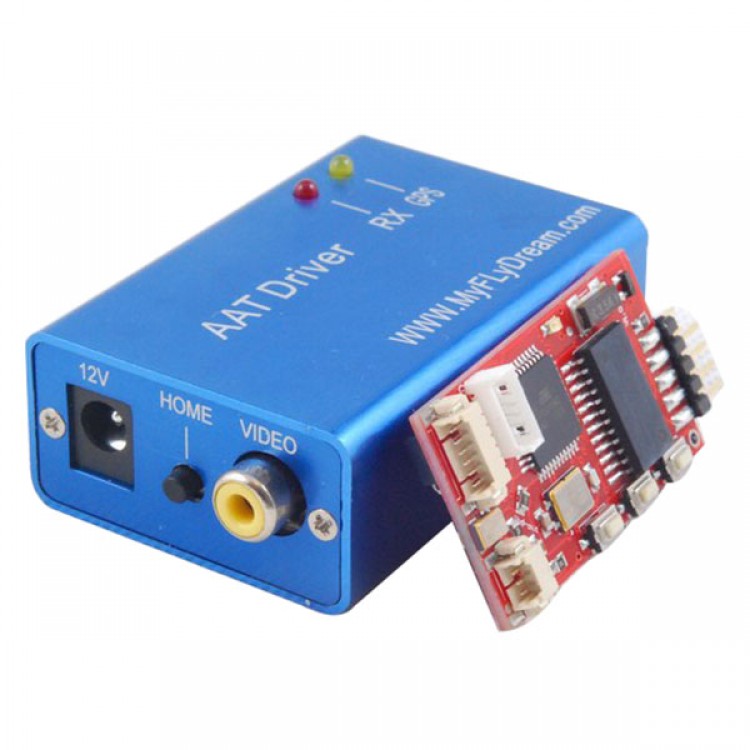

AATDriver antenna:
- Weight: 58g
- Dimension: 78*44*23mm
- Input voltage: 12V
- Unload current: 100mA
- Virtual GPS communication rate: 1200bps
- Virtual GPS: AATDriver can analog a bluetooth GPS, output $GPGGA and $GPRMC indicator, provide aircraft geographical position

Package includes:
- Tracking gimbal x 1
- TeleFly Pro x 1
- USB firmware upgrade downloader x 1
- Driver V5 antenna driver x 1
- Bluetooth adapter x 1
- Professional connecting cable x 4
- Shrinkable tube x 1
- Instal screw x 4

Note:
- This combe is not included GPS module, bluetooth adapter, GPS can be used with other GPS moudle that is compatible with OSD, or purchase seperately matched GPS module
- Not inlcuded high gainning pad antenna.
