MYJG 50W CO2 Laser Power Supply CNC Engraving Cutting Machine 110V 220V AC

MYJG 50W CO2 Laser Power Supply CNC Engraving Cutting Machine 110V 220V AC

Product Main Features:
- Good compatibility: it can be applicable to 50W Laser Tube manufactured by various factories.
- Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
- Easy control: the start and stop of laser can be easily controlled by TTL level.
- The power supply has output open circuit protection.
- The power supply has TTL signal indication, water through signal indication and laser output indication.
- This power supply has the Buttonto test output laser manually.
- Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.

Specification:
- Input:  Input Voltage: AC220V(Need AC110V ,please specify ,when order); AC frequency:  47 - 440HZ; Max Input power: 440W; Max Input current: 3A
- Output:Max output voltage:  DC22KV  Max output current:  DC22mA
- Efficiency:  >/=90%(Full load)
- MTBF: >/=10000 Hours
- Response speed: ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
- Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
- Environment: Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90%
- Cooling: Force-Air Cooling (fan cooling)

Operation Instruction:

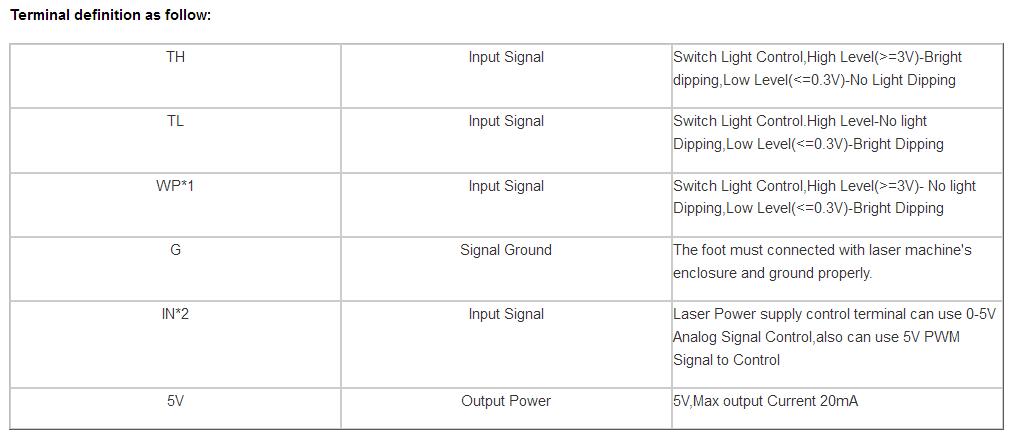

- Laser Tube connection: (Refer to Power supply and laser Device's connection Diagram) High voltage terminal of HY-T60 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.

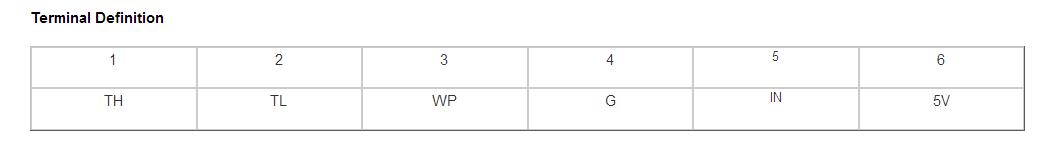

- Connection of control signal( Refer to Power supply and control board's connection Diagram) The control signal shall be reliably connected to control terminal of the power supply HY-T60,after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal whether correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and protection switch WP connection is correct at same time.
- Voltage of power input: HY-T60's power input of the power supply shall be 220VAC/50Hz. If 110VAC required please specify when placing order.
- Others: A group of protection switches are also reserved for detection of water switch, fan switch,open-enclosure protection and so on.

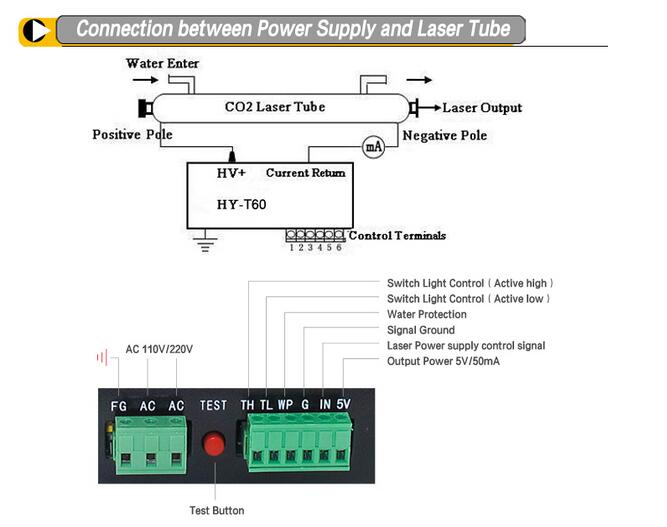

Connection Diagram:

Connection between Power Supply and Controller

Note: We have AC110V and  AC220V Input Voltage.Please let us know which do you want.

Paqckage List:
- 1    X   MYJG 50W CO2 Laser Power Supply Equipment
