N-type with Feed Amplifier LNA 10M-1GHZ 30DB Low Noise RF Power Amplifier For HAM Radio FM HF VHF
Specifications:
Frequency range: 10MHZ-1GHZ;
Maximum output power P1DB = 10DBM;
Gain: 30DB, noise coefficient: less than 2.5
Input connector: N-type male
Output connector: N-type female
Power supply mode: the power supply mode is adopted, with a wide power supply range of + 9V to + 24V (50mA)
Volume: length 8cm, width = height 2.5cm (including all prominent N-type interfaces)
Weight: 100g
Package List:
1 x Feed Amplifier

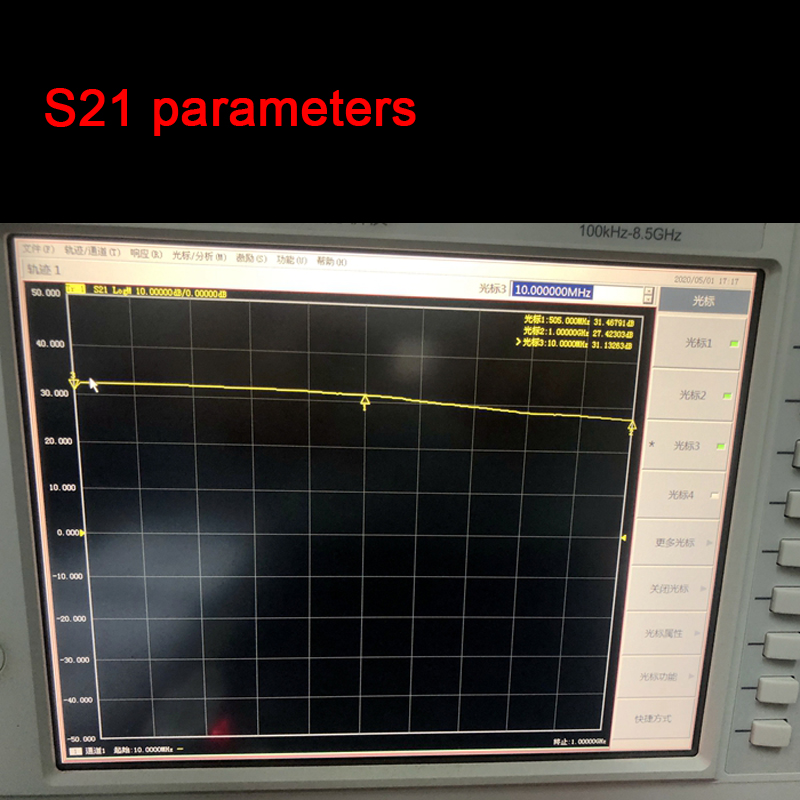

Measured S21 parameters

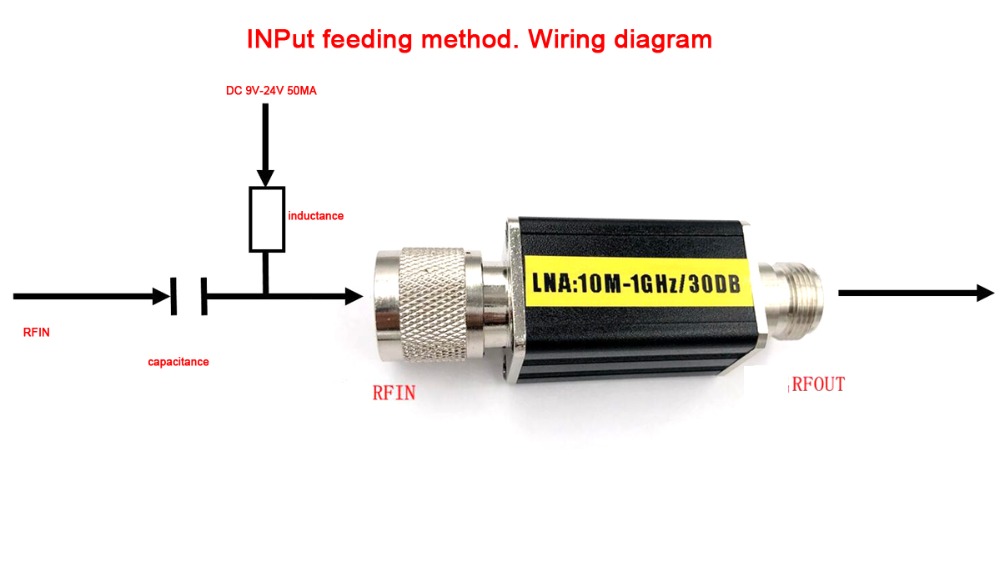

Wiring diagram using input feed mode

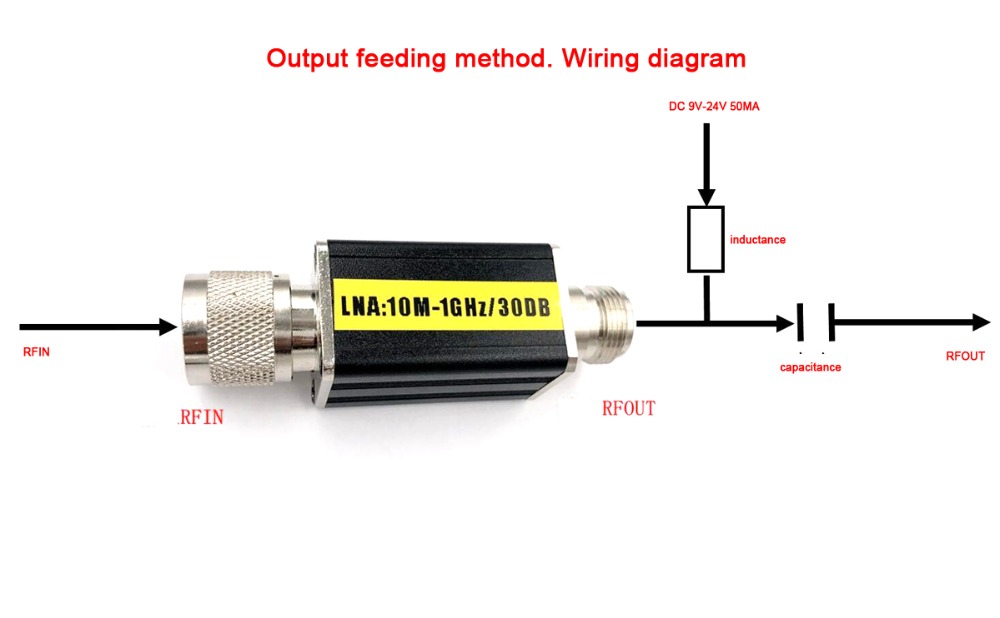

Wiring diagram using output feed mode
