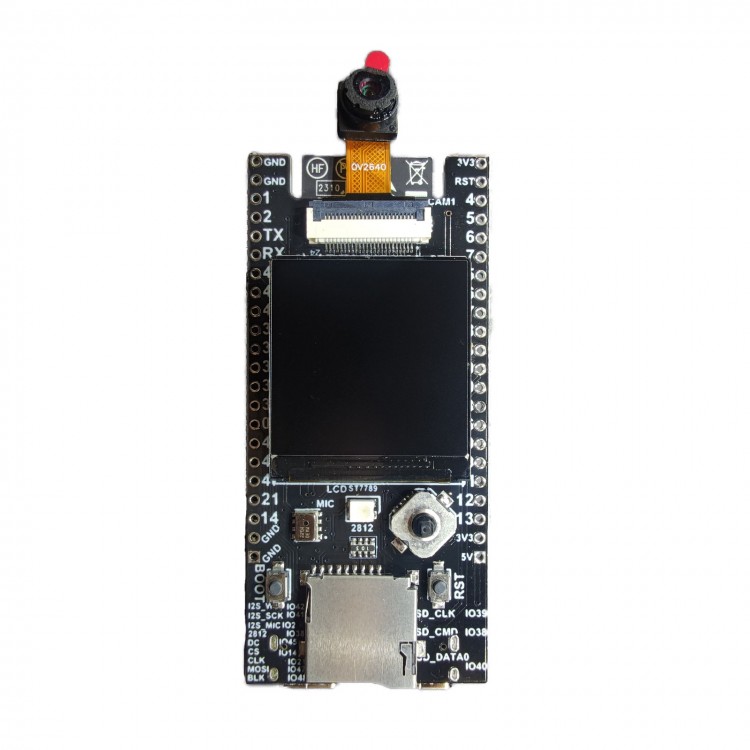

N16R8 Development Board Core Board 16MB Flash+8MB PSRAM Core Board with Screen and Camera Module Compatible with ESP32-S3-EYE

N16R8 Development Board Core Board 16MB Flash+8MB PSRAM Core Board with Screen and Camera Module Compatible with ESP32-S3-EYE

Function and Features:
- LVGL V7/V8/V9 version code
- WS2812 Lighting Control (RMT Control)
- Speech Recognition (Local Speech Offline Recognition Using LeXin Official ESP-SR Library)
- AVI Player
- USB HOST/DEVICE USB flash drive reads CDC transmission
- ESP-BOX porting
- Camera image acquisition and display on screen
- Recording save
- USB link 4G module
- MPU6050 data display waveform
- Facial recognition, cat face recognition, mobile monitoring
- QR code recognition

Interfaces:

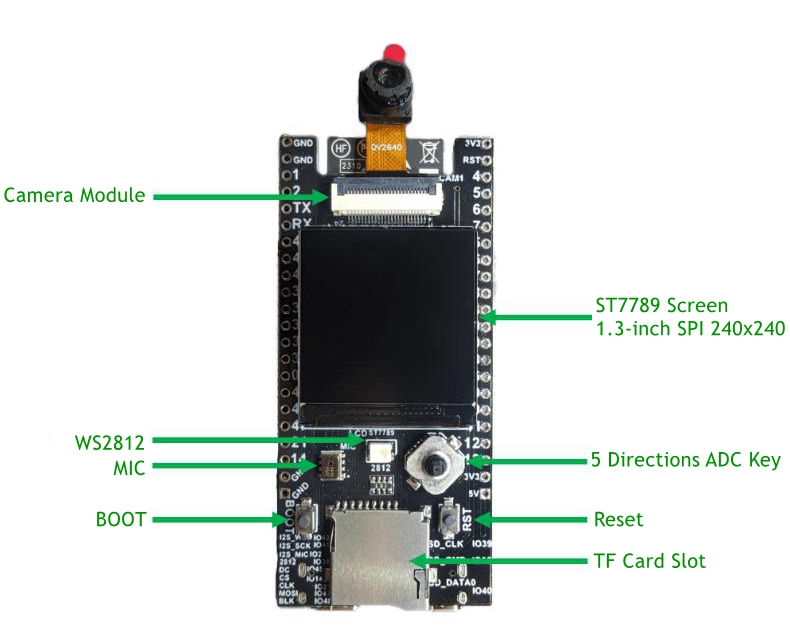

- SPI interface screen with 1.3-inch ST7789 IPS screen 240 x 240 SPI interface, not touchable.
- Onboard digital microphone MSM261S4030H0 uses I2S to read data.
- WS2812 has one IO38.

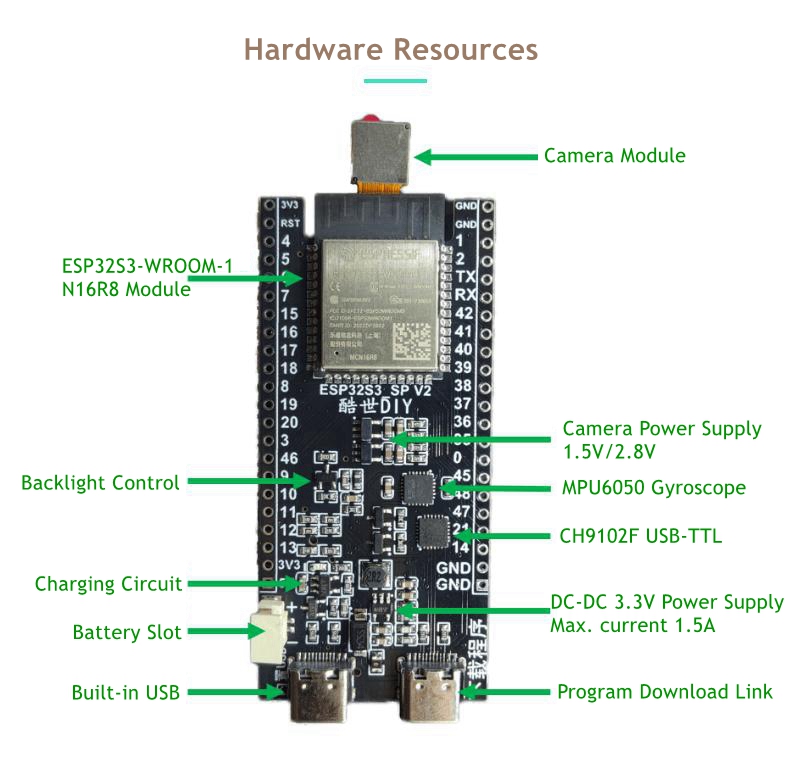

- Dual USB ports, one CH9102F, and one ESP32S3 USB port.
- The ESP32S3 module is equipped with 8M Flash and 8M PSRAM for use, and all 34 IO ports are available. If PSRAM is used, 31 ports can be used. IO35, IO36, and IO37 ports are not available.
- One ADC five way button is equivalent to five buttons.
- One TF card slot.
- Battery charging chip, which can be powered by batteries. (Battery is not included)
- MPU6050 gyroscope chip can obtain six axis acceleration angular velocity

Note:
- Battery is not included.
- Please contact us if you need the source codes and other resources after receiving the products.

Package Included:
- 1 x Development Board
