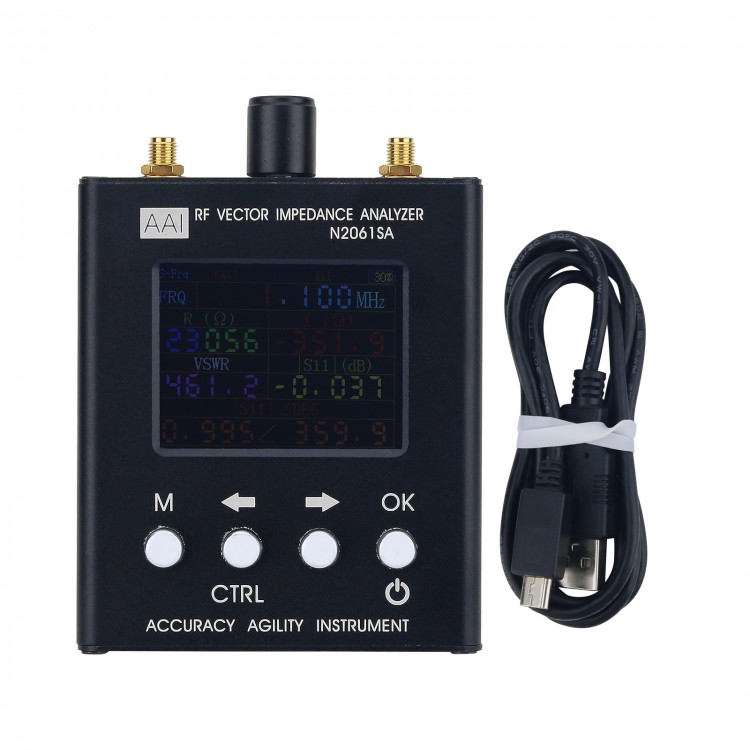

N2061SA Antenna RF Vector Analyzer High Performance RF Vector Impedance Analyzer 1.11MHz ~ 1300MHz
Description:
- N2061SA vector impedance analyzer is mainly used for testing the antenna, RF component impedance and the circuit board impedance.
- With built in high capacity lithium ion battery, N20 6 1SA series product is small enough to be placed in the pocket and really convenient for outdoor and high altitude special operations. Clear screen along with simple buttons make it easy to use as well.
- The N2061SA series includes the SW and the U HF and V HF , so it is the best choice for amateur radio enthusiasts.
Specification:
- Model: N2061SA
- S11 Working frequency: 1.11MHz ~ 1300MHz
- S21 Working frequency: 1.11MHz ~ 600MHz
- The frequency step by step: 1kHz
- Display: 2.4inch TFT resolution 320 x 240 (QVGA)
- Battery capacity: 2000mAH (7.4Wh)
- Power consumption: <1.5W
- Charging current: 400mA
- Charger port: USB (only act as charger port)
- Automatic power-off: settable (always power-on, 5 minutes ~ 60 minutes optional)
- Measurement parameters: resistance, reactance, s11, s21
- Resolution: 4 significant figures
- Frequency accuracy: <±10ppm
- RF Connector: SMA - K
- Measurement range:
Impedance: 1ohm ~ 1000ohm (The absolute value of impedance)
Standing: 1.000~65
S11 (dB): 0dB ~ -50dB
S21 (dB): 6dB ~ -60dB
- Scan points: 280
- S11 directivity: < 35dB (after calibration)
- Working temperature: 5℃~40℃
- Atmospheric pressure: 860hPa ~ 1060hPa
- Output level: -18dBm
More information:
- User manual: http://pan.baidu.com/s/1eSwfj0Y
- Video:
http://v.youku.com/v_show/id_XMjcwNzkxNzkwMA==.html?from=s1.8-1-1.2&spm=a2h0k.8191407.0.0
Package Included:
- 1 x Host
- 1 x Data Cable
- 1 x User Manual
