N750X USRP SDR Software Defined Radio 70MHz-6000MHz CNC Shell AD9364 Board Replacement For B200MINI

N750X USRP SDR Software Defined Radio 70MHz-6000MHz CNC Shell AD9364 Board Replacement For B200MINI

Description:
N750X software radio platform is an optimized and improved version based on B200MINI schematic diagram. RF switch channel is optimized to reduce the mutual interference between RX and TX. Although B200MINI can use a single antenna to transmit and receive, its wireless performance loss is huge. RF switch SKY13350-385LF used by B200MINI has a maximum isolation value of 27 dB typical at 2.5 GHz, but in full duplex mode, it will cause 0.4db loss of each channel and TX to RX input. This switch is optimized in N750X. Greatly improve transceiver performance, and increase the sensitivity of RF receiving channel.

This latest USB3.0 version software radio hardware platform can realize spectrum analysis with software for SDRWin.

This hardware adopts the design scheme for AD9364+Spartan-6 75K, which can directly replace the USRP B200 product, and the onboard high-precision VC-TCXO. It is mainly used for 4G base station testing abroad.

Function Description:
- ADC/DAC: AD9364
- MODE: RTX
- FPGA: For Spartan-6 75K
- Maximum sampling rate: 56MSPS
- CLK IN: External clock or PPS input, support external 10MHZ clock or GPS PPS signal input
- RX: Wireless receiving SMA, maximum input 0db
- TX: Wireless transmission SMA, maximum gain>+14db
- CLK SYNC: PPS signal heartbeat indicator
- CLK LOCK: Clock synchronization lock indication
- USB: USB3.0 or USB2.0 automatic switching interface

Application:
1. GSM micro base station (for openBTS)
2. LTE micro base station (for srsLTE)
3. Spectrum analysis (for sdrwin)
4. 6G signal source (for sdrwin)
5. Other SDR applications

Package Included:

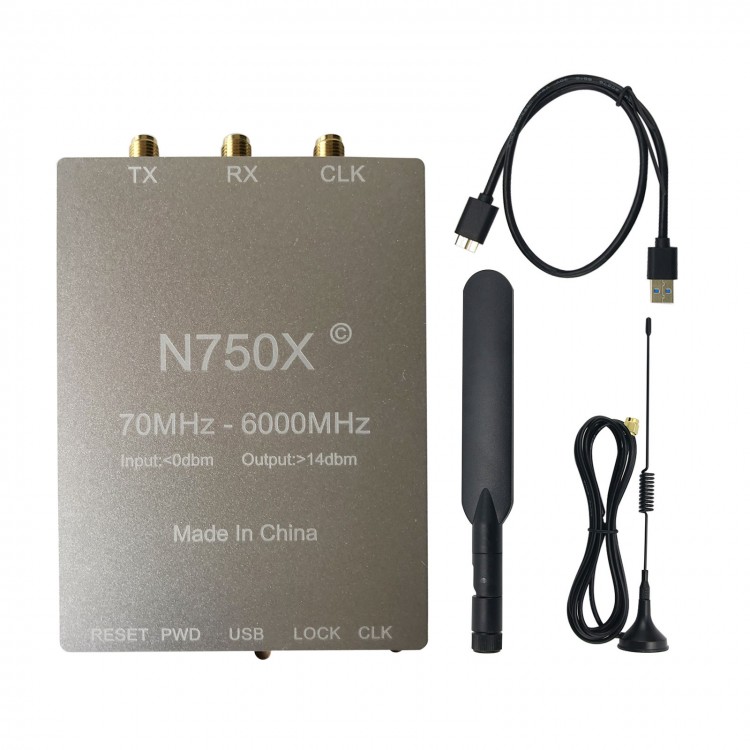

- 1 x N750X with CNC shell
- 1 x USB3.0 Connecting Cable
- 1 x 2.4G Antenna
- 1 x LTE Antenna
- 1 x Sub 1G Antenna

Technical Support:
- For Software/Hardware/MATLAB/SDRWIN

Download Software:
- link for http://sdrwin.com/downloads/sdrwin.zip
