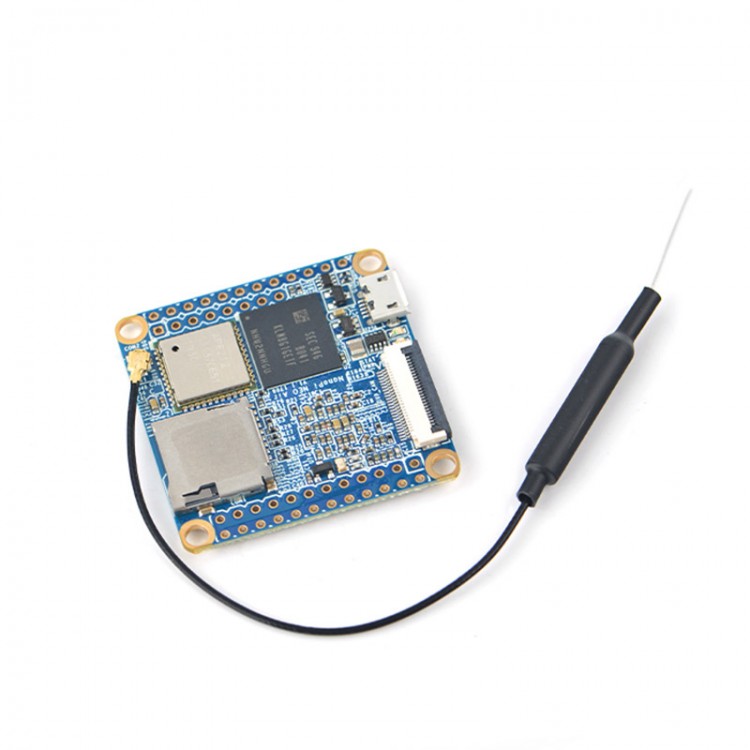

NanoPi NEO Air 512M RAM + 8GB EMMC IoT Development Board WiFi Bluetooth For Allwinner H3 UbuntuCore

NanoPi NEO Air 512M RAM + 8GB EMMC IoT Development Board WiFi Bluetooth For Allwinner H3 UbuntuCore

Download Materials:
- WiKi tutorial (firmware introduction, instructions for use, operation steps, etc.): http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO_Air
- System firmware download: https://dl.friendlyarm.com/nanopineoair
- Schematic diagram (pdf format): http://wiki.friendlyarm.com/wiki/images/7/70/Schematic_NanoPi-NEO-Air-V1.1_1708.pdf
- Dimensions (dxf format): http://wiki.friendlyarm.com/wiki/index.php/File:Dimensional-NanoPi_NEO_Air-V1.1-1708.rar

Attention:
When NanoPi NEO Air uses wireless network or Bluetooth, you need to connect an antenna to use.

Hardware Characteristics:
CPU:
- Model: For Allwinner H3
- Number of Cores: Quad-core
- Frequency: 4* for Cortex-A7 Up to 1.2GHz

Memory:
- RAM: 512MB

Storage:
- eMMC: 8GB
- MicroSD Slot: MicroSD*1 for external storage up to 128GB

Connectivity:
- WiFi: 802.11b/g/n
- Bluetooth: 4.0 dual mode
- Antenna*1: IPX Connector

Audio:
- Audio input/output Port: 2.0mm pitch 4-pin header

Video:
- DVP Camera: 0.5mm pitch 24 pin FPC seat

USB:
- MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A
- USB Host: 2.54mm pin*2

Pin-header:
- GPIO1: 2.54mm spacing 24pin. It includes UART, SPI, I2C, GPIO
- GPIO2: 2.54mm spacing 12pin. It includes USBx2, IR, SPDIF, I2S
- Serial Debug Port: 2.54mm pitch 4-pin-header
- Audio input/output Port: 2.0mm pitch 4-pin header

LED:
- Power LED(Red)*1
- STAT LED(Green)*1

Others:
- Working Temperature: -20℃ to 70℃

Power:
- DC 5V/2A

System/Software Characteristics:
OS Support:
- For FriendlyCore 16.04 (based on that for UbuntuCore-16.04)
- For FriendlyWrt 18.06 (32-bit)
- For Armbian
- For DietPi
- For Lakka
- For Kali

Kernel version:
- For Linux-4.14-LTS
- For U-boot-2017.11

For Uboot:
- Supports for fastboot to update uboot

For FriendlyCore:
* rpi-monitor: check system status and information
* npi-config: system configuration utility for setting passwords, language, time zone, hostname, SSH and auto-login, and enabling/disabling i2c, spi, serial and PWM
* For NetworkManager: manage network
* software utility: RPi.GPIO_NP to access GPIO pins
* welcome window with basic system information and status
* auto-login with user account "pi" with access to npi-config
* on first system boot file system will be automatically extended
* supports file system auto check and repair on system boot
* supports for FriendlyElec's NanoHat-PCM5102A
* supports for FriendlyElec's Matrix_-_2.8_SPI_Key_TFT
* supports file transfer with Bluetooth
* supports for FriendlyElec BakeBit modules
* supports dynamic frequency scaling and voltage regulation

For Ubuntu OLED:
* supports for FriendlyElec's OLED module

For Eflasher:
- supports flashing OS image to eMMC

For Debian for NAS Dock:
- Supports for FriendlyElec’s NAS Dock
- Pre-installed for OpenMediaVault

Specifications:
- PCB: 6-Layer
- Dimension: 40*40mm
- Module Weight: 7.5g (WITHOUT weight of Pin-headers)

Package Included:
- 1 x NanoPi NEO Air
- 1 x 12x2pin Pin Header
- 1 x 12pin Pin Header
- 1 x 8pin Pin Header
- 1 x Antenna
