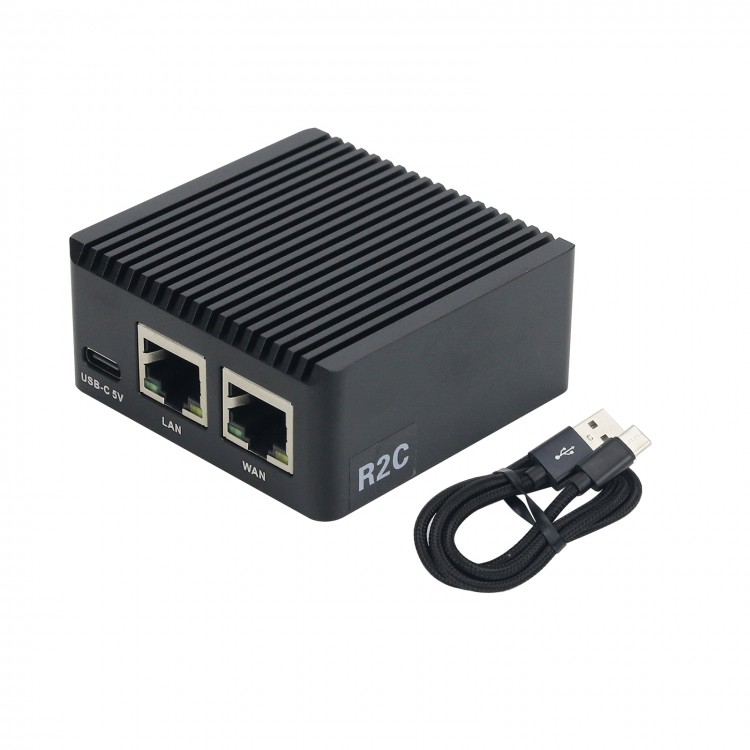

NanoPi R2C Mini Router 1GB RAM CNC Full Metal Shell RK3328 Dual Gbps Ethernet Ports For OpenWrt
Advantages:
- For Rockchip RK3328 quad-core for Cortex-A53
- 1GB DDR4 RAM
- Dual Gbps Ethernet ports
- With a new Ethernet chip
- USB-C power in/slave
- AES acceleration
- For UbuntuCore
- For FriendlyWrt/LEDE
- For Armbian
- TF card bootable system (TF card not included)
- 61 x 60 x 27.5mm/2.4 x 2.4 x 1.1"; 115g/0.3 lb
Description:
As a mini open-source pc router, NanoPi R2C is with dual Gigabit Ethernet ports.
It uses a high-performance quad-core A53 processor RK3328 as the main control. The default operating frequency is 1.2GHz and 1GB RAM. It has two true dual Gigabit network interfaces, and uses RK805 power management chip to support dynamic configuration and voltage regulation. It also has one USB 2.0 interface, which can be used to expand 4G module, USB camera, USB WiFi and others.
It supports TF card to boot operating system, supporting for FriendlyWrt, UbuntuCore and third-party systems such as for Armbian. It boasts a good software ecology. Now the official mainline for OpenWrt also supports NanoPi R2C. These systems are based on long-term support kernel for Linux-5.4 (LTS). It uses a universal Type-C interface for power supply, which is very suitable for high-speed and high-performance network applications with limited space.
Features:
- Quad-core SoC. Powerful performance. RK3328 quad-core for Cortex-A53 1GB DDR4 RAM. Support hardware acceleration with AES enabling encryption and decryption
- 1GB DDR4 RAM sufficient for running various applications
- Support for FreindlyWrt with docker
- Compact size. The NanoPi R2C goes with a tiny black metal case which is elegantly designed and carefully painted with eco-friendly material. You can not miss this cute, lovely and portable partner
Hardware Specifications:
- CPU: Model: RK3328 for Rockchip; Number of Cores: Quad-Core for Cortex-A53; Frequency: 4 x for Cortex-A53 Up to 1.4GHz
- Memory: RAM: 1GB DDR4
- Storage: MicroSD Slot: MicroSD x1 for external storage up to 128GB
- Connectivity: Ethernet: Gbps Ethernet x1, YT8521S chip; USB 3.0 to Gbps Ethernet x1
- USB: USB 2.0 Host x1: USB Type A; USB-C x1: Power input (5V/2A) and Slave
- Pin-header: Serial Debug Port x1: 2.54mm pitch 3pin-header (3.3V TTL)
- Button: User Button x1
- LED: SYS LED (Red) x1; WAN LED (Green) x1; LAN LED (Green) x1
- Others: Working Temperature: 0℃ to 80℃
- Power: DC 5V/2A
OS/Software:
- OS Support: for FriendlyWrt 19.07-snapshot (64-bit); for FriendlyCore Focal Lite (Base on Ubuntu 20.04)
Dimensions:
- PCB: 6 Layer
- Dimensions: 61 x 60 x 27.5mm/2.4 x 2.4 x 1.1"
- Weight: 115g/0.3 lb (With Case)
Package Included:
- 1 x NanoPi R2C
- 1 x Type-C Cable 30CM/11.8" (3A max)
Note:
- TF card is not included in the package.
