NanoPi R2C Plus Mini Router RK3328 Dual Gigabit Ethernet Ports 8GB EMMC Support For OpenWrt

NanoPi R2C Plus Mini Router RK3328 Dual Gigabit Ethernet Ports 8GB EMMC Support For OpenWrt

Attention:
Please prepare a 5V 2A charger plug (quick charging is prohibited) and C10-TF card by yourselves.

Download:
1. WiKi Tutorial (Firmware introduction, usage instructions, operation steps, etc.): http://wiki.friendlyarm.com/wiki/index.php/NanoPi_R2C_Plus
2. Firmware: http://download.friendlyarm.com/NanoPiR2CPlus
3. TF card programming tool (version for Win): https://pan.baidu.com/s/1ANsY4j3W1R75ed-GVX2swg  Password: 6666
4. Schematic (pdf format): https://wiki.friendlyarm.com/wiki/images/2/22/NanoPi_R2C_Plus_2109_SCH.PDF
5. Dimensions (dxf format): https://wiki.friendlyarm.com/wiki/images/6/67/NanoPi_R2C_Plus_2109_DXF.zip
6. How to use USB WiFi as AP on NanoPi R2S: Link for http://wiki.friendlyarm.com/wiki/index.php/How_to_use_a_USB_WiFi_adapter_as_an_access_point_on_FriendlyWrt

Description:
NanoPi R2C Plus is a fully open source edge computing router with ultra-miniature dual Gigabit Ethernet ports. It boasts a size of only 63.5 x 63.5mm/2.5 x 2.5" (including metal casing).

NanoPi R2C Plus uses a high-performance chip quad-core A53 processor RK3328 as the main control. The default running frequency is 1.2GHz, with 1GB memory by default (optional 2GB), and built-in 8GeMMC flash memory. It has two dual Gigabit network interfaces, and adopts RK805 power management chip, which supports dynamic adjustment and voltage regulation. It also has a USB 2.0 interface, which can be used to expand modules such as 4G modules, USB cameras and USB WiFi.

It supports TF card and eMMC flash to start the operating system, supports for FriendlyWrt, UbuntuCore and third-party systems, such as for Armbian. It has a good software ecosystem, and now the official main line for OpenWrt also supports R2C. These systems are based on the long-term support for kernel Linux-5.4 (LTS). R2C is powered by a common Type-C interface, which is very suitable for high-speed and high-performance network applications where space is limited.

Features:
- Quad-core SoC. Powerful performance. RK3328 quad-core for Cortex-A53 1GB DDR4 RAM. Support hardware acceleration with AES enabling encryption and decryption
- 1GB large memory is convenient for running various plug-ins
- Support for FreindlyWrt with docker
- Compact size. It is designed with an exquisite CNC metal casing. You can not miss this cute, lovely and portable partner
- Built-in 8GB eMMC Flash. Running the system through eMMC flash memory, it has better compatibility than the ones using SD card. It is more stable and reliable when running for a long time
- Dual Gigabit Ethernet ports: One is directly drawn from the SoC, and the other is transferred by USB 3.0. The transmission rate of the Gigabit Ethernet port directly led by NanoPi R2C Plus is 941Mbps, and the receiving rate is 941Mbps; the transmission rate of the transferred Gigabit Ethernet port is 941Mbps, and the receiving rate is 941Mbps
- Can be connected to USB2LCD to quickly check IP. Plug and play. Connect a USB2LCD module to quickly check the IP and temperature of the NanoPi R2C Plus. No need to open your computer, and get rid of cumbersome operations

Hardware Characteristics:
- CPU: Model: RK3328; Number of Cores: Quad-Core for Cortex-A53; Frequency: 4 x for Cortex-A53. Up to 1.4GHz
- Memory: RAM: 1GB DDR4
- Storage: MicroSD Slot: MicroSD x1 for external storage up to 128GB; Flash: 8GB eMMC 5.1 Flash
- Connectivity: Ethernet: Gbps Ethernet x1, YT8521S chip; USB 3.0 to Gbps Ethernet x1
- USB: USB 2.0 Host x1: USB Type A; USB-C x1: Power input (5V/2A) and Slave
- Pin-header: Serial Debug Port x1: 2.54mm pitch 3pin-header (3.3V TTL)
- Button: User Key x1
- LED: SYS LED (Red) x1; WAN LED (Green) x1; LAN LED (Green) x1
- Others: 8 Pin GPIO Connector: 1 x I2C,1 x UART/2 x GPIOs; Fan Connector (ZH1.5-2A) x1; Working Temperature: 0℃ to 80℃
- Power: DC 5V/2A

System/Software Characteristics:
- OS Support: for FriendlyWrt 21.02.1(64-bit); for FriendlyCore Focal Lite (Base on Ubuntu 20.04)

Specifications:
- PCB: 6 Layer
- Dimensions: 63.5 x 63.5 x 25.4mm/2.5 x 2.5 x 1" (with Case)
- Weight: 115g/0.3 lb (With Case)

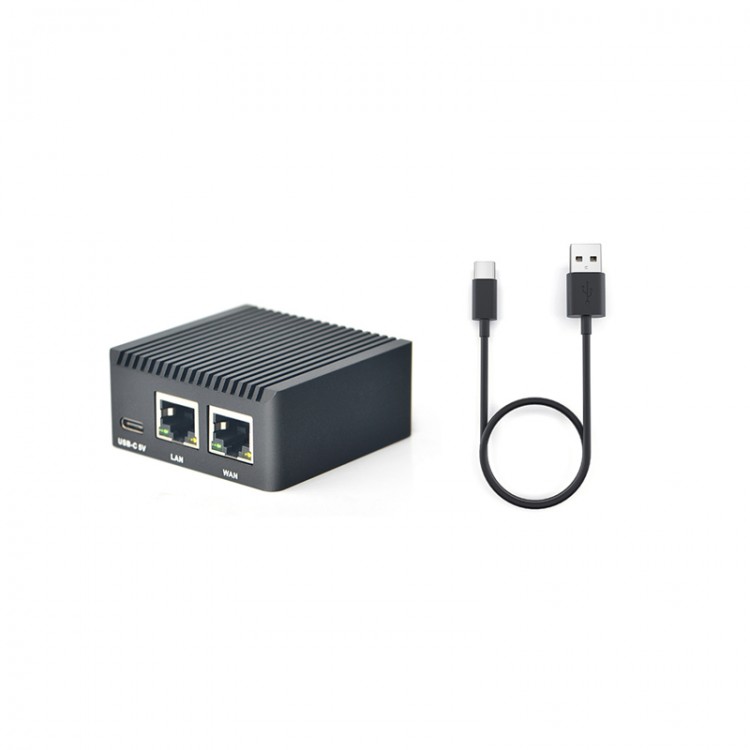

Package Included:
- 1 x NanoPi R2C Plus Finished
- 1 x Type-C Cable (3A max; 30cm/11.8")

Note:
- USB2LCD module pictured is not included.
