Nanoradar SP25 24GHz Microwave Radar Sensor Millimeter Wave Radar Sensor Motion Detection TTL Output
Features:
- SP25 short-range wide-angle industrial radar sensor
- Detection distance 30m/98.4ft
- 100° wide-angle detection
- 0.5W ultra-low power consumption
- 24GHz-ISM working frequency band makes it used worldwide
- Can distinguish 10mm/0.4" cable
- High integration and strong anti-interference ability
- Small size and light weight; easy installation
- Accurately detect the moving direction, distance and speed of moving targets
- Can be widely used in radar intelligent lighting control systems, robots, drones, machinery safety ranging and anti-collision
- Superior performance and durability: SP25 uses multiple-transmitting and multiple-receiving antennas, with high sensitivity and stable performance. With all-weather, all-day working characteristics, it is suitable for harsh environments with rain, snow, fog, dust and others

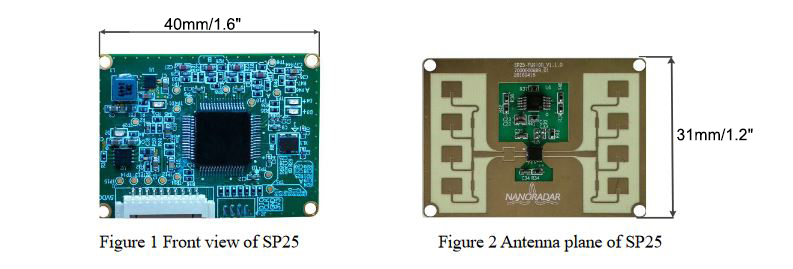

- Small size (40x31mm/1.6 x 1.2") enables easy integration. With universal external communication interface CAN/UART, it is easy to integrate with the host computer or other modules
- Provide self-developed host computer software to meet testing needs
- Serial-port data parsing: SP25 radar sensor utilizes a UART-TTL interface with a default transmission rate of 115200 baud, starting with a start sequence and terminating with a termination sequence for each data message. At each data cycle of SP25 (20ms), the message for SP25 system status and target output status would be output. If the field of detected target numbers in message of the detected target output status is 1, the target output status message is followed by the target output information message which contains the range, velocity parameter of the target

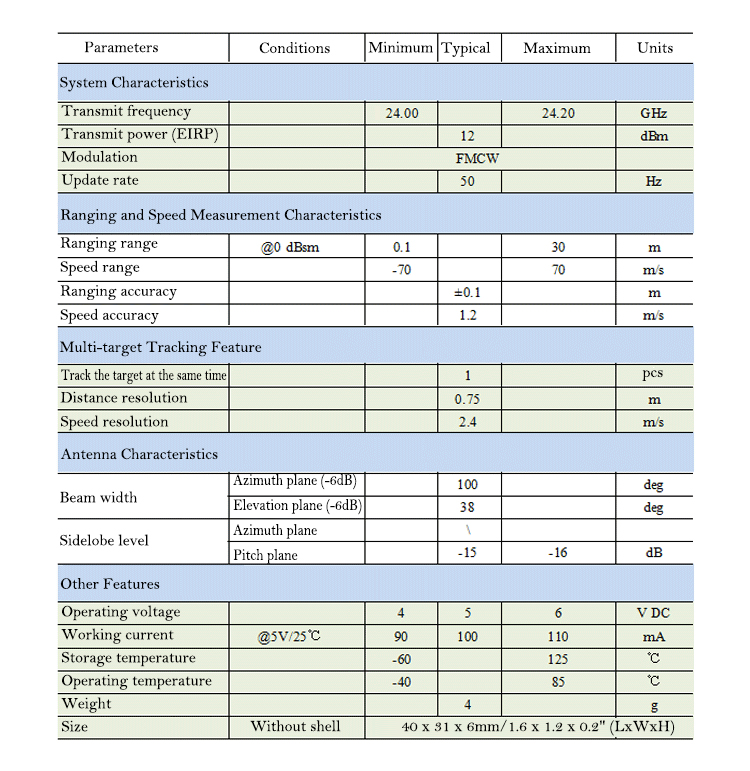

Product Parameters:
- Brand: Nanoradar
- Item model: SP25
- Category: 24GHz radar sensor
- How it works: Magnetic sensor
- Weight: 20g (0.04lb)
- Dimensions: 40 x 31 x 6mm/1.6 x 1.2 x 0.2" (LxWxH)
- Working voltage: 5~16VDC
Package Included:
- 1 x SP25 Radar Sensor
- 1 x Cable
