NanoVNA V2 3G Vector Network Analyzer Antenna Analyzer 50kHz-3GHz For Shortwave HF VHF UHF
Description:
-This NanoVNA V2 3GHz vector network analyzer is based on the license agreement for LGPL, based on the design for OwOComm. This portable analyzer is for measuring higher frequency.
-It uses a user interface similar to NanoVNA, but uses a different technical architecture. The initial calibration data is not loaded at startup, and the calibration data will not be automatically inserted after users change frequency. Each time the startup and frequency change, calibration data must be recalibrated or calibration data must be recalled. Please read the instruction manual carefully before use to avoid damage to the device.
VNA-QT Software Download: https://github.com/nanovna/NanoVNA-QT/releases
Nanovna-saver: https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2
User Guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf
Specifications:
Frequency range: 50kHz-3GHz
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 background noise (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scanning speed: 100 points/second
Display: 2.8 inches, 320 x 240
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Maximum scan point (on device screen): 201
Maximum scan point (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN
VNA-QT software compatible system: For Linux, Windows (7+), Mac OS planned
Package List:
-1 x Host
-1 x USB Data Cable
-2 x 15cm SMA Male to Male RG316 RF Cables
-1 x SMA Simple Calibration Set OPEN
-1 x SMA Simple Calibration Set SHORT
-1 x SMA Simple Calibration Set LOAD
-1 x SMA Female to Female Connector
-1 Set of DIY Accessories
-1 x Menu Map
Test 2.4G antenna:

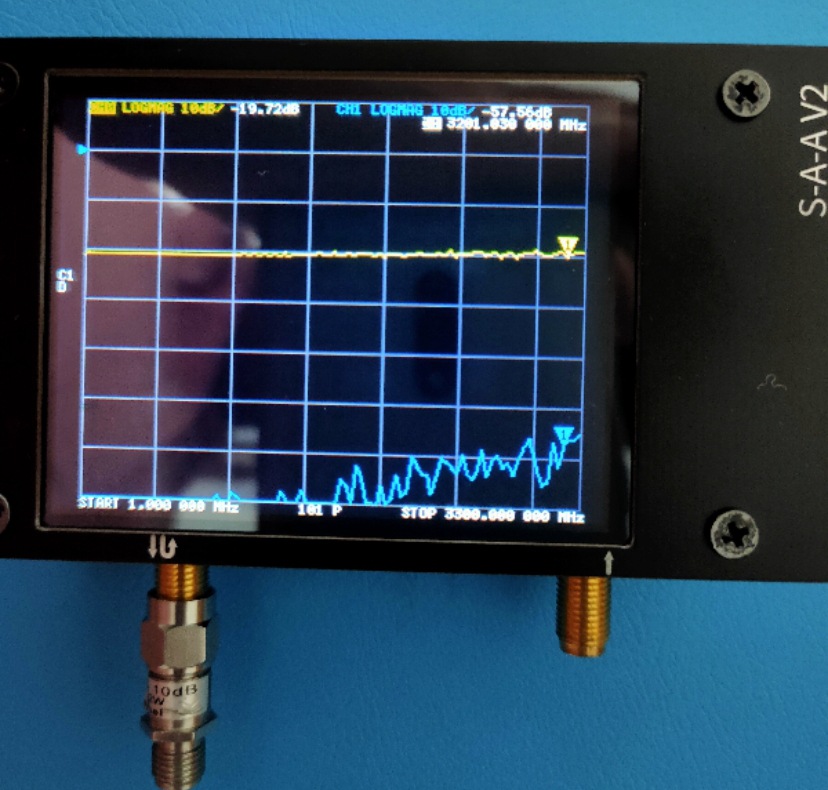

Test 10dB attenuator reflection up to 3.3GHz:

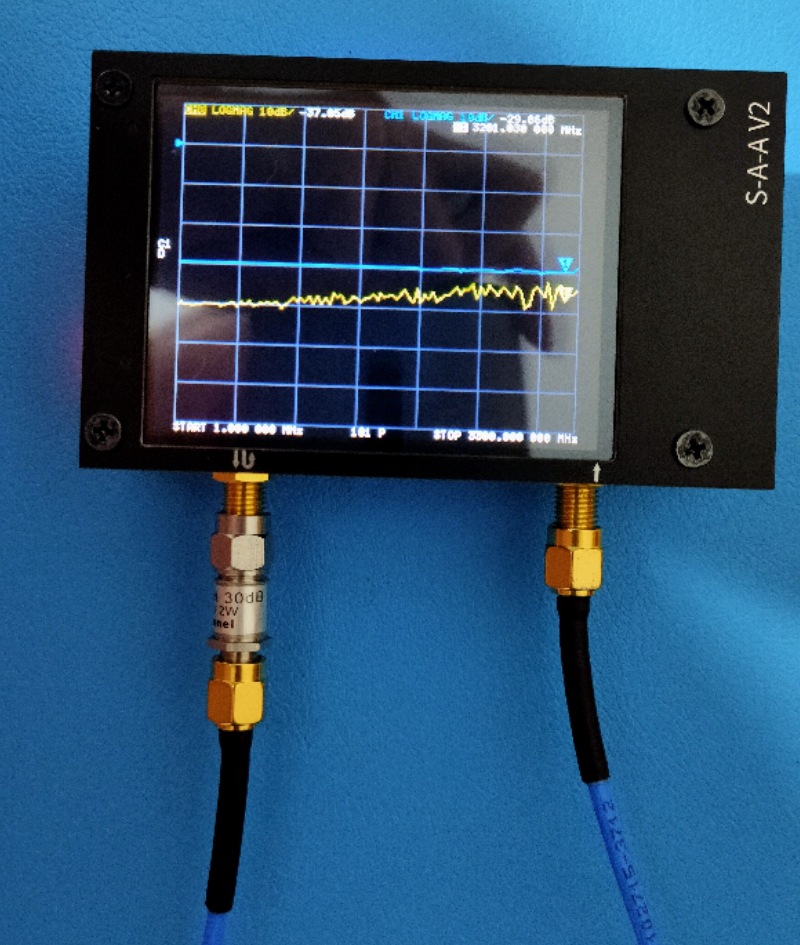

Test 30dB attenuator up to 3.3GHz:
Test UHF duplexer:

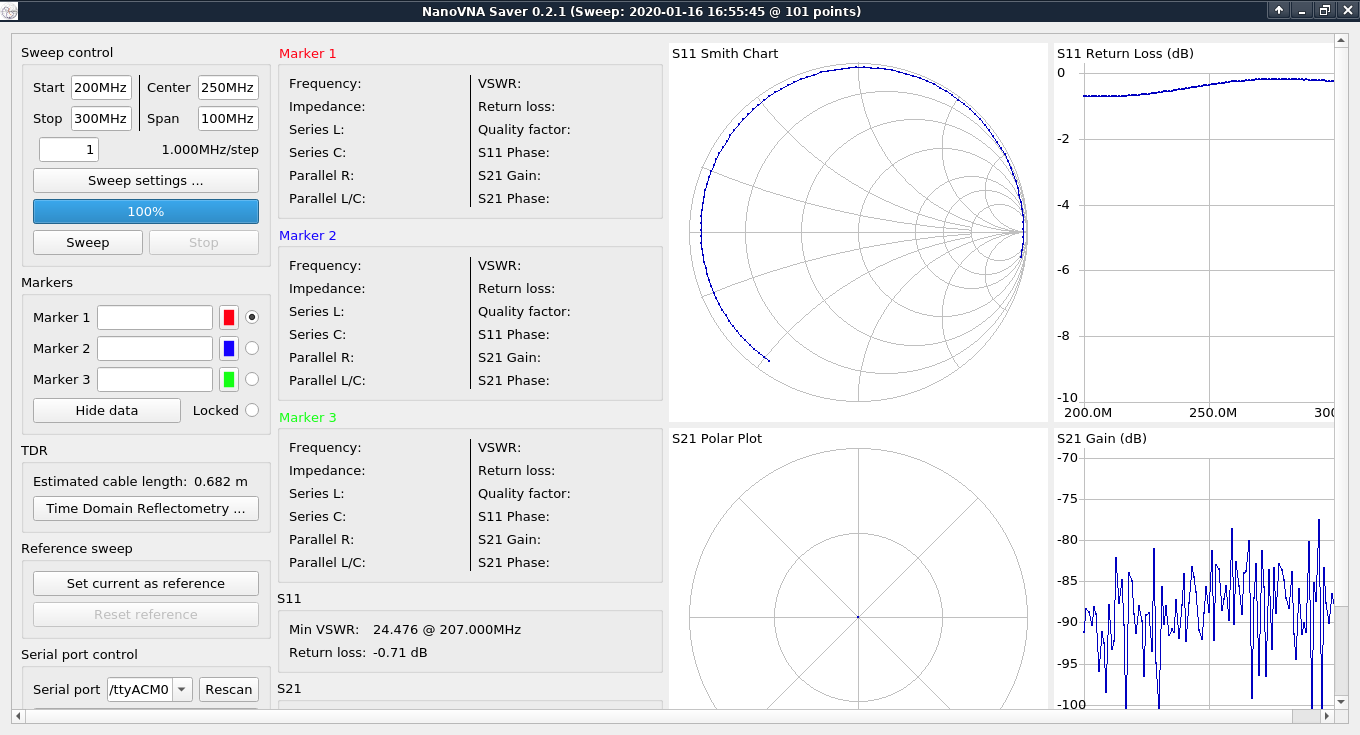

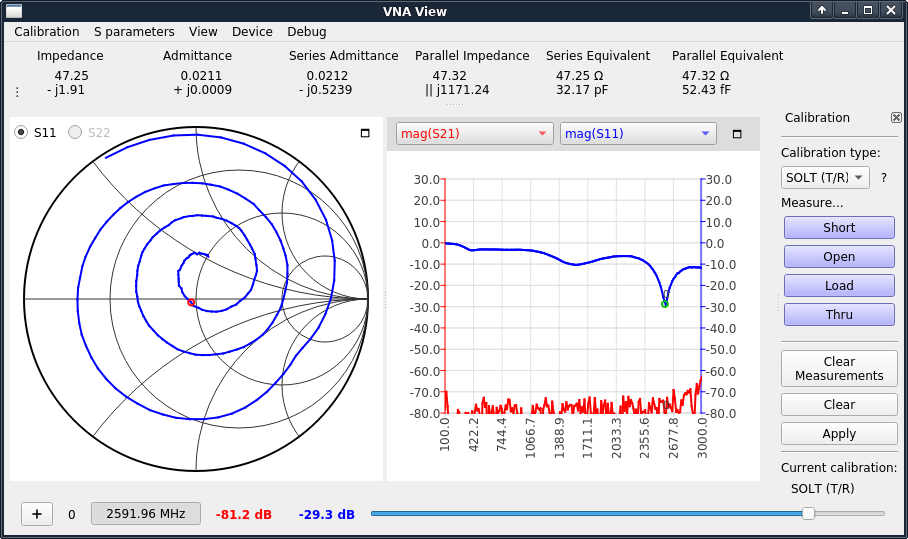

PC Software for Windows/Linux:
Support NanoVNA-Saver software For Linux: https://github.com/nanovna/nanovna-saver-v2-support
