NanoVNA V2 50KHz-3GHz Vector Network Analyzer Antenna Analyzer Metal Shell For Shortwave HF VHF UHF

NanoVNA V2 50KHz-3GHz Vector Network Analyzer Antenna Analyzer Metal Shell For Shortwave HF VHF UHF

Description:
This NanoVNA V2 3GHz vector network analyzer is based on the license agreement for LGPL, based on the design for OwOComm. This portable analyzer is for measuring higher frequency.

It uses a user interface similar to NanoVNA, but uses a different technical architecture. The initial calibration data is not loaded at startup, and the calibration data will not be automatically inserted after users change frequency. Each time the startup and frequency change, calibration data must be recalibrated or calibration data must be recalled.

VNA-QT Software Download: https://github.com/nanovna/NanoVNA-QT/releases

Nanovna-saver: https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2

User Guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf

Specifications:
- Frequency range: 50KHz-3GHz
- System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
- S11 background noise (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
- Scanning speed: 100 points/second
- Display: 2.8 inches, 320 x 240
- USB interface: Micro USB
- Power supply: USB, maximum charging current 1A
- Maximum scan point (on device screen): 201
- Maximum scan point (USB): 1024
- Port 2 return loss (1.5GHz): 20dB typical
- Port 2 return loss (3GHz): 13dB MIN
- VNA-QT software compatible system: For Linux, Windows (7+), Mac OS planned

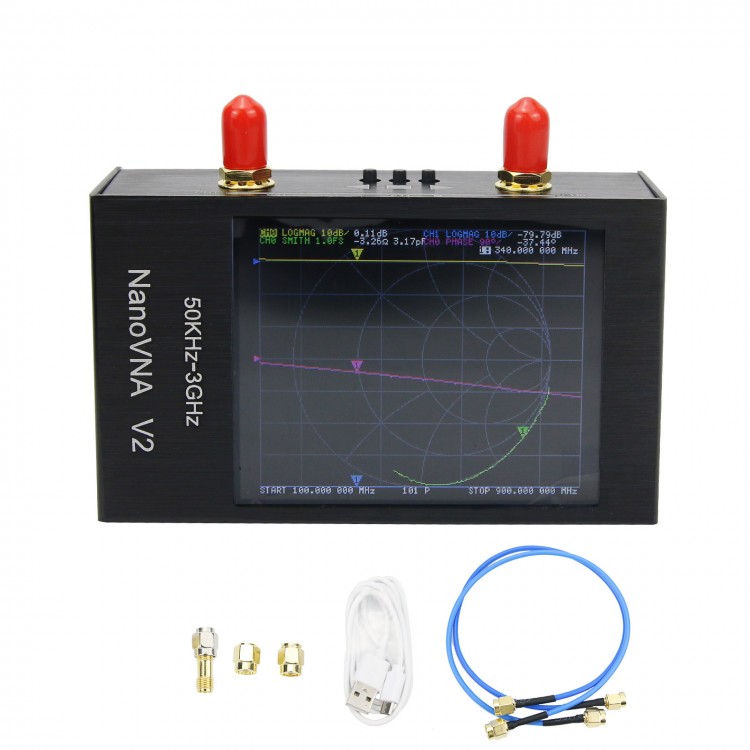

Package Included:
- 1 x Vector Network Analyzer Host
- 1 x USB Data Cable
- 2 x RG405 RF Cables SMA Male to Male Over 30cm
- 1 x SMA Simple Calibration Set OPEN
- 1 x SMA Simple Calibration Set SHORT
- 1 x SMA Simple Calibration Set LOAD
- 1 x SMA Female to Female Connector
