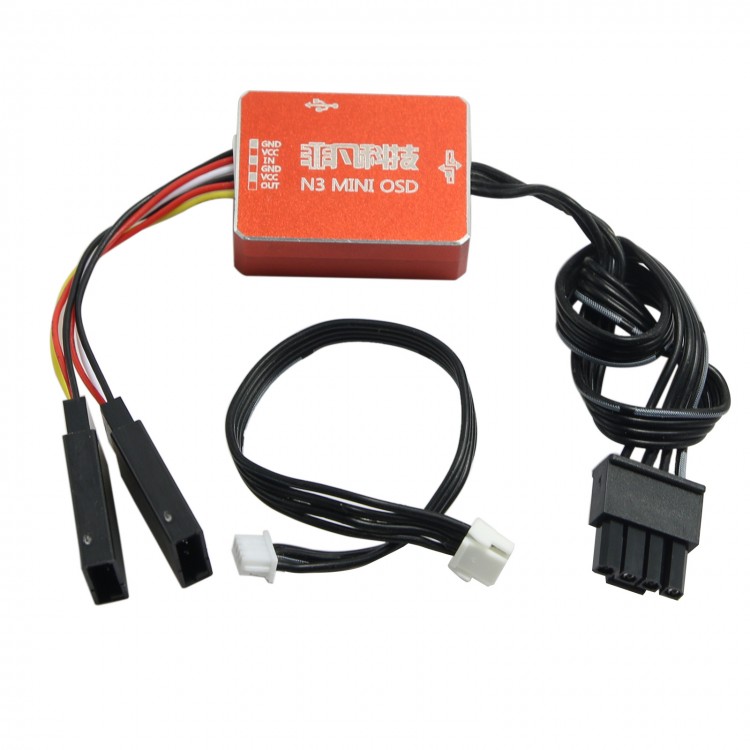

NAZA CAN N3 MINI OSD with Case for Flight Control Multicopter DJI Phantom 2 2+ NAZA V2

NAZA CAN N3 MINI OSD with Case for Flight Control Multicopter DJI Phantom 2 2+ NAZA V2

Features:
- Compatible with Phantom 2 2+ NAZA V2 and other flight control that with the CAN bus cable interface
- NAZA professional OSD, no need to setting parameters on computer, support GPS sharing NAZA, reading data from NAZA electrronic compass and GPS. Even aircraft keeps static in the air, it can still shown the returning home direction. Barometer using height is more precised.
- Three types of interface to choose: chinese interface, imitating DJI IOSD interface , self definition interface.(Can set each parameters at any place on the screen)
- Automatic identification system function
- Low voltage alarm function (single chip <=3.6V alarm, 2S-6S automatic identification)
- Low number of satellites (less than 6 satellites)
- Support in English and Chinese menu (for foreign customers)
- Beautify the screen font display.
- The shell is made of aluminum alloy, better heat dissipation effect.

Parameter:
- Weight: About 9g
- Appearance size: 29*22*9MM
- Working voltage: 4.5-9V (through the NAZA flight control power supply)
- Test voltage: 2S~6S (6V~26V) (the detection of the interface voltage or CAN bus voltage)
- Working temperature: -20~75 deg C

The main board of the new version OSD is being added the Micro USB interface, it is not necessary to turn the USB to the TTL.
Upgrade software download link 1: Click here
Upgrade software download link 2: Click here

Package Included:
- 1 x NAZA CAN N3 MINI OSD with Case
