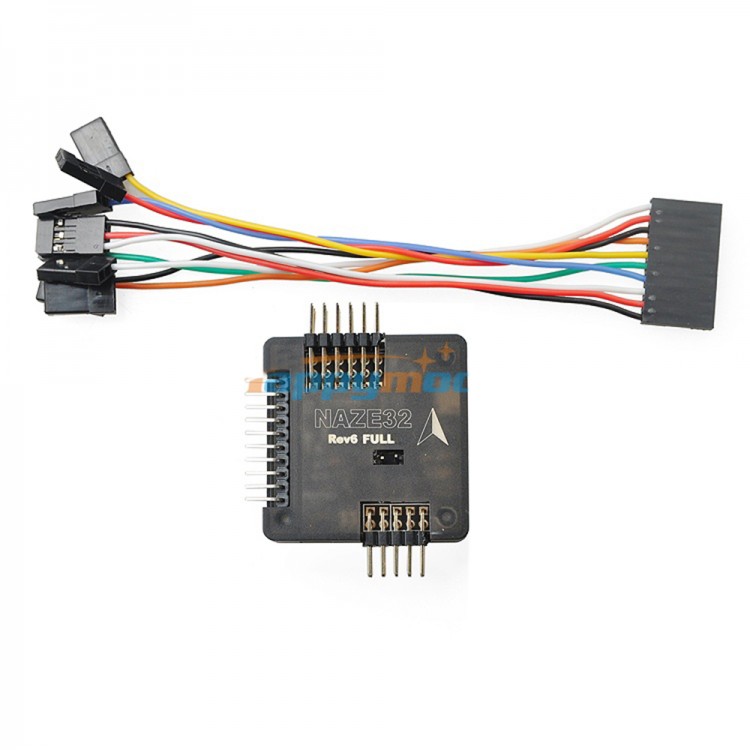

NAZE32 REV6 Acro Version Flight Controller 32Bit Processor with Barometer for FPV
Features:
- USB on right side
- PPM/PWM input as through-hole
- 3.3V, I2C on standard-size headers
- Fully pinout compatible with rev5 accessories (OSDoge etc)
- SBUS Inverter
- Spectrum satellite
- Bmp280 barometer
- MPU6500
- Sonar pads w/resistors added for direct connection to 5V sonar
- All extra pads (FT, GP, A5) on top, only sonar on bottom
-16mbit flash
Specification:
- 36×36 mm (30.5mm Mounting)
- 5.3 grams (no headers, 7.3 grams with)
- 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6500)
- Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line
Note: Acro Version, has BMP280 barometer only, does not include compass.
Package included:
- 1* NAZE32 REV6 Acro Version flight controller
