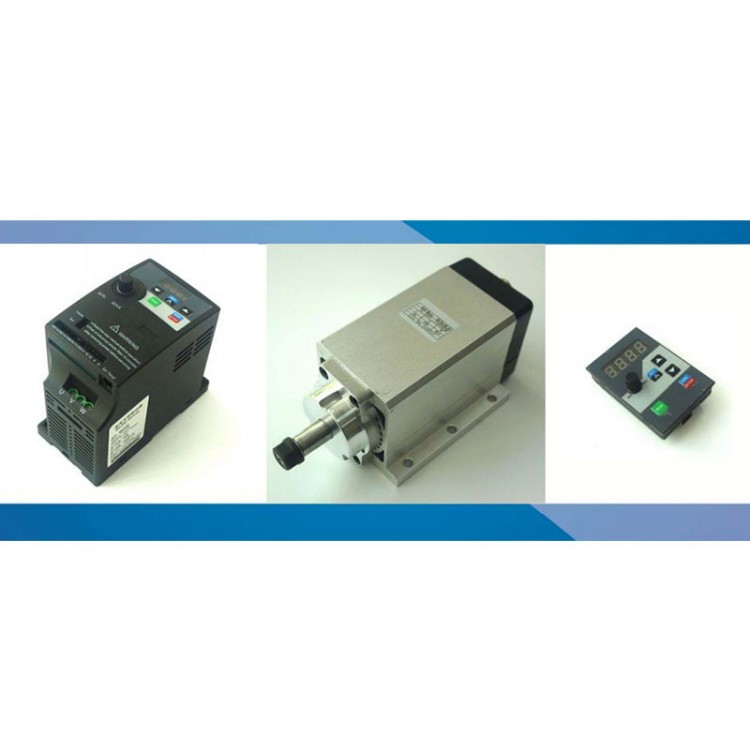

NBD600M2 DC Brushless Motor Driver Kit DC Motor Controller 220V 12000R/Min For Engraving Machines
Description:
We design Brushless spindle driver NBD600M1 and NBD600M2 specialized for the economic engraving machine, it matches with the brushless DC motor. With the updated DSP technology, the driver can drive the motor to output more precise speed and bigger torque comparing with current drivers. We adopt the idea from the inverter, designed independent demountable panel. The users can take down the panel from the main driver and install it on the controller cabinet. By the panel, we can set the parameter, control motor speed and start/stop, very convenient.
NBD600M1 is the brushless driver with supply voltage 110VAC.
NBD600M2 is the brushless driver with supply voltage 220VAC.
Specification Features:
1) High performance, low prices
2) DSP main control module
3) No current passing when no movement
4) Voltage range 100VAC~120VAC (NBD600M1) / 210VAC~230VAC (NBD600M2)
5) External independent panel
6) Maximum driver power 600W
7) 5 debugging ways: Built in panel potentiometer, External panel potentiometer, external voltage signal, external PWM signal, 485 communication
8) Maximum driver motor running speed 12000R/Min
9) Speed testing port for user to inspect the real speed
10) Internal over-voltage, over-current and stalling inspection
11) Input signal TTL compatible
Package Included:
- 1 x Set of NBD600M2
