Features:
- Can control 6pcs stepper motor at most.
- 5-channel IO program input interface,limit emergency stop function
- 3-channel IO program output interface,water cooling,fog cooling controlled peripherals
- 1-channel serial port handwheel MPG interface
- 4-axis PWM output control
- Support MACH3 software
- USB interface,support MACH3 software
- The max 200K stepper motor control pulse output,suitable for most machine system.
- Total analog parallel port,parallel interface output.
Product Description:

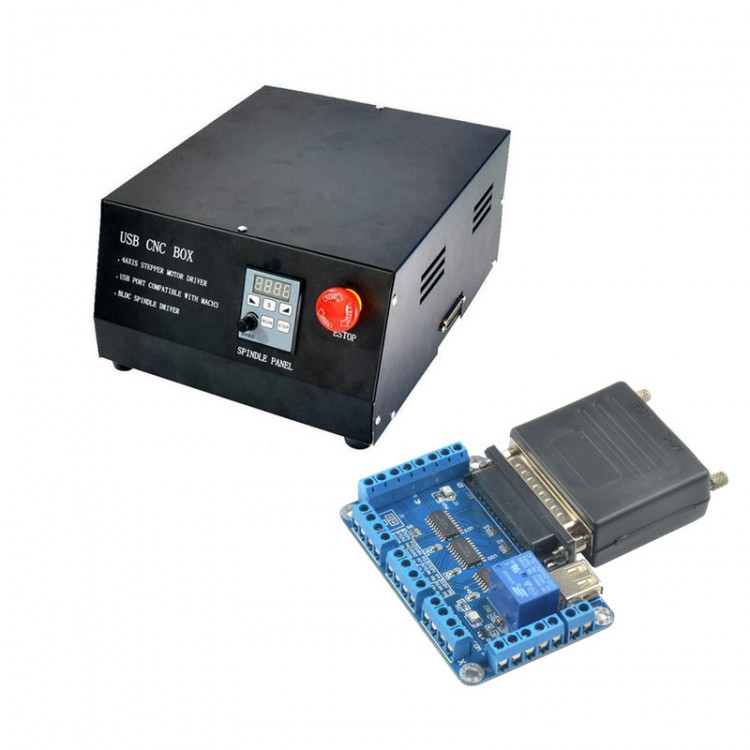

- NCB01 Control Box is designed for CNC Amateur.It's a total solution.You only need mechanical part of CNC machine,connect with NCB01 to constitute a system.
- NCB01 is compatible with mach3 by LPT.Using NC200( MPG USB to Parallel Interface Converter,NCB01 Control Box connect with mach3 by USB.
Specification:
- High performance,low prices
- 4 Axis 4A 1/128 microstep stepper motor driver
- Spindle driver is 400W BLDC driver without Hall.
- Maximum Spindle driver motor running speed 12000R/Min
- LPT controller port.
- 110VAC or 220VAC power input.
Package List:
- 1 x NC200 CNC Controller Board Card
- 1 x NVBOX CNC Controller Box
- 1 x User manual
