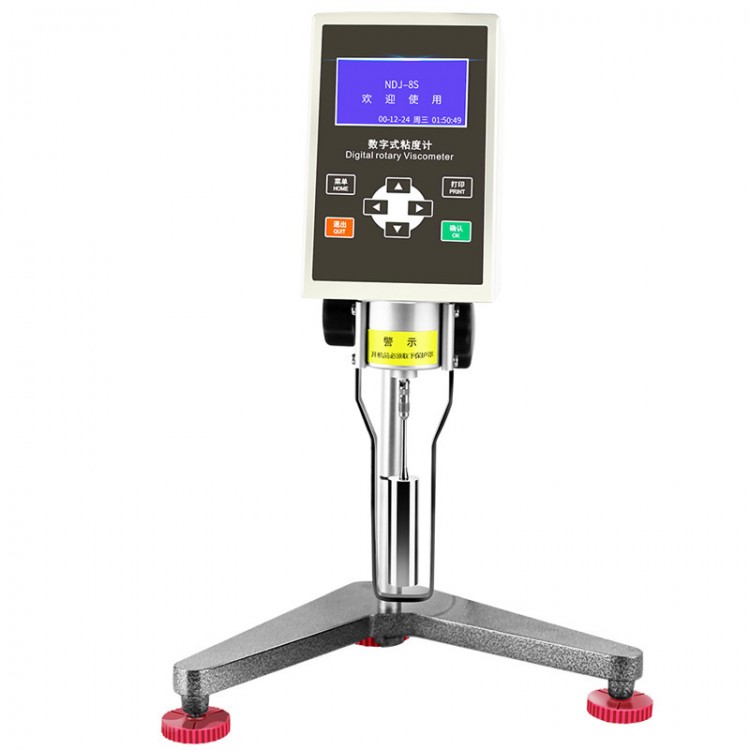

NDJ-5S Digital Rotational Viscosity Meter Viscometer Rotary Visometer 110-240V 10~100,000mPa.s Accuracy:+-3.0%
Description:
- Uses microcomputer technology, which can easily set the range (rotor number and speed), and clearly display the set value of Rotor number, Speed, Viscosity value of the measured liquid and its full-scale percentage value. NDJ-5S Equipped with 4 rotors (No. 1, 2, 3, and 4) and 4 speeds (6, 12, 30, 60 rpm), which are composed of 16 combinations. Can measure the viscosity of various liquids in the measurement range.
Features:
- High Measuring Accuracy: Measurement range: 10mPa.S-100,000mPa.S(1mPa.S=1cp) Measurement error:±3%, with 4 rotors (No. 1, 2, 3, and 4) and 4 speeds (6, 12, 30, 60 rpm), which are composed of 16 combinations. You can determine viscosity as low as 1mPa.s with 0# rotor.
- Microcomputer Control Technology: Adopts advanced mechanical design, manufacturing technology and microcomputer control technology
- LCD Digital Display: Has perfect data acquisition and the LCD monitor display selected blue backlit with high brightness so that it can show the results more clearly. Note: In order to provide a better user experience, we upgraded the product label. The product you received may be the old version or the new version
- Reliable and Easy to use: Has a measurement of high sensitivity, so the test results are reliable, and also, the operation is very easy.
- Application: It can be used to measure the absolute viscosity of the Newtonian liquids and the apparent viscosity of the Non-Newtonian liquid. Also can be widely used in the tests the viscosity of the oil, paint, plastics, paints, detergents, drugs, jewelry and other objects.
- Intelligent control, automatically complete the measurement of liquid viscosity, the results are output from the display.
- The instrument uses a microcomputer to control the speed of the stepping motor, so that the speed of the instrument can be continuously adjusted, and its accuracy is improved.
- It has the characteristics of compact structure, stable work, high measurement accuracy and good anti-interference performance.
- Can be used to measure viscous resistance and viscosity of liquids. Widely used in paint, food, medicine, adhesive and other industries.
Specifications:
- Measurement range: 10~100000mPa.s
- Rotor types: 1#, 2#, 3# and 4# rotors; (You can determine viscosity as low as 1mPa.s with 0# rotor.)
- Rotor velocity: 6、12、30、60RPM/min (automatic)
- Measurementerror:±3%(Newton liquid)
- Power supply:110V±10% 60z±10%
- Ambienttemperature:5°C~ 35°C；Relativehumidity: ≤80%
| Model | NDJ-5S | NDJ-8S | NDJ-5S With 0# rotor |
|
|---|
|
Measurement range |
10~100000 mPa.s | 10-2,000,000 mpa.s | 1~100,000mPa.s |
|
|
Rotor types |
1#,2#,3#,4# rotors(0#is optional accessory) | 1#,2#,3#,4# rotors(0#is optional accessory) | 0#,1#,2#,3#,4# rotors |
|
|
Rotor velocity |
6、12、30、60RPM/min | 0.3、 0.6、1.5、3、6、12、30、60RPM/min | 6、12、30、60RPM/min |
|
|
Measurement error |
±3% | ±3% | ±3% |
|
|
Digital display |
YES | YES | YES |
