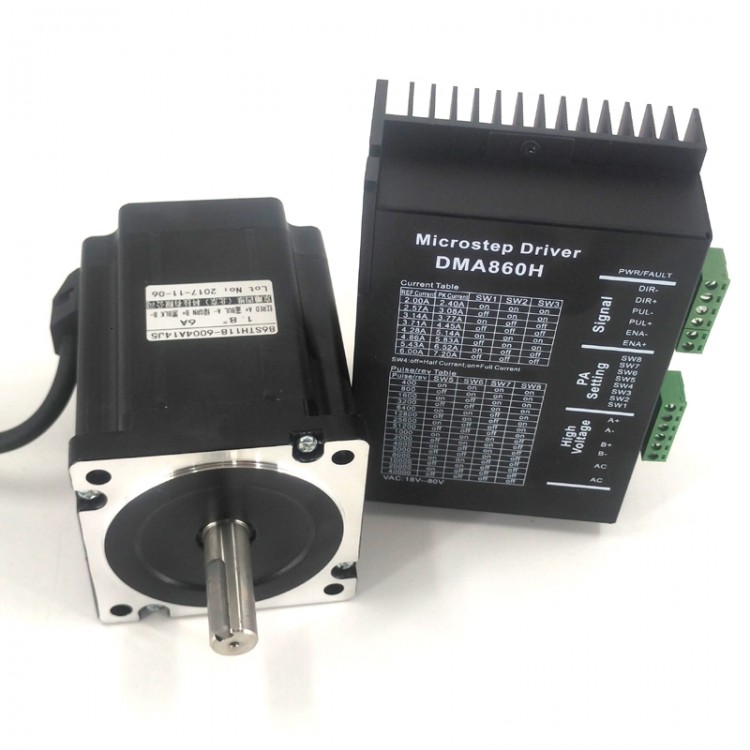

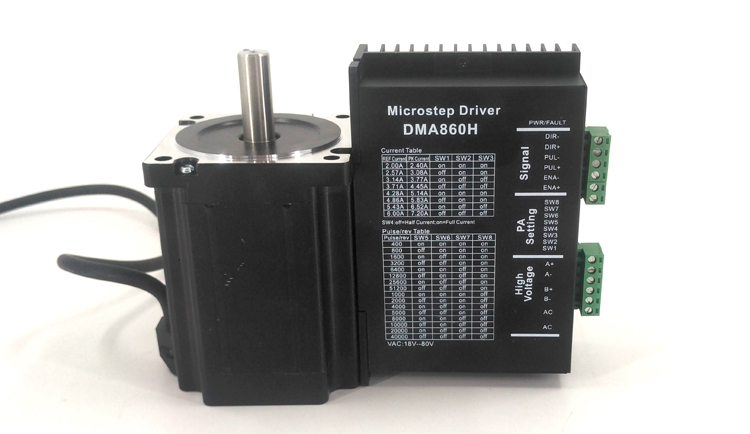

Nema 34 Stepper Motor 86STH118-6004A & DMA860H 2 Phase Stepper Motor Driver Kit with Encoder Cable

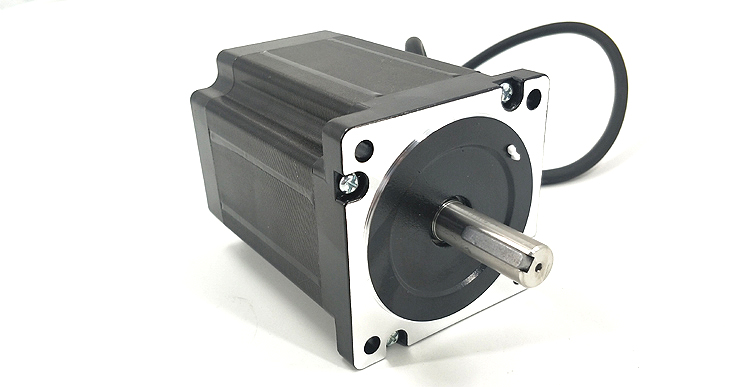

Motor Details:
Model Number: 86STH118-6004A
Rated current: 6A
Holding Torque: 8.5Nm

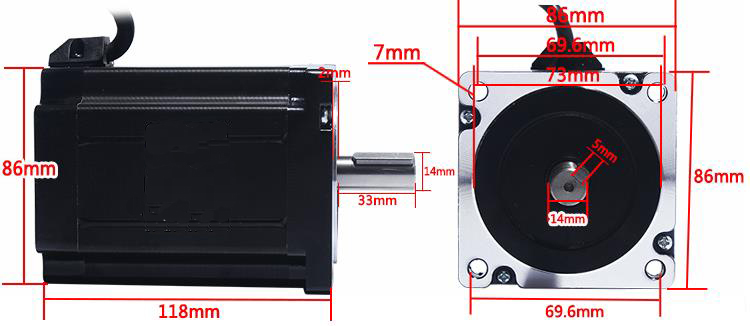

Motor length: 118mm
Shaft length: 33mm
Holding torque: 8.5.m
Maximum speed: rpm
Match Driver: DMA860H

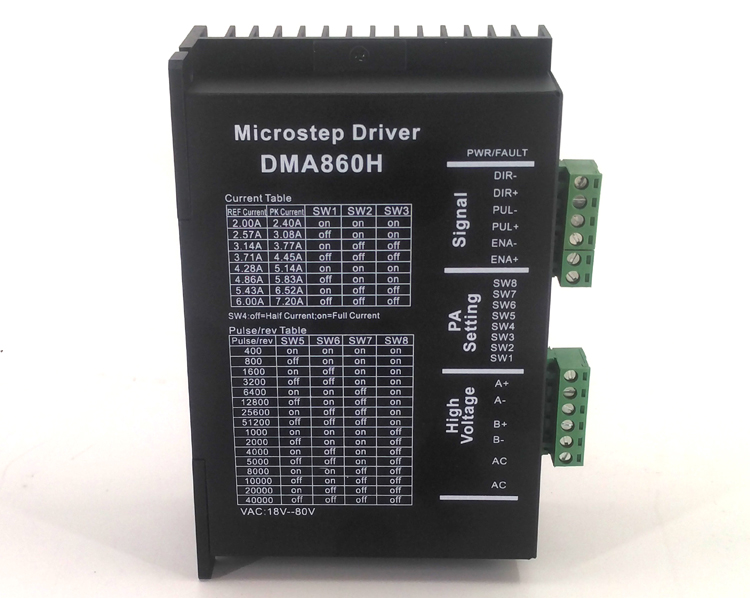

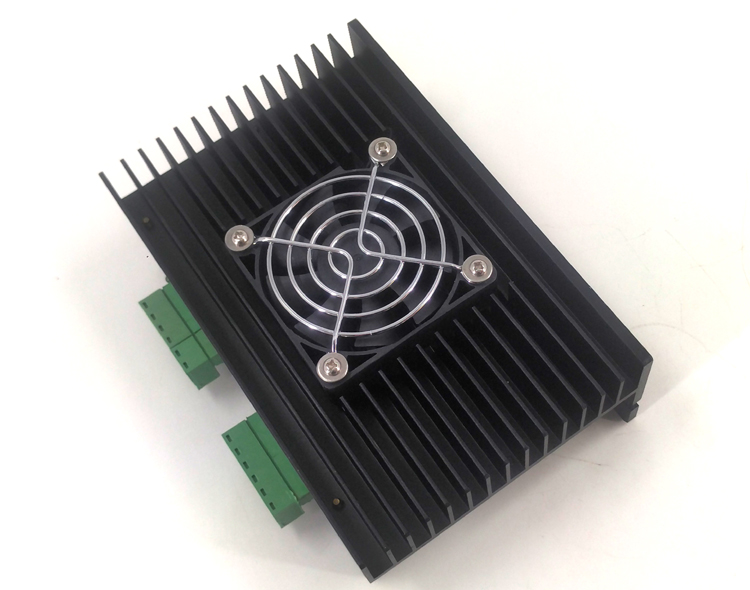

Driver Information:
Model Number: DMA860H
Motor Type: Stepper Motor
Motor Type: stepper driver
Current: 7.2A
Voltage: DC 24-80V
Power: Medium Power
Frequency: Low Frequency
Install Style: Plug-in
Suitable for: 2 phase and 4 phase motors
Matching motor: Nema34, Nema42 step motor
Package Included:
1 x Closed loop stepper Driver: DMA860H
1 x Nema34 closed loop motor: Nema 34 86STH118-6004A
1 x Encoder cable
