Nema23 Stepper Motor 57 1.8Nm 4A 76mm 4-Lead for CNC Milling Machine

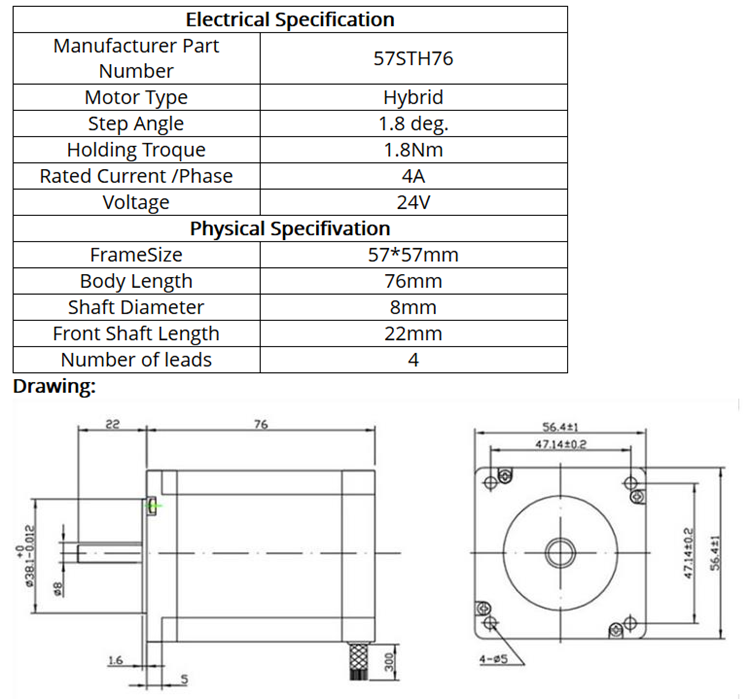

Specifications:
Model Number: 57STH76
Type: Hybrid
Model Number: 57 stepper motor
Product Description:
Step Angle (degrees): 1.8 deg.
Holding Torque: 1.8Nm
Phase: 2
Current / Phase: 4
Size: 57*57*76
Shaft Diameter: 8mm

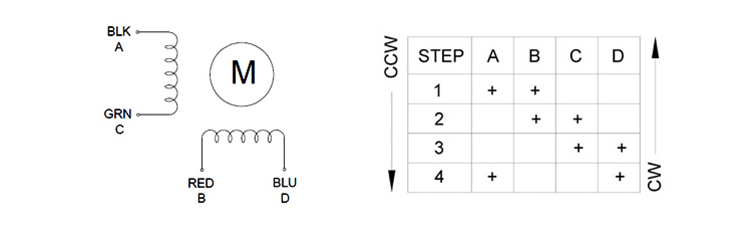

Wiring Configuration: 4-Wire Bipolar
Application: 3D printer, Robotics, Reprap project and CNC machine
Our product can be custom-made
Features:
This stepper motor is one of the most popular model, it with steep angle 1.8deg and size 57x57x76mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws current 0.4A at 12V, with holding torque 1.8Nm. It can be widely used in 3D printer, robotics, Reprap project and CNC machine.
Package Included:
1 x 57STH76 Stepper Motor
