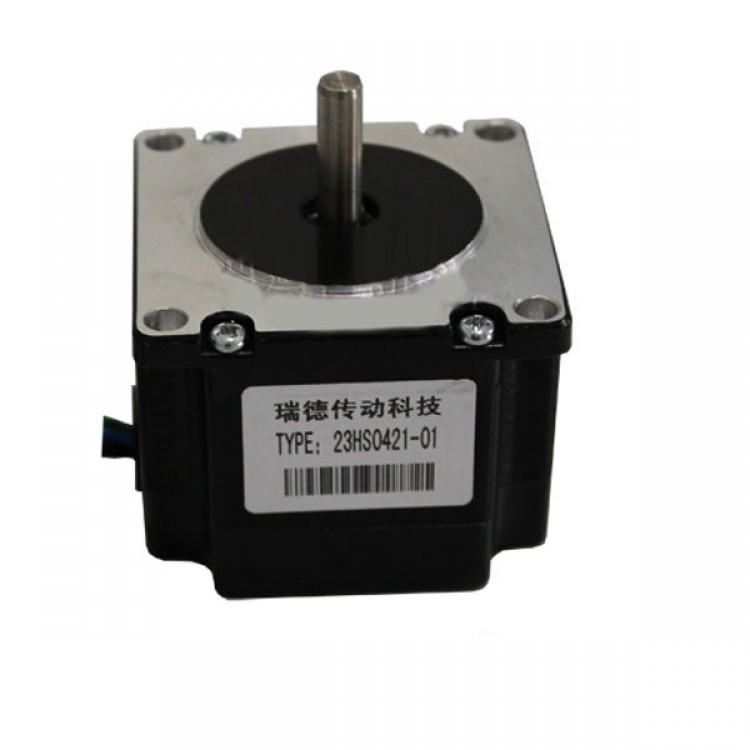

NEMA23 Stepper Motor 57 Step Motor 1.8Degree Step Angle 42MM Thickness

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.90
  • Price in reward points: 379 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.14 $36.38 $35.25 $33.73 Contact US
Quantity:
Buy it now Add cart

You might like

NEMA23 Stepper Motor 57 Step Motor 1.8Degree Step Angle 54MM Thickness

NEMA23 Stepper Motor 57 Step Motor 1.8Degree Step Angle 54MM Thickness

$33.21

(0)
High Quality 2 Phase 4 TVL Stepper Motor 42 Stepping Motor 42H40HM-0504XXL4 for CNC

High Quality 2 Phase 4 TVL Stepper Motor 42 Stepping Motor 42H40HM-0504XXL4 for CNC

$13.17

(0)
NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 40MM Thickness

NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 40MM Thickness

$18.99

(0)
23HS0421-01 Planet Reduction Gear Stepper Reduction Motor 57 NEMA23 GEARHEAD

23HS0421-01 Planet Reduction Gear Stepper Reduction Motor 57 NEMA23 GEARHEAD

$88.50

(0)
NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 48MM Thickness

NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 48MM Thickness

$22.45

(0)
NEMA17 Stepper Motor 42 Step Motor 1.8 Degree Step Angle 34MM Thickness

NEMA17 Stepper Motor 42 Step Motor 1.8 Degree Step Angle 34MM Thickness

$15.05

(0)
56BYGH630DJP Stepping Motor 3.0A 1.39N.m DC Reluctance Synchronous Stepper Motor CNC

56BYGH630DJP Stepping Motor 3.0A 1.39N.m DC Reluctance Synchronous Stepper Motor CNC

$41.43

(0)
4Axis Nema23 Kit (4 23HS8430 Stepper Motors+4 DM542A Drivers+2 350W-36V Power Supply+Breakout Board)

4Axis Nema23 Kit (4 23HS8430 Stepper Motors+4 DM542A Drivers+2 350W-36V Power Supply+Breakout Board)

$421.17

(0)

NEMA23 Stepper Motor 57 Step Motor 1.8Degree Step Angle 42MM Thickness

Specification:
- Step angle: 1.8degree-+5%
- No. of phases: 2
- Rated voltage: 2.9V
- Rated current: 2.1A
- Resistance: 1.4 ohm+-10%  at 25degree
- Inductance: 3.6mH+-20%  at 1KHz, 1Vrms
- Holding torque: 0.7N.m(98.7oz.in)
- Running torque(AT---PPS): ----above/MIN
- Dielectric strength: 500V A,C / MIN
- Insultation resistance: 100M ohm / min
- Insultation class: class B
- Temperature rise: 80K MAX
- Rotor inertia: 480g.cm
- Weight: about/APPROX. 1100g
- Allowable thrust load: 15N
- Allowable radial load: 75N
- Operate ambient temp: -20---50degree
- Operation ambient temp: 15--90%
