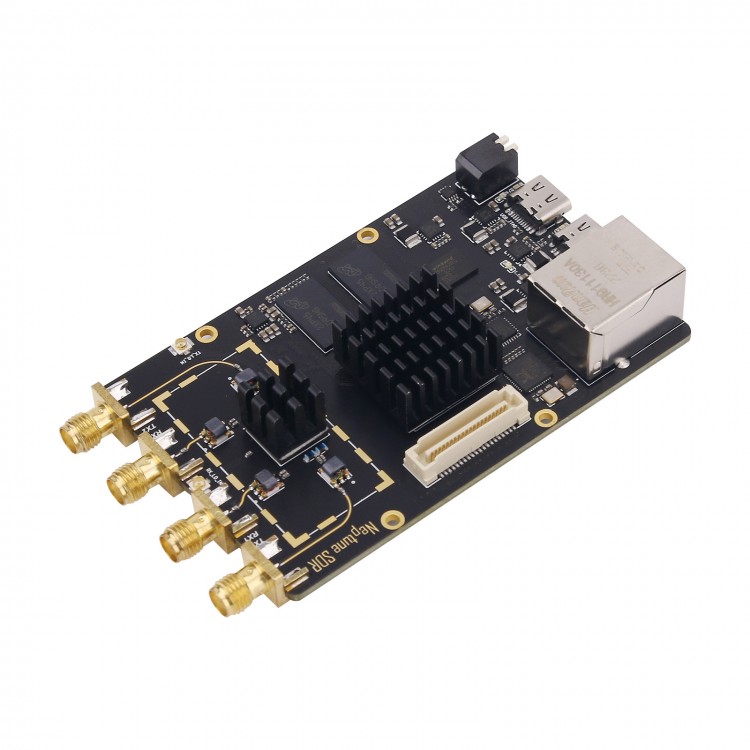

NeptuneSDR B210 Plus 70MHz-6GHz SDR Development Board Openwifi Pluto SDR AD9361 Chip for ZYNQ
Features:
Advanced SDR Development Board
* Support two receiving and two transmitting channels
* Gigabit network port
* DDR3 1GB
* Plug and play. Support secondary development
Chip for ZYNQ-XC7Z 020-CLG400
* More powerful logical ability
* Integrated dual-core processor (766MHz) for Cortex-A9 and 85K logic unit
Compact Size
* Size: 85 x 54mm/3.3 x .1"
* Lighter and more convenient to use
AD9361 RF chip
* Frequency range: 70MHz-6GHz
* Signal bandwidth: 200KHz-56MHz
Five Interfaces
* Include 1G-ETH, SD-CARD, USB-OTG, USB-UART and USB-JTAG. It is convenient to use
For ZED-FMCOMMS2-3/Open WIFI/Pluto SDR
* Support host computer development (for official host computer/Matlab/GUN Raido, etc.)
* Powerful functions and better performances
Specifications:
* Size: 85 x 54mm/3.3 x .1"
* FPGA: for ZYNQ-XC7Z020-CLG400
* RF chip: AD9361
* RAM: 1GB 32Bit DDR3
* Interface: 1G-ETH/SD-CARD/USB-OTG/USB-UART
* SMA: two receiving and two transmitting channels
* Hardware frequency range: 70MHz-6GHz
* Signal bandwidth: 200KHz-56MHz
Package Included:
* 1 x Board
Note:
* SD card is not included.
