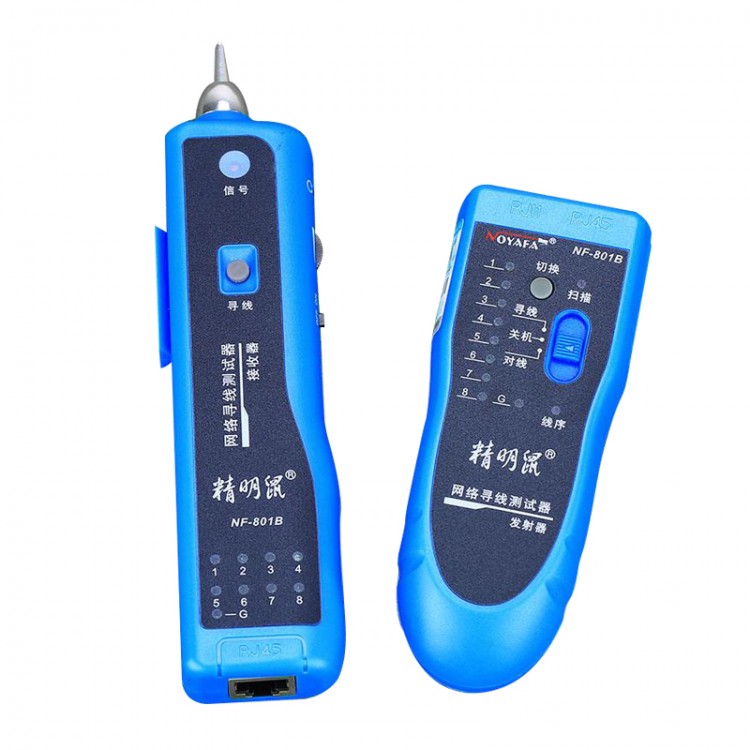

Network RJ11 RJ45 LAN Wire Tracker Fault Locator Cable Tester NF-801B Blue

Network RJ11 RJ45 LAN Wire Tracker Fault Locator Cable Tester NF-801B Blue

Function:
- Trace telephone wire/LAN cable;
- Trace wire in electrical system;
- Verify LAN cable condition;
- Continuity test;
- Low Battery Indication;
- Bright white LED flash light.
- Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) Telephone cable
- Cable State Testing (2-wire) :
  Line DC detecting and anode, cathode determination
  Ringing signal detecting
  Open, short and cross test.

Features:
- Find wire on all types of connected operating Ethernet switch /Router/PC terminal;
- Rapidly find the target wire from among plenty of telephone wires;
- Rapidly find the target wire from among plenty of network wires;
- It can take place of cable tester;
- Compare the volume of the"tout"sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator.

Specification
- Color: Blue
- Product name:Wire tracker(cable scan & finding)
- The max working current:
  Emitter:<=10mA
  Receiver:<=30mA
- Signal transmission format:Multi-frequency impulse
- Signal output electric status:8Vp-p
- Distance of signal transmission:>=3km
- Volume Regulate Function:Yes
- Earphone for noise environment:Yes
- Sensitive:induction distance less than 20 mm, strong anti-jamming ability
- Storage Temperature:-20 to 50C
- Operation Temperature:-10 to 40C
- Battery:DC 9V terrace battery (Not include!!!)
- Battery life time:>50hrs continuous use

Measurements:
- Appearance dimension
- Emitter:126x49x34mm
- Receiver:175x42x27mm
- Whole set:270x165x45mm
- Emitter:0.060kg
- Receiver:0.072kg

Package Including:
- 1 x Wire Tracker
- 1 x Receiver
- 1 x RJ45 Cable
- 1 x RJ11 Cable
- 1 x Cable with crocodile clamp
- 1 x Black toolkit
