New 1.10D 50kHz-2GHz Malachite SDR Receiver DSP Noise Cancellation SDR Receiver with 3.5-inch Touch Screen

New 1.10D 50kHz-2GHz Malachite SDR Receiver DSP Noise Cancellation SDR Receiver with 3.5-inch Touch Screen

Upgraded Function:
- Canceling the short press to exit the menu function of audio encoder, which does not affect the original function in the menu interface. You can still adjust parameters such as volume or switch items, and can only use the frequency encoder to short press to exit the menu.
- In the menu interface, use a frequency encoder to adjust project parameters.

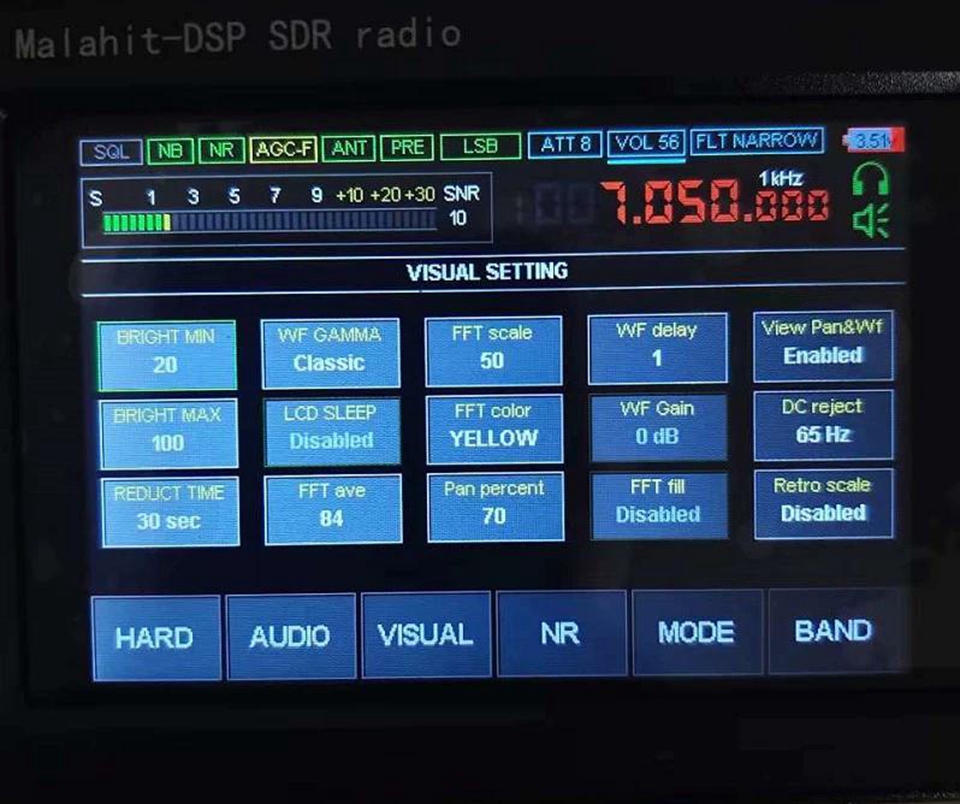

- Menu adjustment, adding EMI Reduction and WF GAMMA mode settings, and removing the LCD sleep screen shutdown setting (SLEEP TIME).

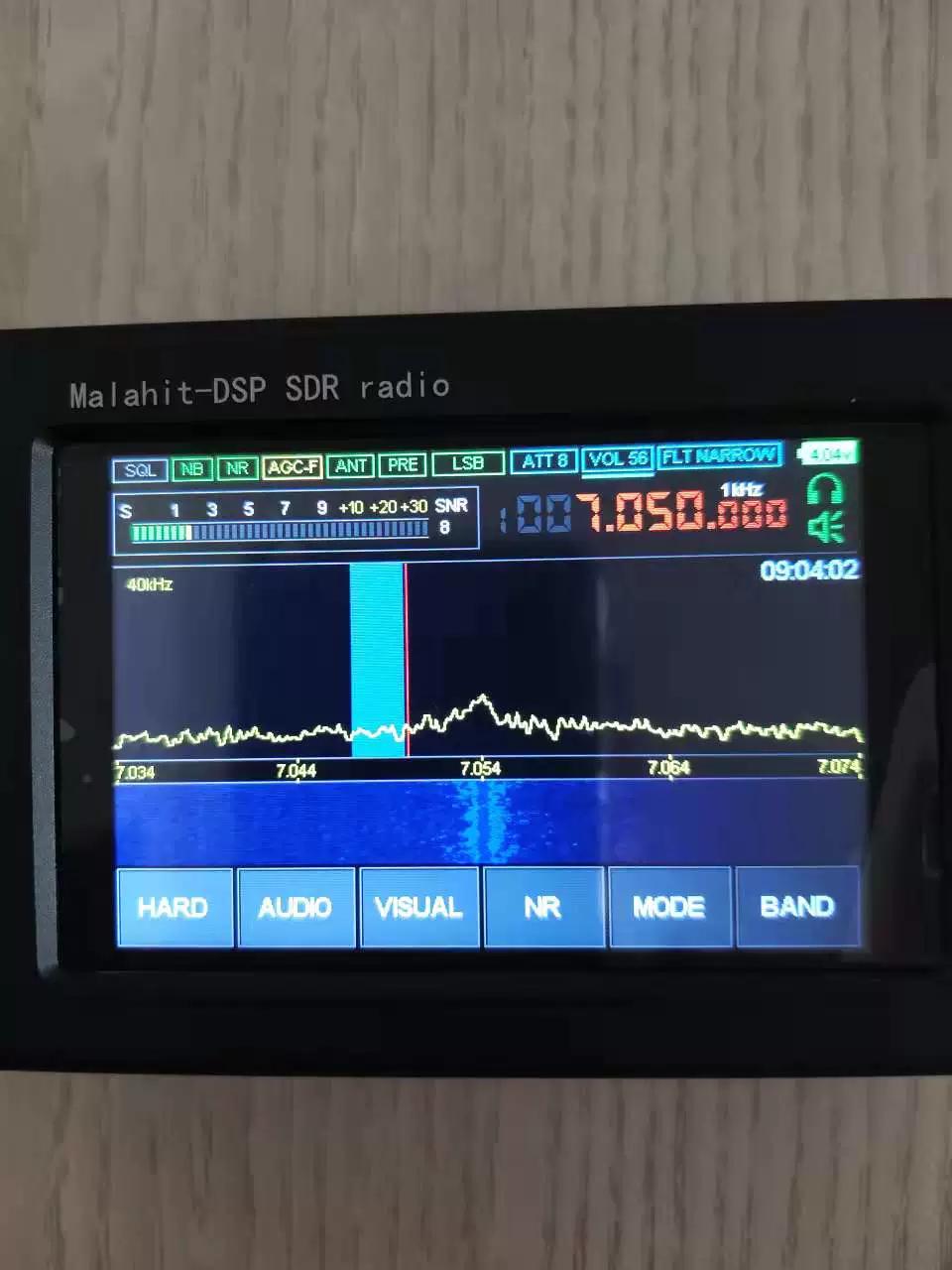

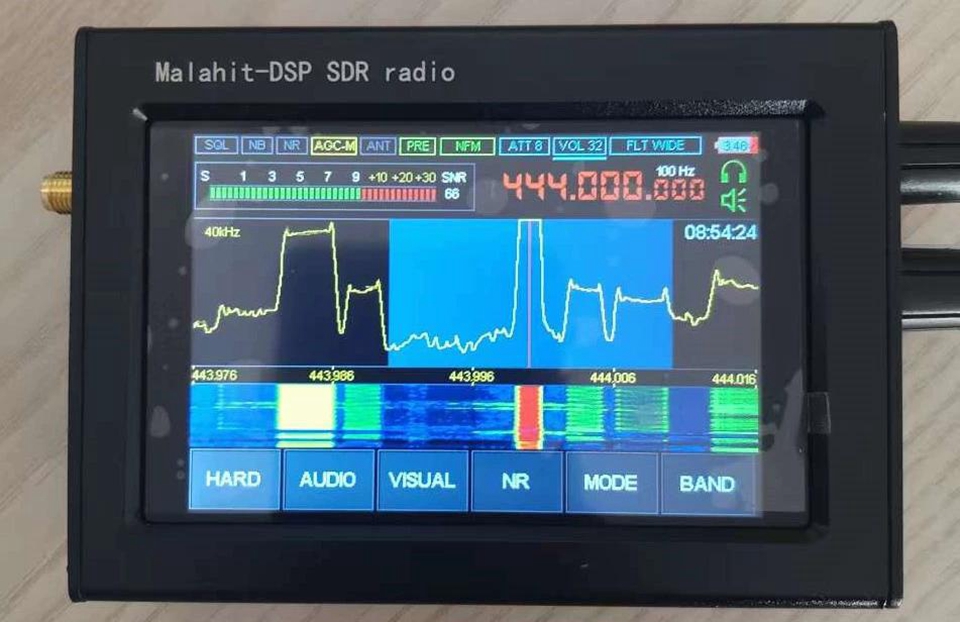

- Improved graphical display of spectrum.
- Improved algorithm optimization and increased display speed, especially in WFM mode.
- Added the function to determine the activation type - only one or three clicks per machine. If PD15 (pin 7 of the reserved field) is open, it is activated with one click. If this pin is closed to a common wire, open it by clicking three times.

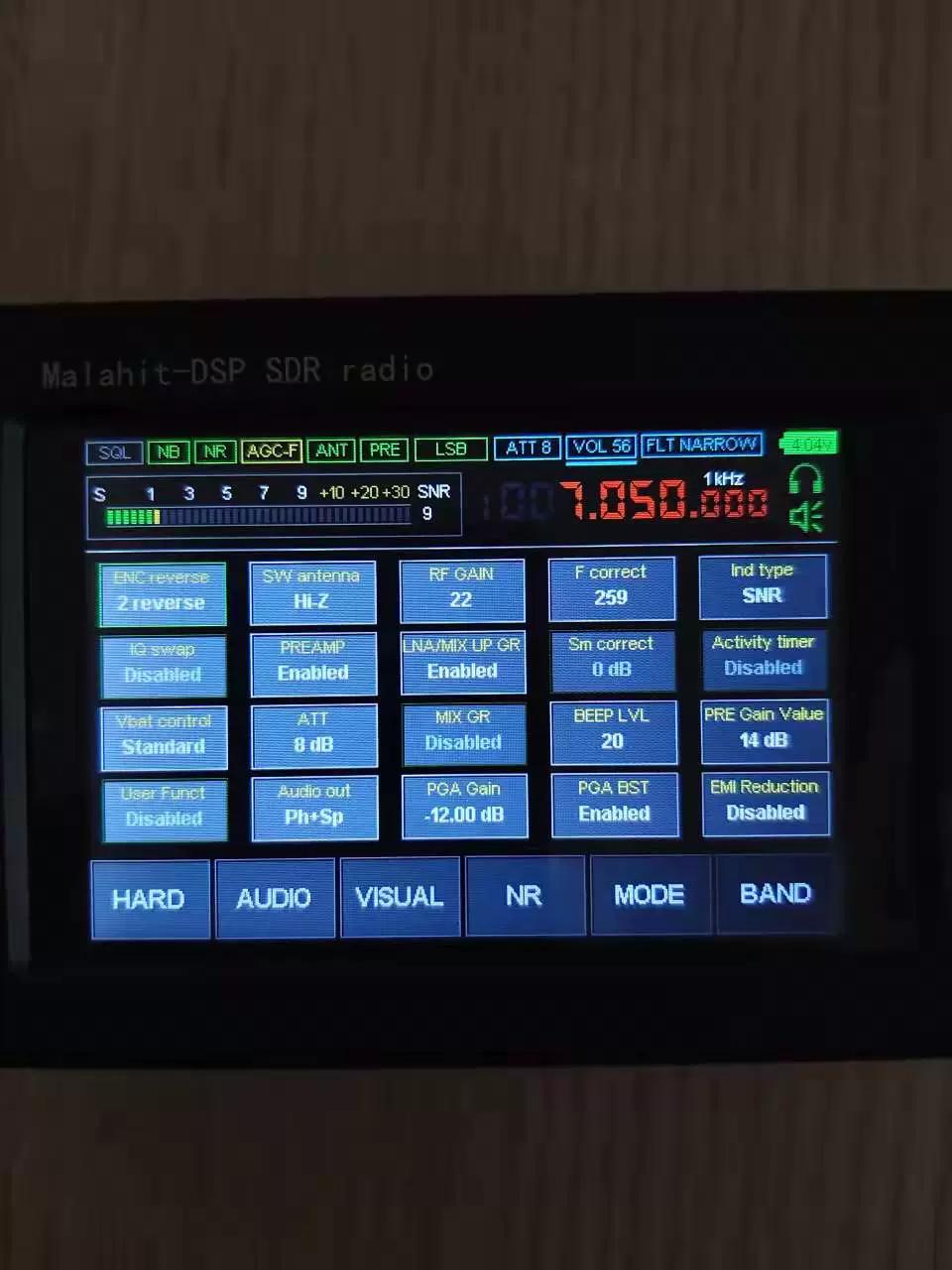

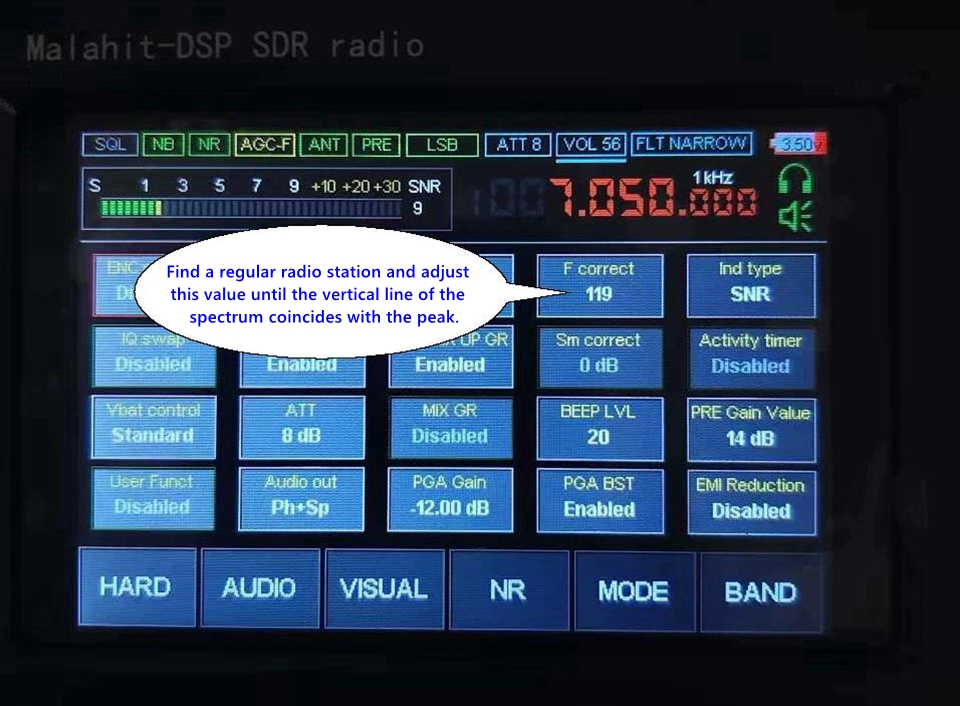

- Improved HARD menu.
- Improved battery indication - voltage displayed at the top of the image.
- Added the use of discrete signal PD14 (pin 8 of reserved field) to control user device functionality.
- The button for switching audio output has been added to the HARD menu, and it has copied the audio output switch.

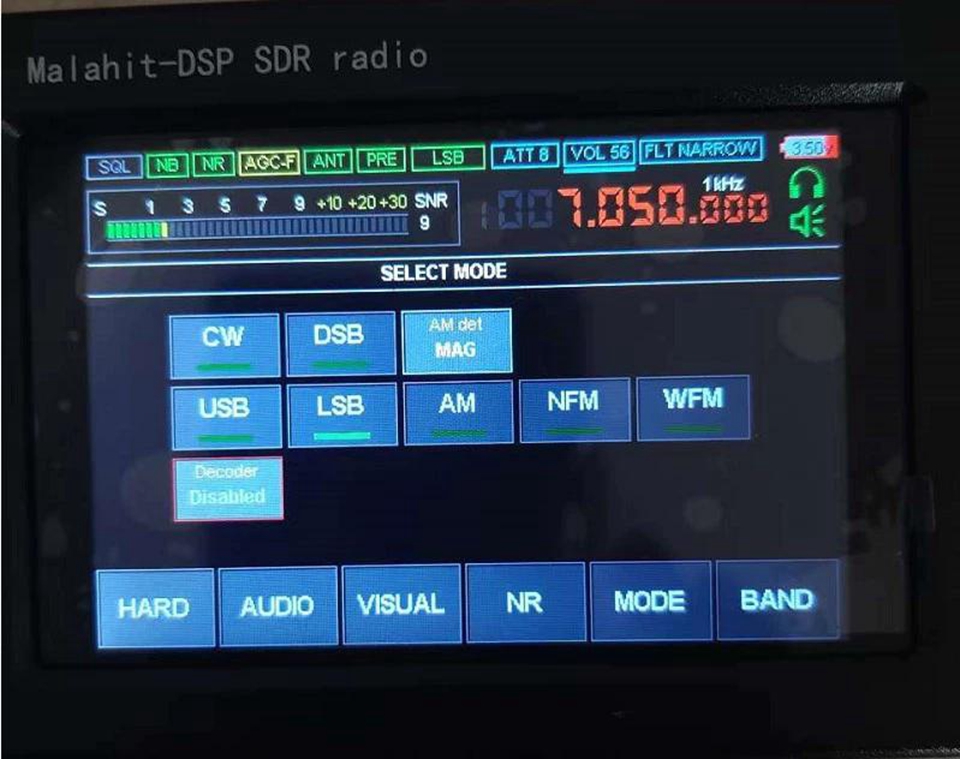

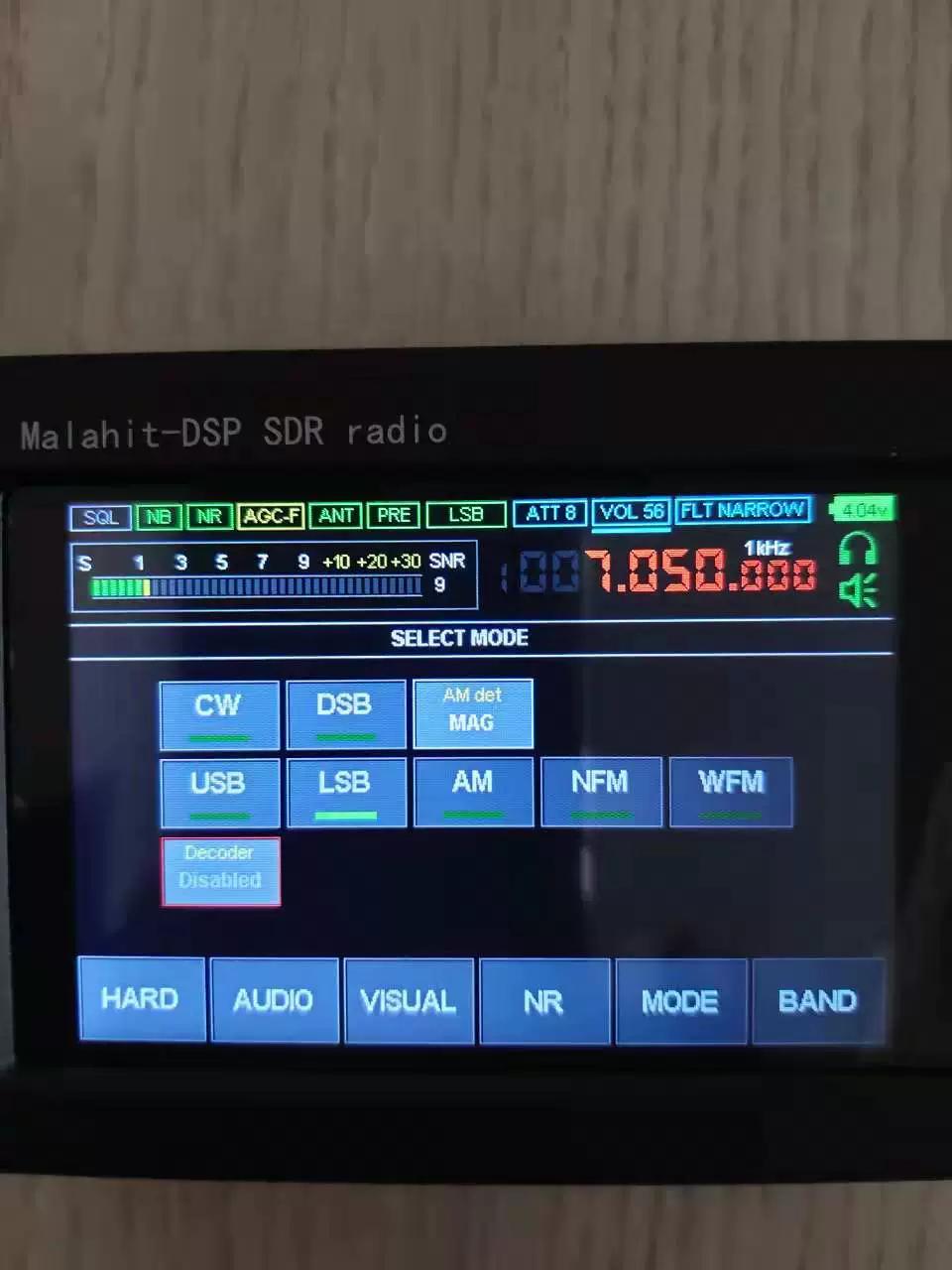

- Added SAM-U and SAM-L modes.
- Added project settings to the HARD menu.
- Added automatic notch filter in AM mode.
- Added save of type “recover ratio”.
- Changed the management of high-frequency filters at the receiver input end.
- Corrected errors during frequency tuning process.
- Fixed an error in automatic radio search in FM mode.
- Additional pseudo stereo function.
- Added "CCIR/JAPAN" reverse scaling band selector in the audio menu.
- Retroscale has been added for the Japanese VHF FM frequency band 76.1 MHz to 94.9 MHz, and 6 presets have been added for different regions in Japan, with the consent of Japanese users.
- Fixed an error that occurred when canceling the automatic station search mode and exiting the automatic search without saving the found stations (refusing to save the found stations). In previous versions, in these cases, all stations located on the scale before the automatic search started were deleted and the scale became empty. Now, in these cases, the original proportion can be restored.
- Changed the design of automatic search for conventional terminals, added frequency tables for discovered stations, and added information about undiscovered stations or the number of discovered stations.
- Automatic search no longer relies on the activation output status of stereo mode and speakers and headphones. It operates in any combination of states, and after the search is completed, the original state of stereo mode will be restored.
- In certain positions on the edit menu, the scaling ratio of the cancel key name is changed to exit because they are closer in the meaning of the operation being performed.
- Added a limit on the number of stations on Retroskale - 69 in the CCIR frequency band and 63 in Japan - as the maximum number of adjacent stations spaced at 300kHz or above.
- Fixed a minor error in previous versions related to retaining scale colors and saving step size types for each scale (50kHz/next step).
- Weight: 350g
- Packaging size: 23 x 11.5 x 5cm
- Built-in battery: 2500mA

Previous Version Features:
- 3.5 inch capacitive touch screen.
- Adopting a sound generating unit with 2 chambers, the speaker comes with its own chamber, and the bass sound quality is excellent.
- Malachite DSP SDR receiver.
- Flash memory via USB cable.
- Default frequency range: 50KHz-250MHz, 400MHz-2000MHz.

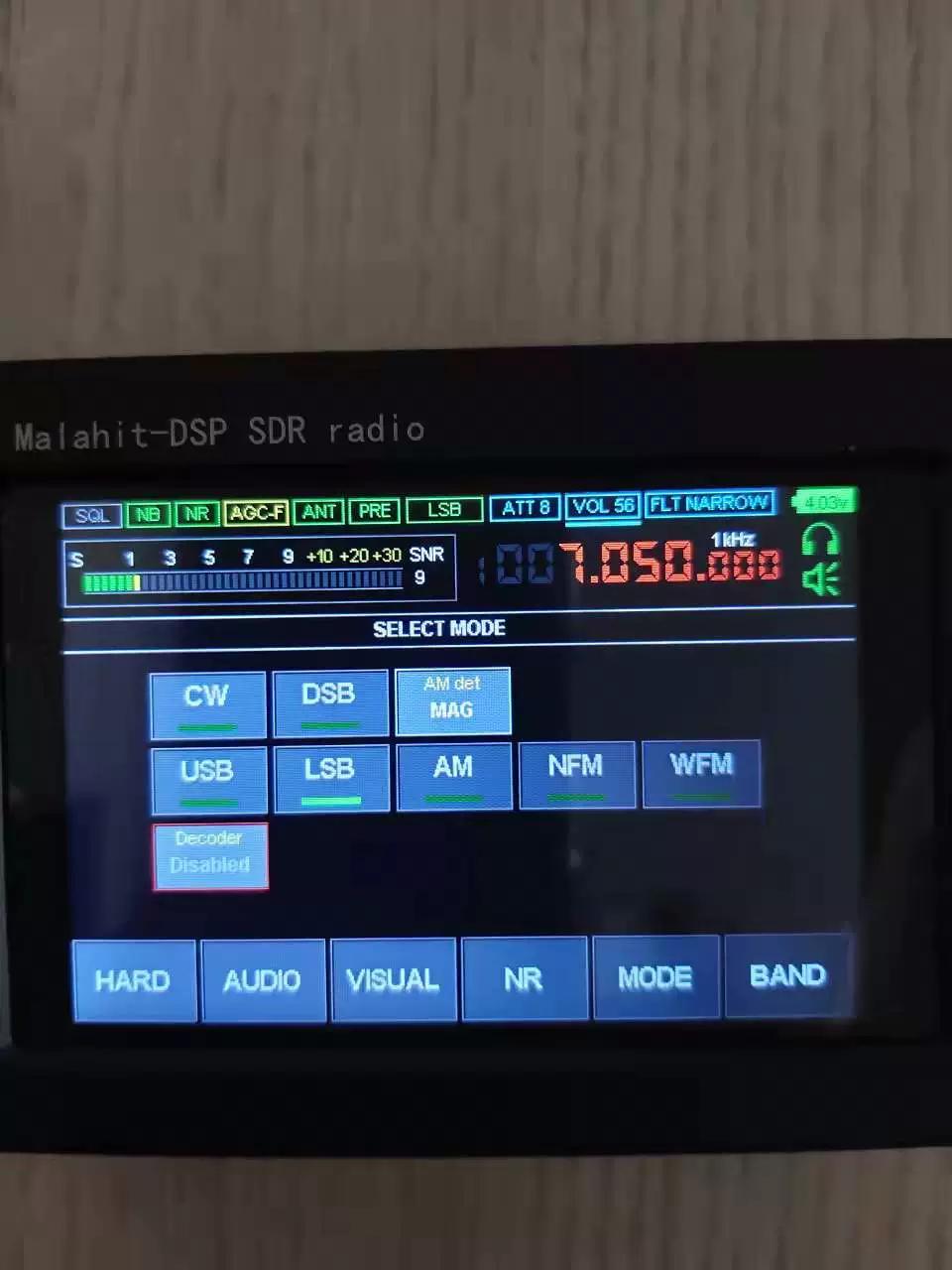

- Demodulation mode: AM, SSB, NFM, WFM.
- The radio is constructed based on SDR principle, and its functions are determined by loaded software.
- The frequency range is 50KHz-200 MHz (without registration code) or 400MHz-2GHz (with registration code).
- All types of analog modulation: AM, SSB, NFM, WFM.

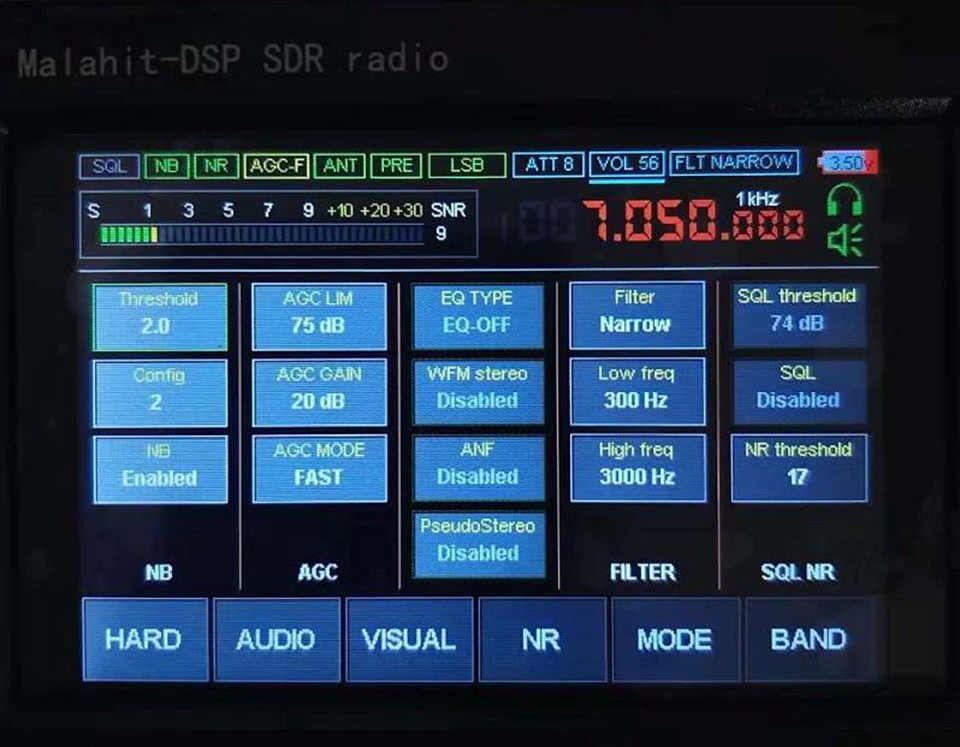

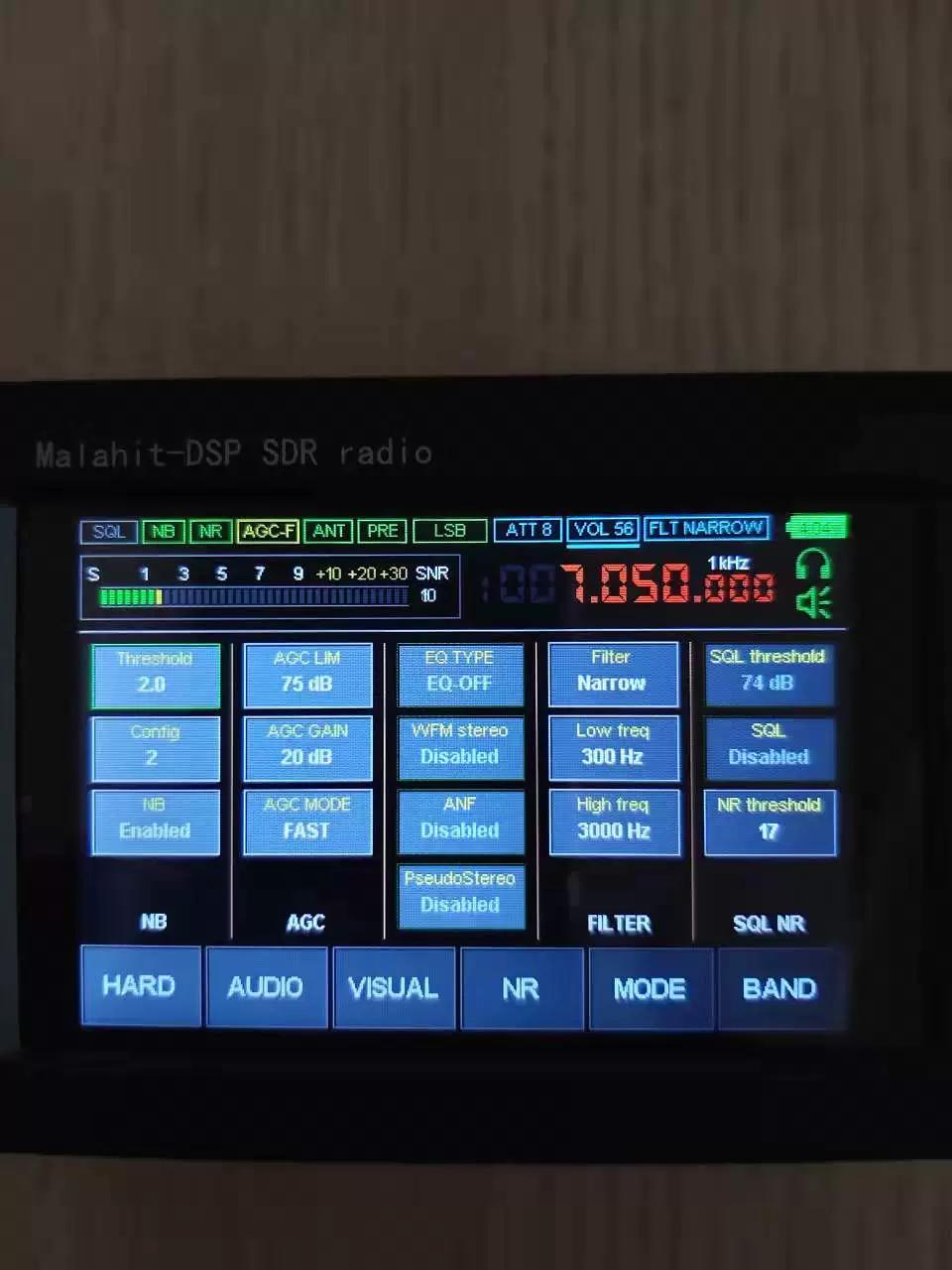

- Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker, AGC, equalizer.
- Fully functional chip msi001 is used.
- The clock frequency of stm32h743 is 480MHz.
- With touch screen: 3.5-inch IPS display.
- There is a built-in UHF.
- Control: 2 encoders with buttons and a touch screen
- It is powered by an external TYPE-C (for Huawei mobile phone) interface and can be charged by TYPE-C. The internal battery voltage is 3.7V and the capacity is 2500mAh.
- Current consumption when listening to headphones is 300mA.
- Built-in receiving module improves the HF reception on antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design.
- Connecting to a computer via USB, it can transmit CAT, IQ and audio.
- 160kHz span, with scalability.
- Sensitivity is 0.3μV = 10dB at s/w under the condition of up to 250MHz.
- Due to the characteristics of the msi001 chip used, dynamic blocking range is about 85dB.
- There is backlight control.
- SMA female antenna socket.
- Dimensions: 102 x 74 x 29mm (excluding the sizes of protrusions)
- Weight: 240g

How to operate the cracked version:
- https://www.ixigua.com/6897837602494382600/

Actual measurement of receiving FM radio stations, HAM radio stations, and aviation radio stations:
- https://www.ixigua.com/6898129222452118019/

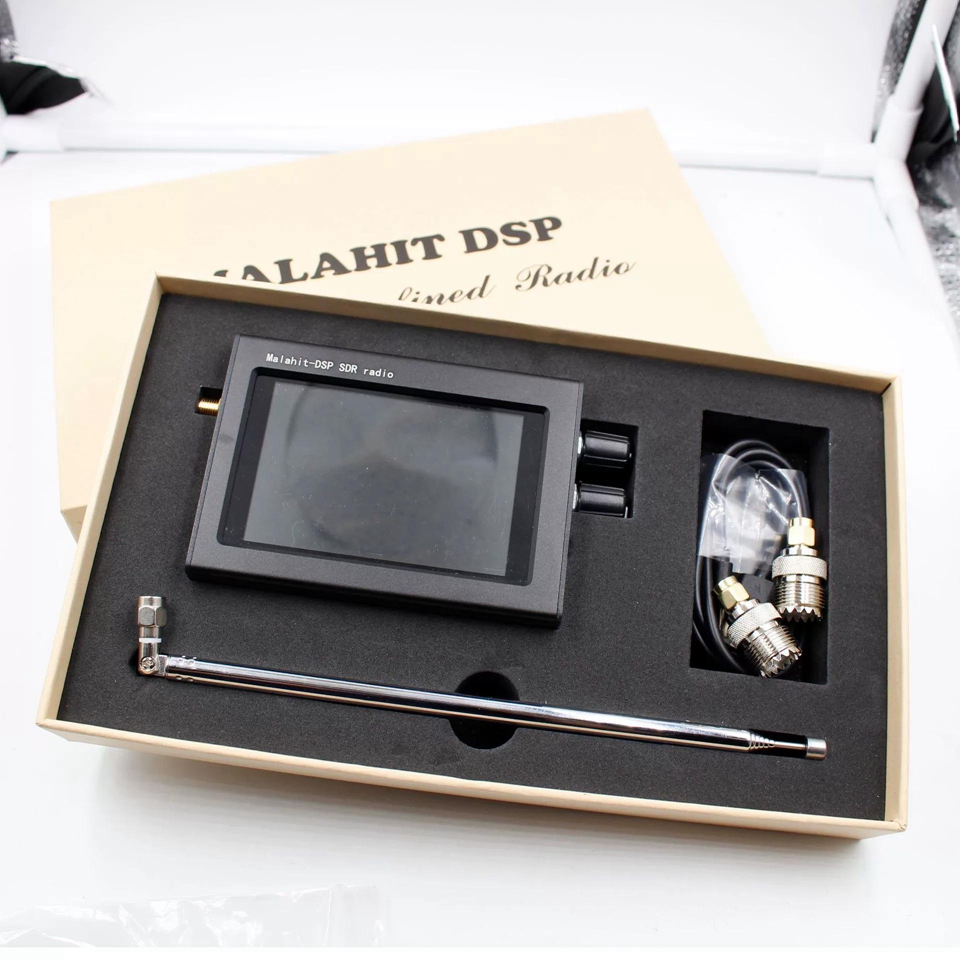

Package Included:
- 1 x Malachite SDR Receiver
- 1 x Antenna
- 1 x Cable

Note:
- It is assembled.
- Its motherboard can be powered by a mobile phone TYPE-C charger for Huawei. Users can configure their own long wires as antennas for easy listening.

Disclaimer:
- Users should not upgrade without authorization, otherwise the crack will become invalid and they will need to purchase a new registration code to use it properly. The registration code requires extra 50 dollars, so remember not to upgrade without authorization! Otherwise, the seller shall not bear the losses caused by this occasion.
