NEW BEE FLY RF Master RF Power Meter with Built-in 30dBm Attenuator (without External Attenuator)
Description:
The RF Master is used to measure RF power. The most common application is to measure the output power of a video wireless transmission module or a data wireless transmission module. It is portable and has a built-in battery, requiring no additional power supply. Easy to control, without secondary menu. It can output the results to your PC through a USB-C cable. And the results can be easily graphed with PC software.
Features:
- With a built-in 30dBm attenuator supporting automatic switching, it enables a wider measurement range
- Supports an external attenuator (optional)
- Easy to operate, without secondary menu
- OLED screen with high brightness and high refresh rate
- RF power sampling rate is up to 1000Hz
- Built-in lithium battery can be charged via USB-C port
- Output data to your PC via USB-C port
- RF master with an aluminum alloy shell
Specifications:
- Measuring power range of RF Master: -55dBm to 30dBm
- OLED: Resolution is 128x64 and the maximum refresh rate is 100Hz
- Battery: 3.7V 400mAh Lipo battery
- USB charging: 5V 1A
- Size: 59mm x 26mm x 16mm/2.3" x 1" x 0.6"

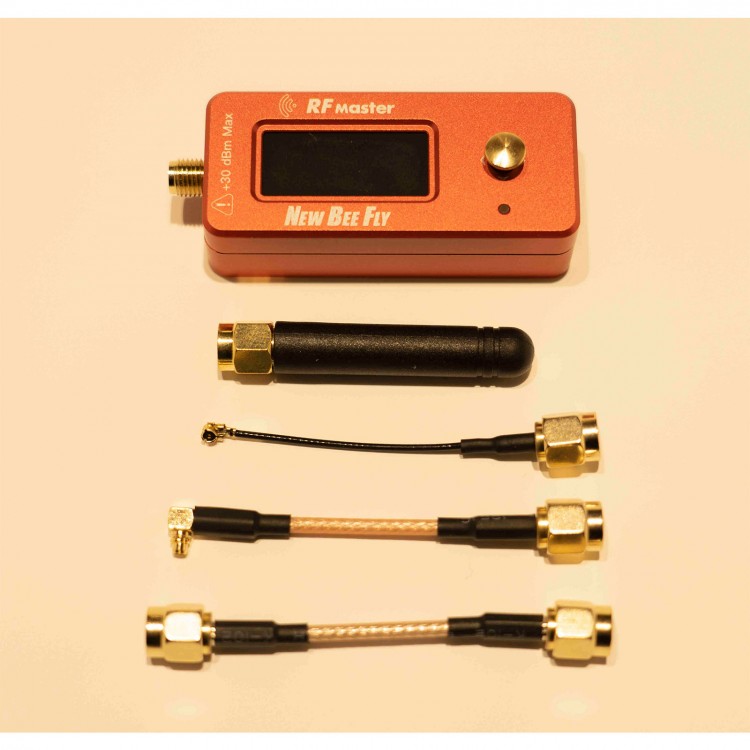

Package Included (without External Attenuator):
- 1 x RF master
- 1 x 5G antenna
- 1 x 5cm/2" adapter cable SMA to SMA
- 1 x 5cm/2" adapter cable SMA to MMCX
- 1 x 5cm/2" adapter cable SMA to IPEX 1
Packaging Details (without External Attenuator):
- Weight: 0.3kg
Note:
- Please charge it with an adapter supporting 5V 1A.
